Ratings table for the KMG product category

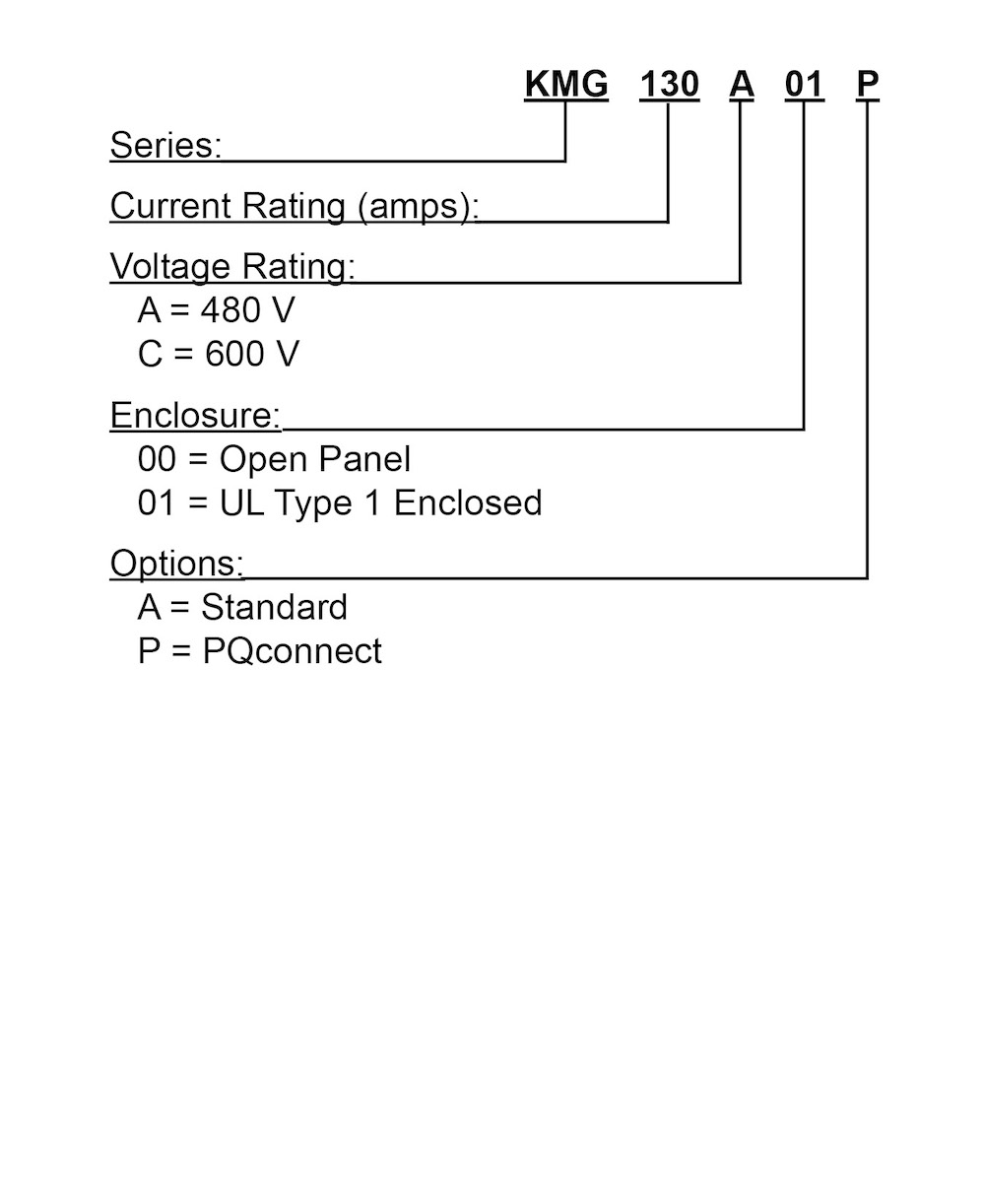

| Horsepower (HP) | SKU (Part Number) | Drawing | Schematic | Amps | Height (in) | Width (in) | Depth (in) | Weight (lbs) | Watts Loss |
|---|---|---|---|---|---|---|---|---|---|
| 5.0 | KMG8A01P | PDF DXF | PDF DXF | 8 | 31.65 | 17.74 | 12.54 | 110.0 | 300.0 |
| 5.0 | KMG8C00P | PDF DXF | PDF DXF | 8 | 30.75 | 17.0 | 11.75 | 62.0 | 400.0 |
| 5.0 | KMG8C01P | PDF DXF | PDF DXF | 8 | 31.4 | 17.5 | 11.8 | 117.0 | 400.0 |
| 60.0 | KMG80A00P | PDF DXF | PDF DXF | 80 | 56.0 | 17.0 | 13.42 | 179.0 | 1550.0 |
| 60.0 | KMG80A01P | PDF DXF | PDF DXF | 80 | 56.26 | 17.66 | 16.48 | 260.0 | 1550.0 |
| 75.0 | KMG80C00P | PDF DXF | PDF DXF | 80 | 56.0 | 17.0 | 11.8 | 197.0 | 1650.0 |
| 75.0 | KMG80C01P | PDF DXF | PDF DXF | 80 | 56.3 | 17.7 | 16.4 | 264.0 | 1650.0 |
| 5.0 | KMG8A00P | PDF DXF | PDF DXF | 8 | 30.75 | 17.22 | 9.0 | 60.0 | 300.0 |
| 50.0 | KMG65A01P | PDF DXF | PDF DXF | 65 | 56.26 | 17.66 | 16.48 | 245.0 | 1100.0 |
| 60.0 | KMG65C00P | PDF DXF | PDF DXF | 65 | 56.0 | 17.0 | 11.8 | 177.0 | 1600.0 |
| 60.0 | KMG65C01P | PDF DXF | PDF DXF | 65 | 56.3 | 17.7 | 13.6 | 264.0 | 1600.0 |
| 600.0 | KMG750A00P | PDF DXF | PDF DXF | 750 | 60.0 | 32.0 | 18.25 | 765.0 | 8800.0 |
| 600.0 | KMG750A01P | PDF DXF | PDF DXF | 750 | 78.5 | 36.0 | 26.69 | 1089.0 | 8800.0 |
| 500.0 | KMG600A00P | PDF DXF | PDF DXF | 600 | 60.0 | 32.0 | 17.5 | 685.0 | 7350.0 |
| 500.0 | KMG600A01P | PDF DXF | PDF DXF | 600 | 78.5 | 36.0 | 26.69 | 980.0 | 7350.0 |
| 600.0 | KMG600C00P | PDF DXF | PDF DXF | 600 | 60.0 | 32.0 | 16.0 | 752.0 | 9000.0 |
| 600.0 | KMG600C01P | PDF DXF | PDF DXF | 600 | 76.5 | 36.0 | 24.0 | 1015.0 | 9000.0 |
| 50.0 | KMG65A00P | PDF DXF | PDF DXF | 65 | 56.0 | 17.0 | 11.75 | 164.0 | 1100.0 |
| 500.0 | KMG500C01P | PDF DXF | PDF DXF | 500 | 76.5 | 36.0 | 24.0 | 1015.0 | 7900.0 |
| 40.0 | KMG55A00P | PDF DXF | PDF DXF | 55 | 30.75 | 17.22 | 11.75 | 115.0 | 1000.0 |
| 40.0 | KMG55A01P | PDF DXF | PDF DXF | 55 | 31.65 | 17.74 | 12.54 | 170.0 | 1000.0 |
| 50.0 | KMG55C00P | PDF DXF | PDF DXF | 55 | 56.0 | 17.0 | 11.8 | 162.0 | 1200.0 |
| 50.0 | KMG55C01P | PDF DXF | PDF DXF | 55 | 56.0 | 17.5 | 11.8 | 261.0 | 1200.0 |
| 40.0 | KMG45C00P | PDF DXF | PDF DXF | 45 | 30.75 | 17.0 | 11.75 | 107.0 | 950.0 |
| 40.0 | KMG45C01P | PDF DXF | PDF DXF | 45 | 31.4 | 17.5 | 11.8 | 176.0 | 950.0 |
| 400.0 | KMG480A00P | PDF DXF | PDF DXF | 480 | 60.0 | 32.0 | 17.25 | 640.0 | 6050.0 |
| 400.0 | KMG480A01P | PDF DXF | PDF DXF | 480 | 78.5 | 36.0 | 26.69 | 975.0 | 6050.0 |
| 500.0 | KMG500C00P | PDF DXF | PDF DXF | 500 | 60.0 | 32.0 | 16.0 | 6478.0 | 7900.0 |
| 350.0 | KMG420A01P | PDF DXF | PDF DXF | 420 | 78.5 | 36.0 | 26.69 | 920.0 | 5400.0 |
| 400.0 | KMG420C00P | PDF DXF | PDF DXF | 420 | 60.0 | 32.0 | 14.8 | 637.0 | 6900.0 |
| 400.0 | KMG420C01P | PDF DXF | PDF DXF | 420 | 76.5 | 36.0 | 24.0 | 977.0 | 6900.0 |
| 30.0 | KMG45A00P | PDF DXF | PDF DXF | 45 | 30.75 | 17.22 | 11.75 | 100.0 | 850.0 |
| 30.0 | KMG45A01P | PDF DXF | PDF DXF | 45 | 31.65 | 17.74 | 12.54 | 155.0 | 850.0 |
| 300.0 | KMG362A00P | PDF DXF | PDF DXF | 362 | 60.0 | 32.0 | 16.85 | 480.0 | 4650.0 |
| 300.0 | KMG362A01P | PDF DXF | PDF DXF | 362 | 78.5 | 36.0 | 26.69 | 804.0 | 4650.0 |
| 350.0 | KMG362C00P | PDF DXF | PDF DXF | 362 | 60.0 | 32.0 | 14.8 | 582.0 | 6100.0 |
| 350.0 | KMG362C01P | PDF DXF | PDF DXF | 362 | 76.5 | 36.0 | 24.0 | 977.0 | 6100.0 |
| 350.0 | KMG420A00P | PDF DXF | PDF DXF | 420 | 60.0 | 32.0 | 17.25 | 585.0 | 5400.0 |
| 20.0 | KMG30A01P | PDF DXF | PDF DXF | 30 | 31.65 | 17.74 | 12.54 | 140.0 | 650.0 |
| 25.0 | KMG35A00P | PDF DXF | PDF DXF | 35 | 30.75 | 17.22 | 11.75 | 85.0 | 750.0 |
| 25.0 | KMG35A01P | PDF DXF | PDF DXF | 35 | 31.65 | 17.74 | 12.54 | 140.0 | 750.0 |
| 30.0 | KMG35C00P | PDF DXF | PDF DXF | 35 | 30.75 | 17.0 | 11.75 | 102.0 | 800.0 |
| 30.0 | KMG35C01P | PDF DXF | PDF DXF | 35 | 31.4 | 17.5 | 11.8 | 156.0 | 800.0 |
| 250.0 | KMG305A00P | PDF DXF | PDF DXF | 305 | 60.0 | 32.0 | 16.75 | 465.0 | 4700.0 |
| 250.0 | KMG305A01P | PDF DXF | PDF DXF | 305 | 78.5 | 36.0 | 26.69 | 794.0 | 4700.0 |
| 300.0 | KMG305C00P | PDF DXF | PDF DXF | 305 | 60.0 | 32.0 | 14.8 | 477.0 | 5100.0 |
| 300.0 | KMG305C01P | PDF DXF | PDF DXF | 305 | 78.5 | 36.0 | 27.0 | 780.0 | 5100.0 |
| 20.0 | KMG30A00P | PDF DXF | PDF DXF | 30 | 30.75 | 17.22 | 11.75 | 85.0 | 650.0 |
| 250.0 | KMG250C01P | PDF DXF | PDF DXF | 250 | 78.5 | 36.0 | 27.0 | 778.0 | 4500.0 |
| 20.0 | KMG25C00P | PDF DXF | PDF DXF | 25 | 30.75 | 17.0 | 11.75 | 87.0 | 700.0 |
| 20.0 | KMG25C01P | PDF DXF | PDF DXF | 25 | 31.4 | 17.5 | 11.8 | 141.0 | 700.0 |
| 25.0 | KMG28C00P | PDF DXF | PDF DXF | 28 | 30.75 | 17.0 | 11.75 | 93.0 | 750.0 |
| 25.0 | KMG28C01P | PDF DXF | PDF DXF | 28 | 31.4 | 17.5 | 11.8 | 146.0 | 750.0 |
| 15.0 | KMG23A00P | PDF DXF | PDF DXF | 23 | 30.75 | 17.22 | 11.75 | 75.0 | 550.0 |
| 15.0 | KMG23A01P | PDF DXF | PDF DXF | 23 | 31.65 | 17.74 | 12.54 | 125.0 | 550.0 |
| 200.0 | KMG250A00P | PDF DXF | PDF DXF | 250 | 60.0 | 32.0 | 16.8 | 465.0 | 3700.0 |
| 200.0 | KMG250A01P | PDF DXF | PDF DXF | 250 | 78.5 | 36.0 | 26.69 | 774.0 | 3700.0 |
| 250.0 | KMG250C00P | PDF DXF | PDF DXF | 250 | 60.0 | 32.0 | 14.8 | 462.0 | 4500.0 |
| 150.0 | KMG200A01P | PDF DXF | PDF DXF | 200 | 56.26 | 17.66 | 16.48 | 345.0 | 3300.0 |
| 200.0 | KMG200C00P | PDF DXF | PDF DXF | 200 | 60.0 | 32.0 | 14.8 | 452.0 | 3500.0 |
| 200.0 | KMG200C01P | PDF DXF | PDF DXF | 200 | 78.5 | 36.0 | 27.0 | 773.0 | 3500.0 |
| 15.0 | KMG20C00P | PDF DXF | PDF DXF | 20 | 30.75 | 17.0 | 11.75 | 77.0 | 550.0 |
| 15.0 | KMG20C01P | PDF DXF | PDF DXF | 20 | 31.4 | 17.5 | 11.8 | 136.0 | 550.0 |
| 150.0 | KMG160C00P | PDF DXF | PDF DXF | 160 | 56.0 | 17.0 | 14.8 | 262.0 | 2500.0 |
| 150.0 | KMG160C01P | PDF DXF | PDF DXF | 160 | 56.3 | 17.7 | 13.8 | 339.0 | 2500.0 |
| 10.0 | KMG16A00P | PDF DXF | PDF DXF | 16 | 30.75 | 17.22 | 11.75 | 70.0 | 400.0 |
| 10.0 | KMG16A01P | PDF DXF | PDF DXF | 16 | 31.65 | 17.74 | 12.54 | 120.0 | 400.0 |
| 150.0 | KMG200A00P | PDF DXF | PDF DXF | 200 | 56.0 | 17.0 | 13.7 | 260.0 | 3300.0 |
| 100.0 | KMG130A01P | PDF DXF | PDF DXF | 130 | 56.26 | 17.66 | 16.48 | 301.0 | 2050.0 |
| 125.0 | KMG130C00P | PDF DXF | PDF DXF | 130 | 56.0 | 17.0 | 11.8 | 252.0 | 2300.0 |
| 125.0 | KMG130C01P | PDF DXF | PDF DXF | 130 | 56.3 | 17.7 | 13.6 | 294.0 | 2300.0 |
| 125.0 | KMG160A00P | PDF DXF | PDF DXF | 160 | 56.0 | 17.0 | 13.72 | 255.0 | 2450.0 |
| 125.0 | KMG160A01P | PDF DXF | PDF DXF | 160 | 56.26 | 17.66 | 16.48 | 340.0 | 2450.0 |
| 7.5 | KMG12A00P | PDF DXF | PDF DXF | 12 | 30.75 | 17.22 | 11.75 | 60.0 | 350.0 |
| 7.5 | KMG12A01P | PDF DXF | PDF DXF | 12 | 31.65 | 17.74 | 12.54 | 110.0 | 350.0 |
| 10.0 | KMG12C00P | PDF DXF | PDF DXF | 12 | 30.75 | 17.0 | 11.75 | 72.0 | 400.0 |
| 10.0 | KMG12C01P | PDF DXF | PDF DXF | 12 | 31.4 | 17.5 | 11.8 | 121.0 | 400.0 |
| 100.0 | KMG130A00P | PDF DXF | PDF DXF | 130 | 56.0 | 17.0 | 13.64 | 205.0 | 2050.0 |
| 7.5 | KMG10C01P | PDF DXF | PDF DXF | 10 | 31.4 | 17.5 | 11.8 | 117.0 | 400.0 |
| 75.0 | KMG110A00P | PDF DXF | PDF DXF | 110 | 56.0 | 17.0 | 13.64 | 200.0 | 1700.0 |
| 75.0 | KMG110A01P | PDF DXF | PDF DXF | 110 | 56.26 | 17.66 | 16.48 | 280.0 | 1700.0 |
| 100.0 | KMG110C00P | PDF DXF | PDF DXF | 110 | 56.0 | 17.0 | 14.0 | 227.0 | 2250.0 |
| 100.0 | KMG110C01P | PDF DXF | PDF DXF | 110 | 56.3 | 17.7 | 13.6 | 290.0 | 2250.0 |
| 7.5 | KMG10C00P | PDF DXF | PDF DXF | 10 | 30.75 | 17.0 | 11.75 | 67.0 | 400.0 |
| 5.0 | KMG8A00A | PDF DXF | PDF DXF | 8 | 30.75 | 17.0 | 9.0 | 59.0 | 300.0 |
| 5.0 | KMG8C00A | PDF DXF | PDF DXF | 8 | 30.75 | 17.0 | 11.75 | 59.0 | 400.0 |
| 5.0 | KMG8C01A | PDF DXF | PDF DXF | 8 | 31.38 | 17.5 | 12.14 | 114.0 | 400.0 |
| 5.0 | KMG8A01A | PDF DXF | PDF DXF | 8 | 31.65 | 17.74 | 12.54 | 109.0 | 300.0 |
| 600.0 | KMG750A01A | PDF DXF | PDF DXF | 750 | 78.5 | 36.0 | 26.69 | 1084.0 | 8800.0 |
| 60.0 | KMG80A00A | PDF DXF | PDF DXF | 80 | 56.0 | 17.0 | 13.42 | 174.0 | 1550.0 |
| 60.0 | KMG80A01A | PDF DXF | PDF DXF | 80 | 56.26 | 17.66 | 16.48 | 259.0 | 1550.0 |
| 75.0 | KMG80C00A | PDF DXF | PDF DXF | 80 | 56.0 | 17.0 | 11.75 | 195.0 | 1650.0 |
| 75.0 | KMG80C01A | PDF DXF | PDF DXF | 80 | 56.0 | 17.52 | 16.4 | 263.0 | 1650.0 |
| 50.0 | KMG65A00A | PDF DXF | PDF DXF | 65 | 56.0 | 17.0 | 11.75 | 159.0 | 1100.0 |
| 50.0 | KMG65A01A | PDF DXF | PDF DXF | 65 | 56.26 | 17.66 | 16.48 | 244.0 | 1100.0 |
| 60.0 | KMG65C00A | PDF DXF | PDF DXF | 65 | 56.0 | 17.0 | 11.75 | 175.0 | 1600.0 |
| 60.0 | KMG65C01A | PDF DXF | PDF DXF | 65 | 56.0 | 17.52 | 16.4 | 263.0 | 1600.0 |
| 600.0 | KMG750A00A | PDF DXF | PDF DXF | 750 | 60.0 | 32.0 | 18.25 | 760.0 | 8800.0 |
| 50.0 | KMG55C01A | PDF DXF | PDF DXF | 55 | 56.0 | 17.52 | 16.4 | 258.0 | 1200.0 |
| 500.0 | KMG600A00A | PDF DXF | PDF DXF | 600 | 60.0 | 32.0 | 17.5 | 680.0 | 7350.0 |
| 500.0 | KMG600A01A | PDF DXF | PDF DXF | 600 | 78.5 | 36.0 | 26.69 | 975.0 | 7350.0 |
| 600.0 | KMG600C00A | PDF DXF | PDF DXF | 600 | 60.0 | 32.0 | 16.0 | 750.0 | 9000.0 |
| 600.0 | KMG600C01A | PDF DXF | PDF DXF | 600 | 76.5 | 36.0 | 24.0 | 1012.0 | 9000.0 |
| 500.0 | KMG500C00A | PDF DXF | PDF DXF | 500 | 60.0 | 32.0 | 16.0 | 645.0 | 7900.0 |
| 500.0 | KMG500C01A | PDF DXF | PDF DXF | 500 | 76.5 | 36.0 | 24.0 | 1012.0 | 7900.0 |
| 40.0 | KMG55A00A | PDF DXF | PDF DXF | 55 | 30.75 | 17.0 | 11.75 | 114.0 | 1000.0 |
| 40.0 | KMG55A01A | PDF DXF | PDF DXF | 55 | 31.65 | 17.74 | 12.54 | 169.0 | 1000.0 |
| 50.0 | KMG55C00A | PDF DXF | PDF DXF | 55 | 56.0 | 17.0 | 11.75 | 160.0 | 1200.0 |
| 30.0 | KMG45A01A | PDF DXF | PDF DXF | 45 | 31.65 | 17.74 | 12.54 | 154.0 | 850.0 |
| 40.0 | KMG45C00A | PDF DXF | PDF DXF | 45 | 30.75 | 17.0 | 11.75 | 114.0 | 950.0 |
| 40.0 | KMG45C01A | PDF DXF | PDF DXF | 45 | 31.38 | 17.5 | 12.14 | 173.0 | 950.0 |
| 400.0 | KMG480A00A | PDF DXF | PDF DXF | 480 | 60.0 | 32.0 | 17.25 | 635.0 | 6050.0 |
| 400.0 | KMG480A01A | PDF DXF | PDF DXF | 480 | 78.5 | 36.0 | 26.69 | 970.0 | 6050.0 |
| 350.0 | KMG420A00A | PDF DXF | PDF DXF | 420 | 60.0 | 32.0 | 17.25 | 580.0 | 5400.0 |
| 350.0 | KMG420A01A | PDF DXF | PDF DXF | 420 | 78.5 | 36.0 | 26.69 | 915.0 | 5400.0 |
| 400.0 | KMG420C00A | PDF DXF | PDF DXF | 420 | 60.0 | 32.0 | 14.75 | 635.0 | 6900.0 |
| 400.0 | KMG420C01A | PDF DXF | PDF DXF | 420 | 76.5 | 36.0 | 24.0 | 975.0 | 6900.0 |
| 30.0 | KMG45A00A | PDF DXF | PDF DXF | 45 | 30.75 | 17.0 | 11.75 | 99.0 | 850.0 |
| 30.0 | KMG35C01A | PDF DXF | PDF DXF | 35 | 31.38 | 17.5 | 12.14 | 153.0 | 800.0 |
| 300.0 | KMG362A00A | PDF DXF | PDF DXF | 362 | 60.0 | 32.0 | 16.85 | 475.0 | 4650.0 |
| 300.0 | KMG362A01A | PDF DXF | PDF DXF | 362 | 78.5 | 36.0 | 26.69 | 799.0 | 4650.0 |
| 350.0 | KMG362C00A | PDF DXF | PDF DXF | 362 | 60.0 | 32.0 | 14.75 | 580.0 | 6100.0 |
| 350.0 | KMG362C01A | PDF DXF | PDF DXF | 362 | 76.5 | 36.0 | 24.0 | 975.0 | 6100.0 |
| 20.0 | KMG30A00A | PDF DXF | PDF DXF | 30 | 30.75 | 17.0 | 11.75 | 84.0 | 650.0 |
| 20.0 | KMG30A01A | PDF DXF | PDF DXF | 30 | 31.65 | 17.74 | 12.54 | 139.0 | 650.0 |
| 25.0 | KMG35A00A | PDF DXF | PDF DXF | 35 | 30.75 | 17.0 | 11.75 | 84.0 | 750.0 |
| 25.0 | KMG35A01A | PDF DXF | PDF DXF | 35 | 31.65 | 17.74 | 12.54 | 139.0 | 750.0 |
| 30.0 | KMG35C00A | PDF DXF | PDF DXF | 35 | 30.75 | 17.0 | 11.75 | 99.0 | 800.0 |
| 25.0 | KMG28C01A | PDF DXF | PDF DXF | 28 | 31.38 | 17.5 | 12.14 | 143.0 | 750.0 |
| 250.0 | KMG305A00A | PDF DXF | PDF DXF | 305 | 60.0 | 32.0 | 16.75 | 460.0 | 4700.0 |
| 250.0 | KMG305A01A | PDF DXF | PDF DXF | 305 | 78.5 | 36.0 | 26.69 | 789.0 | 4700.0 |
| 300.0 | KMG305C00A | PDF DXF | PDF DXF | 305 | 60.0 | 32.0 | 14.75 | 475.0 | 5100.0 |
| 300.0 | KMG305C01A | PDF DXF | PDF DXF | 305 | 76.5 | 36.0 | 24.0 | 775.0 | 5100.0 |
| 250.0 | KMG250C00A | PDF DXF | PDF DXF | 250 | 60.0 | 32.0 | 14.75 | 460.0 | 4500.0 |
| 250.0 | KMG250C01A | PDF DXF | PDF DXF | 250 | 76.5 | 36.0 | 24.0 | 773.0 | 4500.0 |
| 20.0 | KMG25C00A | PDF DXF | PDF DXF | 25 | 30.75 | 17.0 | 11.75 | 84.0 | 700.0 |
| 20.0 | KMG25C01A | PDF DXF | PDF DXF | 25 | 31.38 | 17.5 | 12.14 | 138.0 | 700.0 |
| 25.0 | KMG28C00A | PDF DXF | PDF DXF | 28 | 30.75 | 17.0 | 11.75 | 89.0 | 750.0 |
| 15.0 | KMG20C01A | PDF DXF | PDF DXF | 20 | 31.38 | 17.5 | 12.14 | 133.0 | 550.0 |
| 15.0 | KMG23A00A | PDF DXF | PDF DXF | 23 | 30.75 | 17.0 | 11.75 | 74.0 | 550.0 |
| 15.0 | KMG23A01A | PDF DXF | PDF DXF | 23 | 31.65 | 17.74 | 12.54 | 124.0 | 550.0 |
| 200.0 | KMG250A00A | PDF DXF | PDF DXF | 250 | 60.0 | 32.0 | 16.75 | 445.0 | 3700.0 |
| 200.0 | KMG250A01A | PDF DXF | PDF DXF | 250 | 78.5 | 36.0 | 26.69 | 769.0 | 3700.0 |
| 150.0 | KMG200A00A | PDF DXF | PDF DXF | 200 | 56.0 | 17.0 | 13.82 | 255.0 | 3300.0 |
| 150.0 | KMG200A01A | PDF DXF | PDF DXF | 200 | 56.26 | 17.66 | 16.48 | 344.0 | 3300.0 |
| 200.0 | KMG200C00A | PDF DXF | PDF DXF | 200 | 60.0 | 32.0 | 14.75 | 450.0 | 3500.0 |
| 200.0 | KMG200C01A | PDF DXF | PDF DXF | 200 | 76.5 | 36.0 | 24.0 | 768.0 | 3500.0 |
| 15.0 | KMG20C00A | PDF DXF | PDF DXF | 20 | 30.75 | 17.0 | 11.75 | 74.0 | 550.0 |
| 125.0 | KMG160A01A | PDF DXF | PDF DXF | 160 | 56.26 | 17.66 | 16.48 | 339.0 | 2450.0 |
| 150.0 | KMG160C00A | PDF DXF | PDF DXF | 160 | 56.0 | 17.0 | 14.78 | 260.0 | 2500.0 |
| 150.0 | KMG160C01A | PDF DXF | PDF DXF | 160 | 56.0 | 17.52 | 16.4 | 338.0 | 2500.0 |
| 10.0 | KMG16A00A | PDF DXF | PDF DXF | 16 | 30.75 | 17.0 | 11.75 | 69.0 | 400.0 |
| 10.0 | KMG16A01A | PDF DXF | PDF DXF | 16 | 31.65 | 17.74 | 12.54 | 119.0 | 400.0 |
| 100.0 | KMG130A00A | PDF DXF | PDF DXF | 130 | 56.0 | 17.0 | 13.64 | 200.0 | 2050.0 |
| 100.0 | KMG130A01A | PDF DXF | PDF DXF | 130 | 56.26 | 17.66 | 16.48 | 300.0 | 2050.0 |
| 125.0 | KMG130C00A | PDF DXF | PDF DXF | 130 | 56.0 | 17.0 | 11.75 | 250.0 | 2300.0 |
| 125.0 | KMG130C01A | PDF DXF | PDF DXF | 130 | 56.0 | 17.52 | 16.4 | 293.0 | 2300.0 |
| 125.0 | KMG160A00A | PDF DXF | PDF DXF | 160 | 56.0 | 17.0 | 13.72 | 250.0 | 2450.0 |
| 100.0 | KMG110C01A | PDF DXF | PDF DXF | 110 | 5.0 | 17.52 | 16.4 | 263.0 | 2250.0 |
| 7.5 | KMG12A01A | PDF DXF | PDF DXF | 12 | 31.65 | 17.74 | 12.54 | 109.0 | 350.0 |
| 10.0 | KMG12C00A | PDF DXF | PDF DXF | 12 | 30.75 | 17.0 | 11.75 | 69.0 | 400.0 |
| 10.0 | KMG12C01A | PDF DXF | PDF DXF | 12 | 31.38 | 17.5 | 12.14 | 118.0 | 400.0 |
| 7.5 | KMG12A00A | PDF DXF | PDF DXF | 12 | 30.75 | 17.0 | 11.75 | 59.0 | 350.0 |
| 7.5 | KMG10C00A | PDF DXF | PDF DXF | 10 | 30.75 | 17.0 | 11.75 | 64.0 | 400.0 |
| 7.5 | KMG10C01A | PDF DXF | PDF DXF | 10 | 31.38 | 17.5 | 12.14 | 114.0 | 400.0 |
| 75.0 | KMG110A00A | PDF DXF | PDF DXF | 110 | 56.0 | 17.0 | 13.64 | 195.0 | 1700.0 |
| 75.0 | KMG110A01A | PDF DXF | PDF DXF | 110 | 56.26 | 17.66 | 16.48 | 279.0 | 1700.0 |
| 100.0 | KMG110C00A | PDF DXF | PDF DXF | 110 | 56.0 | 17.0 | 11.75 | 225.0 | 2250.0 |
