HGA Ratings Table

Product Change Notification

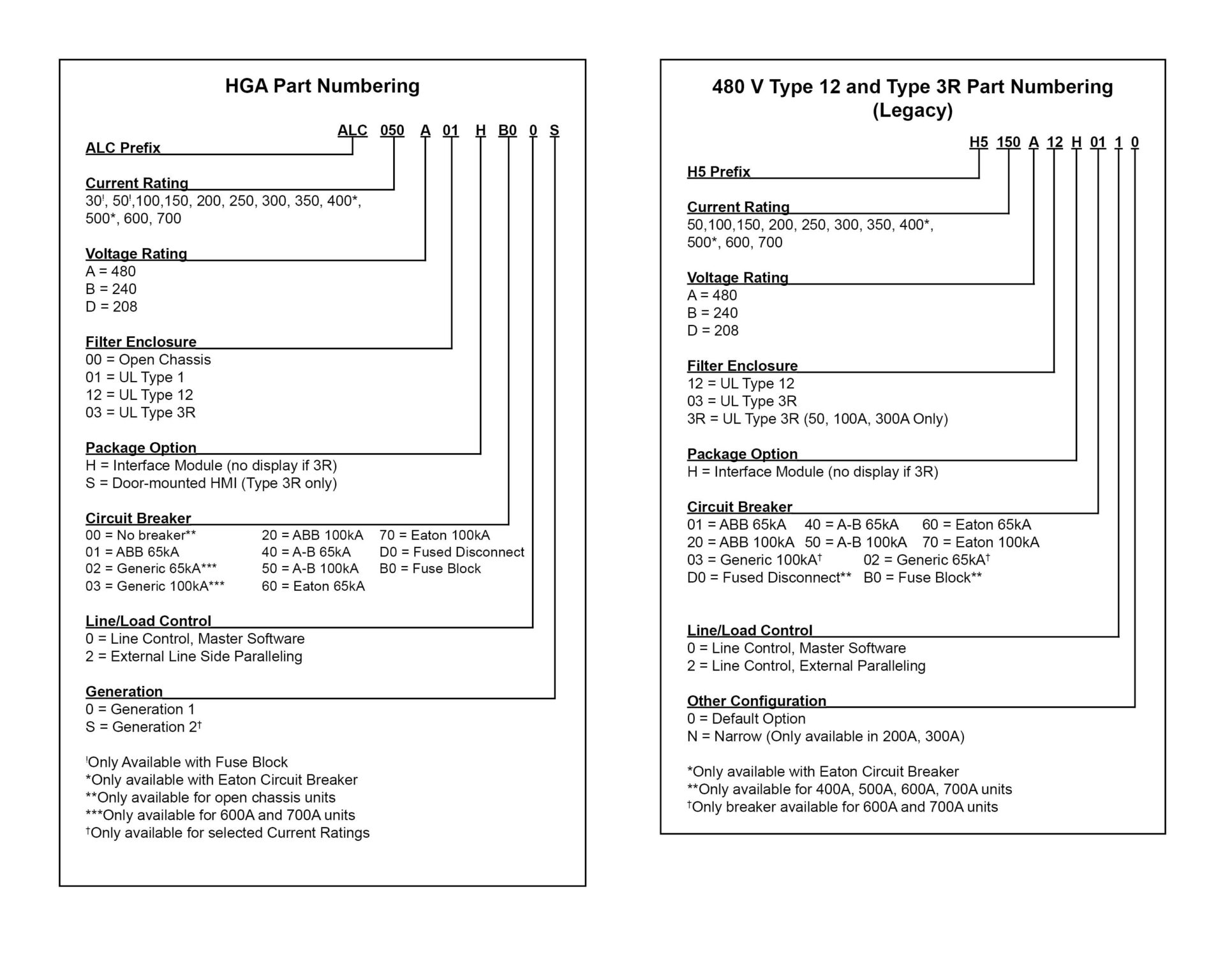

Part Number Structure

Rated Voltage

Enclosure Type

Input Protection

Circuit Breaker Brand

Amps SKU (Part Number) Classification Drawing Schematic Height (in) Width (in) Depth (in) Weight (lbs) Watts Loss
700 H5700A12HD000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 22000.0
700 H5700A03H0200 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 H5700A03H0300 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 H5700A03HD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 H5700A12H0200 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 22000.0
700 H5700A12H0300 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 22000.0
600 H5600A03H0300 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 H5600A03HD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 H5600A12H0200 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18100.0
600 H5600A12H0300 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18100.0
600 H5600A12HD000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18100.0
50 H550A3RH6000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3050.0
50 H550A3RH7000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3050.0
600 H5600A03H0200 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
50 H550A3RH4000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3050.0
50 H550A3RH5000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3050.0
50 H550A12H5000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 H550A12H7000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 H550A3RH0100 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3050.0
50 H550A3RH2000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3050.0
50 H550A12H6000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
500 H5500A12H7000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
500 H5500A12HD000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
50 H550A12H0100 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 H550A12H2000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 H550A12H4000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
500 H5500A03H6000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 H5500A03H7000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
400 H5400A12HD000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 15350.0
500 H5500A03HD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 H5500A12H6000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
400 H5400A03H6000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 H5400A03HD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 H5400A12H6000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 15350.0
400 H5400A03H7000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 H5400A12H7000 Legacy Part PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 15350.0
350 H5350A12H2000 Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 H5350A12H5000 Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 H5350A12H6000 Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 H5350A12H7000 Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 H5350A12H4000 Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 H5350A03H6000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03H7000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03H4000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03H5000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A12H0100 Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
300 H5300A12H500N Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 H5300A12H600N Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 H5300A12H700N Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
350 H5350A03H0100 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03H2000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
300 H5300A03H600N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A12H010N Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 H5300A12H200N Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 H5300A12H400N Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 H5300A03H700N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
250 H5250A12H7000 Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
300 H5300A03H010N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03H200N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03H400N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03H500N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
250 H5250A12H0100 Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 H5250A12H2000 Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 H5250A12H4000 Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 H5250A12H6000 Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 H5250A12H5000 Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 H5250A03H6000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03H7000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03H2000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03H4000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03H5000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03H0100 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
200 H5200A12H400N Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 H5200A12H500N Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 H5200A12H600N Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 H5200A12H700N Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 H5200A03H500N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03H600N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03H700N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A12H010N Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 H5200A12H200N Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 H5200A03H010N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
150 H5150A12H6000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 H5150A12H7000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
200 H5200A03H200N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03H400N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
150 H5150A03H7000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A12H0100 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 H5150A12H2000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 H5150A12H4000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 H5150A12H5000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 H5150A03H6000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03H0100 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03H4000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03H5000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03H2000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
100 H5100A3RH6000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RH7000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RH2000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RH4000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RH5000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RH0100 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A12H4000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 H5100A12H5000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 H5100A12H6000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 H5100A12H7000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 H5100A12H0100 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 H5100A12H2000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
700 ALC700A12HD00S PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
700 ALC700A12H030S PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
700 ALC700A12H020S PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
700 ALC700A01HD000 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
700 ALC700A01HD00S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
700 ALC700A03H020S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 ALC700A03HD00S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 ALC700A03H030S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 ALC700A01H0300 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
700 ALC700A01H0200 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
700 ALC700A01H030S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
700 ALC700A00HD00S PDF DXF PDF DXF 72.3 55.0 20.4 942.0 20000.0
700 ALC700A01H020S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
700 ALC700A00H0200 Legacy Part PDF DXF PDF DXF 72.3 55.0 20.4 942.0 20000.0
700 ALC700A00H0300 Legacy Part PDF DXF PDF DXF 72.3 55.0 20.4 942.0 20000.0
700 ALC700A00HD000 Legacy Part PDF DXF PDF DXF 72.3 55.0 20.4 942.0 20000.0
700 ALC700A00H020S PDF DXF PDF DXF 72.3 55.0 20.4 942.0 20000.0
700 ALC700A00H030S PDF DXF PDF DXF 72.3 55.0 20.4 942.0 20000.0
700 ALC700A00H0000 Legacy Part PDF DXF PDF DXF 72.3 55.0 16.4 942.0 20000.0
600 ALC600A12H030S PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
600 ALC600A12HD00S PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
700 ALC700A00H000S PDF DXF PDF DXF 72.3 55.0 16.4 942.0 20000.0
600 ALC600A12H020S PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
600 ALC600A01HD000 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
600 ALC600A03H030S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 ALC600A01HD00S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
600 ALC600A03H020S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 ALC600A03HD00S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 ALC600A01H0200 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
600 ALC600A01H0300 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
600 ALC600A01H030S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
600 ALC600A01H020S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
600 ALC600A00HD00S PDF DXF PDF DXF 72.3 55.0 20.4 942.0 16100.0
600 ALC600A00H0200 Legacy Part PDF DXF PDF DXF 72.3 55.0 20.4 942.0 16100.0
600 ALC600A00H0300 Legacy Part PDF DXF PDF DXF 72.3 55.0 20.4 942.0 16100.0
600 ALC600A00HD000 Legacy Part PDF DXF PDF DXF 72.3 55.0 20.4 942.0 16100.0
600 ALC600A00H020S PDF DXF PDF DXF 72.3 55.0 20.4 942.0 16100.0
600 ALC600A00H030S PDF DXF PDF DXF 72.3 55.0 20.4 942.0 16100.0
50 ALC50A01H6000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
50 ALC50A01H7000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
600 ALC600A00H0000 Legacy Part PDF DXF PDF DXF 72.3 55.0 16.4 942.0 16100.0
50 ALC50A01HD000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
600 ALC600A00H000S PDF DXF PDF DXF 72.3 55.0 16.4 942.0 16100.0
50 ALC50A00H7000 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
50 ALC50A01H0100 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
50 ALC50A01H2000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
50 ALC50A01H4000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
50 ALC50A01H5000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
50 ALC50A00H6000 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
50 ALC50A00H5000 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
50 ALC50A00H4000 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
50 ALC50A00H2000 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
50 ALC50A00H0100 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
50 ALC50A00H0000 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
500 ALC500A03HD000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 ALC500A12HD000 PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
500 ALC500A12H6000 PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
500 ALC500A12H7000 PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 18850.0
500 ALC500A01H6000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
500 ALC500A01H7000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
500 ALC500A01HD000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
500 ALC500A03H6000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 ALC500A03H7000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 ALC500A00H7000 PDF DXF PDF DXF 72.3 44.0 18.7 798.0 17350.0
500 ALC500A00H0000 PDF DXF PDF DXF 72.3 44.0 16.5 798.0 17350.0
500 ALC500A00HD000 PDF DXF PDF DXF 72.3 44.0 18.7 798.0 17350.0
500 ALC500A00H6000 PDF DXF PDF DXF 72.3 44.0 18.7 798.0 17350.0
400 ALC400A12HD000 PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 15350.0
400 ALC400A03HD000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 ALC400A12H7000 PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 15350.0
400 ALC400A03H6000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 ALC400A03H7000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 ALC400A12H6000 PDF DXF PDF DXF 90.0 72.0 36.0 2382.0 15350.0
400 ALC400A00H7000 PDF DXF PDF DXF 72.3 44.0 18.7 798.0 13850.0
400 ALC400A01H6000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
400 ALC400A01H7000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
400 ALC400A00HD000 PDF DXF PDF DXF 72.3 44.0 18.7 798.0 13850.0
400 ALC400A01HD000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
400 ALC400A00H6000 PDF DXF PDF DXF 72.3 44.0 18.7 798.0 13850.0
400 ALC400A00H0000 PDF DXF PDF DXF 72.3 44.0 16.5 798.0 13850.0
350 ALC350A12H500S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 ALC350A12H700S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 ALC350A12H600S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 ALC350A03H700S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A12H400S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 ALC350A12H200S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 ALC350A12H010S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 ALC350A03H600S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03H200S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03H010S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03H400S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A01H700S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A03H500S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A01H6000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H7000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H5000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H600S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H500S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H2000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H4000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H200S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H010S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H400S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A00H7000 Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A01H0100 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A00HD000 Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H700S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00HD00S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H6000 Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H5000 Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H400S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H600S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H500S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H0100 Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H2000 Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H4000 Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H200S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H010S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 10000.0
350 ALC350A00H0000 Legacy Part PDF DXF PDF DXF 72.3 27.0 14.5 715.0 10000.0
300 ALC300A12H500S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
350 ALC350A00H000S PDF DXF PDF DXF 72.3 27.0 14.5 715.0 10000.0
300 ALC300A12H700S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 ALC300A12H600S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 ALC300A12H200S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 ALC300A03H700S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A12H400S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 ALC300A03H600S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A12H010S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 ALC300A03H500S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A01HD00S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A03H010S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A03H400S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A03H200S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A01H600N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H700N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01HD00N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H600S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H700S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H400N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H500N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H500S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H200S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H400S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A00H700N Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A01H010N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H200N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A00H700S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A01H010S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A00H500N Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H600N Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H600S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H400S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H500S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H010N Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H200N Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H400N Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H010S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H200S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A00H000N Legacy Part PDF DXF PDF DXF 72.3 27.0 14.5 715.0 8000.0
250 ALC250A12H5000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 ALC250A12H7000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
300 ALC300A00H000S PDF DXF PDF DXF 72.3 27.0 14.5 715.0 8000.0
250 ALC250A12H6000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 ALC250A12H0100 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 ALC250A03H6000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A12H4000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 ALC250A03H7000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A12H2000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
250 ALC250A01H7000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
250 ALC250A03H2000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03H4000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03H5000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03H0100 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A01H6000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
250 ALC250A01H0100 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
250 ALC250A01H2000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
250 ALC250A01H4000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
250 ALC250A01H5000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
250 ALC250A00H6000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
250 ALC250A00H7000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
250 ALC250A00H2000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
250 ALC250A00H4000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
250 ALC250A00H5000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
250 ALC250A00H0000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
250 ALC250A00H0100 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
200 ALC200A12H5000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 ALC200A12H7000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 ALC200A12H6000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 ALC200A03H6000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A12H2000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 ALC200A12H0100 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 ALC200A12H4000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 ALC200A03H7000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A01H700N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A03H5000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03H4000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03H2000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03H0100 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A01H500N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H600N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H5000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H6000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H7000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H010N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H200N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H400N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H2000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H4000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A00H600N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H700N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A01H0100 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A00H7000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H6000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H200N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H400N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H500N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H4000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H5000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H000N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H010N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H0100 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H2000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A00H0000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
150 ALC150A12H4000 PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 ALC150A12H2000 PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 ALC150A12H6000 PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 ALC150A12H7000 PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 ALC150A12H5000 PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 ALC150A03H4000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03H6000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03H7000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A12H0100 PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
150 ALC150A03H5000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A01H6000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A01H7000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A01HD000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A03H2000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03H0100 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A01H0100 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A01H2000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A01H4000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A01H5000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A00HD000 PDF DXF PDF DXF 69.1 17.0 14.5 272.0 5250.0
150 ALC150A00H6000 PDF DXF PDF DXF 69.1 17.0 14.5 272.0 5250.0
150 ALC150A00H7000 PDF DXF PDF DXF 69.1 17.0 14.5 272.0 5250.0
150 ALC150A00H2000 PDF DXF PDF DXF 69.1 17.0 14.5 272.0 5250.0
150 ALC150A00H4000 PDF DXF PDF DXF 69.1 17.0 14.5 272.0 5250.0
150 ALC150A00H5000 PDF DXF PDF DXF 69.1 17.0 14.5 272.0 5250.0
150 ALC150A00H0000 PDF DXF PDF DXF 69.1 17.0 14.5 267.0 5250.0
150 ALC150A00H0100 PDF DXF PDF DXF 69.1 17.0 14.5 272.0 5250.0
100 ALC100A12H7000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 ALC100A12H5000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 ALC100A12H6000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 ALC100A01H7000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
100 ALC100A01HD000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
100 ALC100A12H0100 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 ALC100A12H4000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 ALC100A12H2000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 ALC100A01H6000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
100 ALC100A01H0100 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
100 ALC100A01H2000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
100 ALC100A01H4000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
100 ALC100A01H5000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
100 ALC100A00H6000 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
100 ALC100A00H7000 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
100 ALC100A00H2000 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
100 ALC100A00H4000 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
100 ALC100A00H5000 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
100 ALC100A00H0000 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
100 ALC100A00H0100 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
50 ALC050A00HB00S New Part PDF DXF PDF DXF 24.02 16.33 13.13 98.0 1425.0
50 ALC050A01HB00S New Part PDF DXF PDF DXF 26.77 16.58 13.74 115.0 1425.0
50 ALC050A03HB00S New Part PDF DXF PDF DXF 24.02 16.33 13.13 98.0 1425.0
350 H5350A03HD000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A12HD000 Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
50 H550A12HD000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 H550A3RHD000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 2676.0
200 H5200A12HD00N Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
250 H5250A03HD000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A12HD000 Legacy Part PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
300 H5300A03HD00N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A12HD00N Legacy Part PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
100 H5100A12HD000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
100 H5100A3RHD000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.0 3500.0
150 H5150A03HD000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5250.0
150 H5150A12HD000 Legacy Part PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
200 H5200A03HD00N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
350 ALC350A01HD000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10000.0
50 ALC50A00HD000 Legacy Part PDF DXF PDF DXF 56.0 17.0 12.5 167.0 2650.0
350 ALC350A12HD00S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 11000.0
350 ALC350A01HD00S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10000.0
350 ALC350A03HD00S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
300 ALC300A00HD00N Legacy Part PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
300 ALC300A03HD00S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
250 ALC250A12HD000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 9650.0
300 ALC300A12HD00S PDF DXF PDF DXF 90.0 48.0 36.0 1352.0 9000.0
300 ALC300A00HD00S PDF DXF PDF DXF 72.3 27.0 9.8 715.0 8000.0
250 ALC250A00HD000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 8750.0
250 ALC250A01HD000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
200 ALC200A12HD000 PDF DXF PDF DXF 90.0 36.0 36.0 1131.0 7900.0
200 ALC200A03HD000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
250 ALC250A03HD000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
200 ALC200A00HD00N Legacy Part PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A01HD00N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A00HD000 PDF DXF PDF DXF 72.3 22.0 16.5 565.0 6930.0
200 ALC200A01HD000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
150 ALC150A12HD000 PDF DXF PDF DXF 90.0 24.0 25.1 736.0 5700.0
100 ALC100A12HD000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3950.0
150 ALC150A03HD000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
100 ALC100A03H7000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03H6000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03HD000 PDF DXF PDF DXF 63.0 32.0 25.0 685.0 3500.0
100 ALC100A00HD000 PDF DXF PDF DXF 56.0 17.0 14.0 167.0 3500.0
100 ALC100A03H4000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03H0100 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03H2000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03H5000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
50 ALC050A12H2000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 ALC050A12H4000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 ALC050A12H5000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 ALC050A12H6000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 ALC050A12H7000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 ALC050A12H0100 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
50 ALC050A12HD000 PDF DXF PDF DXF 90.0 24.0 25.1 631.0 3150.0
30 ALC030A00HB00S New Part PDF DXF PDF DXF 24.02 16.33 13.13 98.0 855.0
30 ALC030A01HB00S New Part PDF DXF PDF DXF 26.77 16.58 13.74 115.0 855.0
30 ALC030A03HB00S New Part PDF DXF PDF DXF 23.36 23.84 14.9 141.0 880.0
700 H5700A03S0200 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 H5700A03S0300 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 H5700A03SD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
600 H5600A03SD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 H5600A03S0200 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 H5600A03S0300 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
50 H550A3RS5000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 167.0 3050.0
50 H550A3RS6000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 167.0 3050.0
50 H550A3RS7000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 167.0 3050.0
50 H550A3RS0100 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 167.0 3050.0
50 H550A3RS2000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 167.0 3050.0
50 H550A3RS4000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 167.0 3050.0
500 H5500A03SD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 H5500A03S7000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
400 H5500A03S6000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 H5400A03SD000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 H5400A03S6000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 H5400A03S7000 Legacy Part PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
350 H5350A03SD000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10000.0
350 H5350A03S2000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03S4000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03S5000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03S6000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03S7000 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 H5350A03S0100 Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
300 H5300A03S600N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03S700N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03S010N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03S200N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03S400N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 H5300A03S500N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
250 H5250A03S4000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03S5000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03S6000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03S7000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03S0100 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 H5250A03S2000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
200 H5200A03S700N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03S010N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03S200N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03S400N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03S500N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 H5200A03S600N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
150 H5150A03S6000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03S7000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03SD000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03S2000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03S0100 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03S4000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 H5150A03S5000 Legacy Part PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
100 H5100A3RS2000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RS4000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RS5000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RS6000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RS7000 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 H5100A3RS0100 Legacy Part PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
250 H5250A03SD000 Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
300 H5300A03SD00N Legacy Part PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
200 H5200A03SD00N Legacy Part PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 6930.0
700 ALC700A03SD00S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 ALC700A03S030S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
700 ALC700A03S020S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
600 ALC600A03S030S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 ALC600A03SD00S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
600 ALC600A03S020S PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
500 ALC500A03SD000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 ALC500A03S6000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 ALC500A03S7000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
400 ALC400A03SD000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 ALC400A03S6000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
400 ALC400A03S7000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
350 ALC350A03SD00S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10000.0
350 ALC350A03S200S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03S400S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03S600S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03S500S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03S700S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
350 ALC350A03S010S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 10600.0
300 ALC300A03S600S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A03S500S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A03S400S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A03S700S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A03S010S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
300 ALC300A03S200S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
250 ALC250A03S6000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03S5000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03S7000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03S2000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03S0100 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
250 ALC250A03S4000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
200 ALC200A03S7000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03S6000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03S2000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03S5000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03S0100 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
200 ALC200A03S4000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 7650.0
150 ALC150A03S6000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03S7000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03SD000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03S0100 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03S2000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03S4000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
150 ALC150A03S5000 PDF DXF PDF DXF 94.0 32.0 28.1 720.0 5600.0
300 ALC300A03SD00S PDF DXF PDF DXF 94.0 47.0 28.95 1425.0 8000.0
250 ALC250A03SD000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 8750.0
200 ALC200A03SD000 PDF DXF PDF DXF 94.0 42.0 29.6 1102.0 6930.0
100 ALC100A03S6000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03S7000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03SD000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03S4000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03S2000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03S5000 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
100 ALC100A03S0100 PDF DXF PDF DXF 63.0 32.0 25.0 685.3 3850.0
700 H5700A03SB000 PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
600 H5600A03SB000 PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 16100.0
500 H5500A03SB000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
400 H5400A03SB000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
700 ALC700A00HB000 PDF DXF PDF DXF 72.3 55.0 20.36 942.0 20000.0
700 ALC700A01HB000 PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
500 ALC500A00HB000 PDF DXF PDF DXF 72.3 44.0 18.07 1130.0 17350.0
600 ALC600A00HB000 PDF DXF PDF DXF 72.3 55.0 20.36 942.0 16100.0
400 ALC400A00HB000 PDF DXF PDF DXF 72.3 44.0 18.07 1130.0 13850.0
100 H5100A3SD000 PDF DXF PDF DXF 63.0 32.0 25.0 685.0 3500.0
700 H5700A12HB000 PDF DXF PDF DXF 93.12 72.0 39.02 2382.0 22000.0
700 H5700A03HB000 PDF DXF PDF DXF 94.0 73.0 31.05 2109.0 21000.0
600 H5600A12HB000 PDF DXF PDF DXF 93.12 72.0 39.02 2382.0 18100.0
500 H5500A03HB000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 18500.0
500 H5500A12HB000 PDF DXF PDF DXF 93.12 72.0 39.02 2382.0 18850.0
400 H5400A12HB000 PDF DXF PDF DXF 93.12 72.0 39.02 2382.0 15350.0
400 H5400A03HB000 PDF DXF PDF DXF 94.0 73.0 31.05 1965.0 13860.0
600 ALC600A01HB000 PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
500 ALC500A01HB000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
400 ALC400A01HB000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
