V1K Ratings Table

Ratings table for the V1K product category

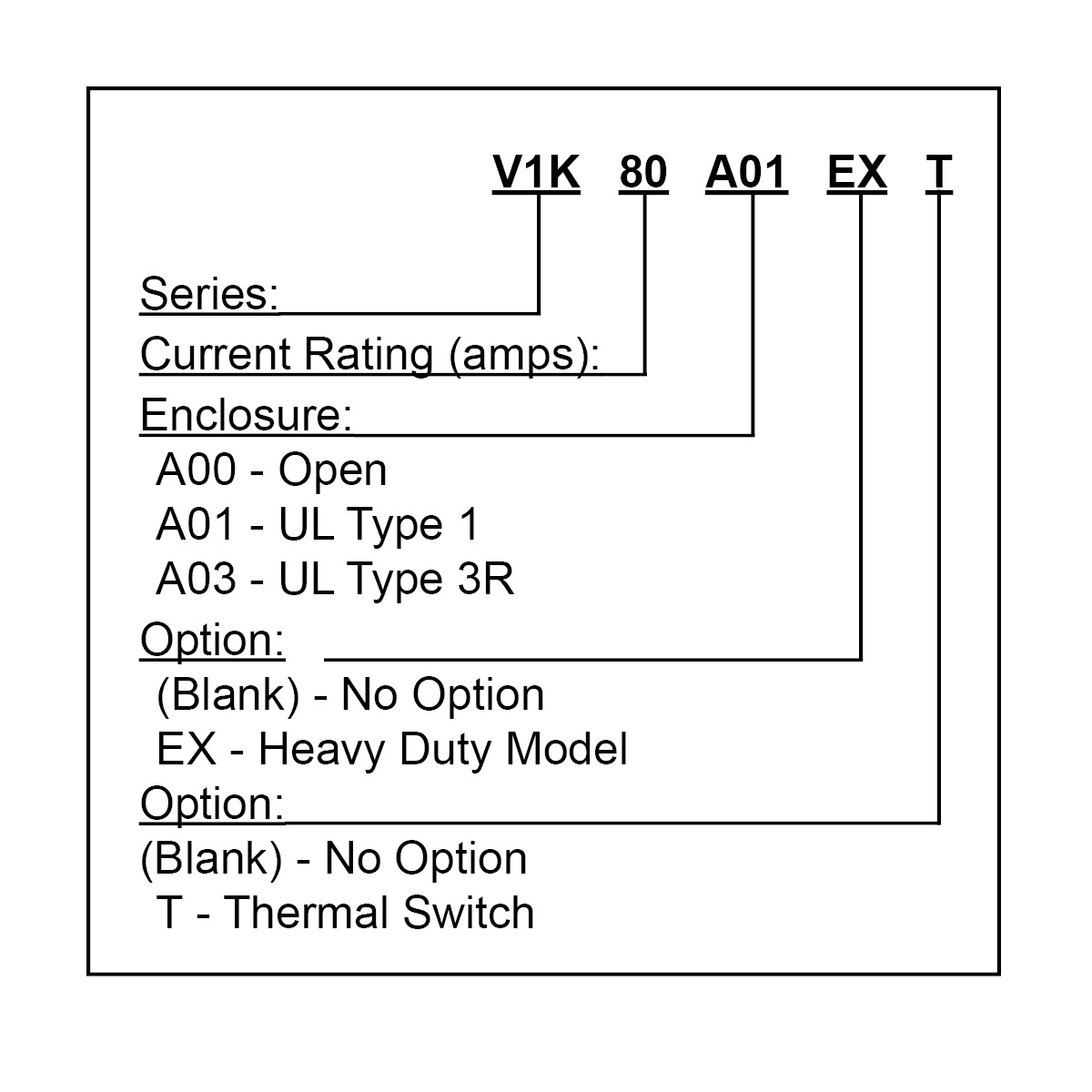

Part Number Structure

Enclosure Type

Heavy Duty Option

Thermal Switch

Max Amps SKU (Part Number) Drawing Height (in) Width (in) Depth (in) Weight (lbs) Watts Loss
27 V1K27A03T PDF DXF 11.45 10.00 12.00 29 110
160 V1K160A03T PDF DXF 19.18 15.62 19.50 99 260
200 V1K200A03T PDF DXF 19.18 15.62 19.50 99 265
420 V1K420A01T PDF DXF 16.50 18.00 30.00 132 450
480 V1K480A01T PDF DXF 16.50 18.00 30.00 138 475
16 V1K16A00T PDF DXF 9.00 5.50 8.25 12 95
305 V1K305A00T PDF DXF 8.75 11.75 12.25 80 325
8 V1K8A01T PDF DXF 9.00 5.50 10.00 11 90
35 V1K35A03T PDF DXF 19.18 15.62 19.50 56 130
45 V1K45A03T PDF DXF 19.18 15.62 19.50 56 135
21 V1K21A00T PDF DXF 9.00 5.50 8.25 12 110
27 V1K27A01T PDF DXF 9.00 5.50 10.00 15 110
80 V1K80A03T PDF DXF 19.18 15.62 19.50 62 255
25 V1K4A01T PDF DXF 9 5.5 8.25 12 110
420 V1K420A00T PDF DXF 10.00 11.75 13.75 95 450
130 V1K130A01T PDF DXF 9.00 5.50 8.25 12 270
362 V1K362A01T PDF DXF 16.50 18.00 30.00 117 300
160 V1K160A01T PDF DXF 16.5 18.31 15.50 65 260
55 V1K55A03T PDF DXF 19.50 15.15 15.15 56 145
2 V1K2A03T PDF DXF 11.45 10.00 12.00 25 75
110 V1K110A03T PDF DXF 19.18 15.62 19.50 74 245
130 V1K130A03T PDF DXF 19.18 15.62 19.50 89 270
21 V1K21A01T PDF DXF 9.00 5.50 10.00 15 110
305 V1K305A01T PDF DXF 16.50 18.00 30.00 117 325
600 V1K600A01T PDF DXF 16.50 18.00 30.00 168 515
750 V1K750A01T PDF DXF 16.50 18.00 30.00 180 770
480 V1K480A03T PDF DXF 22.15 20.62 28.50 161 475
362 V1K362A00T PDF DXF 8.75 11.75 12.00 80 300
2 V1K2A01T PDF DXF 9.00 5.50 10.00 11 75
12 V1K12A01T PDF DXF 9.00 5.50 10.00 11 95
16 V1K16A01T PDF DXF 9.00 5.50 10.00 15 95
110 V1K110A00T PDF DXF 12 8 10.25 40 245
4 V1K4A03T PDF DXF 11.45 10.00 12.00 25 75
16 V1K16A03T PDF DXF 11.45 10.00 12.00 25 95
21 V1K21A03T PDF DXF 11.45 10.00 12.00 29 110
45 V1K45A01T PDF DXF 12.00 8.00 11.50 23 135
80 V1K80A00 PDF DXF 12 8 9 23 255
8 V1K8A00 PDF DXF 8.9 5.5 7.7 8 90
600 V1K600A03 PDF DXF 36 28.2 36.86 297 515
6 V1K6A00 PDF DXF 8.9 5.5 7.7 8 80
600 V1K600A00T PDF DXF 12.5 15.5 14 130 515
480 V1K480A00 PDF DXF 9.9 12.1 14 100 475
45 V1K45A03 PDF DXF 19.18 15.62 19.5 56 135
480 V1K480A03 PDF DXF 22.15 20.62 28.5 161 475
45 V1K45A01 PDF DXF 12 8 11.5 23 135
362 V1K362A00 PDF DXF 10.1 11.9 12.3 80 300
305 V1K305A01 PDF DXF 16.5 18 30 117 325
27 V1K27A01 PDF DXF 9 5.5 10 15 110
27 V1K27A03 PDF DXF 10.50 10.31 12 29 110
2 V1K2A00 PDF DXF 8.9 5.5 7.7 8 75
27 V1K27A00T PDF DXF 9 5.5 8.25 14 110
27 V1K27A00 PDF DXF 9 5.5 8.25 14 110
25 V1K25A01 PDF DXF 9 6.00 10.25 29 110
18 V1K18A03 PDF DXF 10.50 10.31 12 29 110
21 V1K21A01 PDF DXF 9 5.5 10 15 110
18 V1K18A01 PDF DXF 9 5.5 10 15 110
18 V1K18A01T PDF DXF 9 5.5 10 15 110
130 V1K130A00 PDF DXF 10 11 10 40 270
130 V1K130A03 PDF DXF 19.18 15.62 19.5 80 270
160 V1K160A03 PDF DXF 19.12 16 19.5 85 260
110 V1K110A00 PDF DXF 12 8 10.25 40 245
110 V1K110A01 PDF DXF 16.5 18 15 68 245
12 V1K12A00T PDF DXF 9.00 5.50 8.25 8 95
6 V1K6A01T PDF DXF 9 5.5 10.05 11 80
35 V1K35A01T PDF DXF 12.00 8.00 11.50 23 130
80 V1K80A01 PDF DXF 12 8 11.5 29 255
750 V1K750A03 PDF DXF 36 28.2 36.86 307 770
480 V1K480A00T PDF DXF 13.75 11.75 10 100 475
362 V1K362A03 PDF DXF 22.15 20.62 28.5 109 300
420 V1K420A01 PDF DXF 16.5 18 30 132 450
420 V1K420A03 PDF DXF 22.15 20.62 28.5 156 450
35 V1K35A01 PDF DXF 12 8 11.5 23 130
3 V1K3A01 PDF DXF 9 5.5 10.05 11 75
305 V1K305A03 PDF DXF 22.15 20.62 28.5 109 325
305 V1K305A00 PDF DXF 10.1 11.9 12.3 80 325
25 V1K25A00 PDF DXF 9 5.5 8.25 12 110
2 V1K2A01 PDF DXF 9 5.5 10.05 11 75
250 V1K250A00 PDF DXF 10 12.25 11.00 55 290
250 V1K250A01 PDF DXF 16.5 18.31 15.50 75 290
200 V1K200A00 PDF DXF 10 12 10 45 265
200 V1K200A00T PDF DXF 10 12 10 45 265
160 V1K160A00T PDF DXF 10 11.38 10.50 45 260
12 V1K12A01 PDF DXF 9 5.5 10.05 11 95
8 V1K8A01 PDF DXF 9 5.5 10.05 11 90
8 V1K8A03 PDF DXF 11.45 10 12 25 90
750 V1K750A00 PDF DXF 12.5 14.8 17.3 135 770
750 V1K750A01 PDF DXF 16.5 18 30 180 770
80 V1K80A01T PDF DXF 12 8 11.5 29 255
4 V1K4A00 PDF DXF 8.9 5.5 7.7 8 75
4 V1K4A01 PDF DXF 9 5.5 10.05 11 75
55 V1K55A00 PDF DXF 12 8 9 17 145
600 V1K600A00 PDF DXF 12.5 15.5 14 130 515
480 V1K480A01 PDF DXF 16.5 18 30 138 475
420 V1K420A00 PDF DXF 9.9 12.3 13.6 95 450
45 V1K45A00T PDF DXF 12 8 9 17 135
35 V1K35A03 PDF DXF 19.18 15.62 19.5 56 130
3 V1K3A00 PDF DXF 8.9 5.5 7.7 8 75
3 V1K3A03 PDF DXF 11.45 10 12 25 75
362 V1K362A01 PDF DXF 16.5 18 30 117 300
21 V1K21A00 PDF DXF 9 5.5 8.25 12 110
25 V1K25A03 PDF DXF 10.50 10.31 12 29 110
250 V1K250A01T PDF DXF 16.5 18 15 93 290
25 V1K25A01T PDF DXF 9 5.5 10 15 110
200 V1K200A01 PDF DXF 16.5 18.31 15.50 65 265
200 V1K200A03 PDF DXF 19.12 16 19.5 85 265
160 V1K160A00 PDF DXF 10 11.38 10.50 45 260
160 V1K160A01 PDF DXF 16.5 18.31 15.50 65 260
16 V1K16A03 PDF DXF 10.50 10.31 12 29 95
18 V1K18A00T PDF DXF 9 5.5 8.25 12 110
12 V1K12A03 PDF DXF 11.45 10 12 25 95
130 V1K130A00T PDF DXF 10 11 10 40 270
80 V1K80A03 PDF DXF 12 8 9 23 255
8 V1K8A00T PDF DXF 9.00 5.50 8.25 8 90
600 V1K600A01 PDF DXF 16.5 18 30 168 515
6 V1K6A01 PDF DXF 9 5.5 10.05 11 80
6 V1K6A03 PDF DXF 11.45 10 12 25 80
750 V1K750A00T PDF DXF 12.5 14.8 17.3 135 770
55 V1K55A01 PDF DXF 12 8 11.5 23 145
55 V1K55A03 PDF DXF 19.18 15.62 19.5 56 145
55 V1K55A00T PDF DXF 12 8 9 17 145
55 V1K55A01T PDF DXF 12 8 11.5 23 145
45 V1K45A00 PDF DXF 12 8 9 17 135
4 V1K4A03 PDF DXF 11.45 10 12 25 75
3 V1K3A00T PDF DXF 8.9 5.5 7.68 8 95
2 V1K2A03 PDF DXF 11.45 10 12 25 75
35 V1K35A00 PDF DXF 12 8 9 17 130
35 V1K35A00T PDF DXF 12 8 9 17 130
250 V1K250A03 PDF DXF 19.12 16 19.5 95 290
25 V1K25A00T PDF DXF 9 5.5 8.25 12 110
21 V1K21A03 PDF DXF 10.50 10.31 12 29 110
18 V1K18A00 PDF DXF 9 5.5 8.25 12 110
250 V1K250A00T PDF DXF 10 11.75 10.5 60 290
16 V1K16A00 PDF DXF 9 5.5 8.25 12 95
16 V1K16A01 PDF DXF 9 5.5 10 15 95
110 V1K110A03 PDF DXF 19.18 15.62 19.5 74 245
12 V1K12A00 PDF DXF 8.9 5.5 7.7 8 95
6 V1K6A00T PDF DXF 9.00 5.50 7.25 8 80
4 V1K4A00T PDF DXF 8.9 5.5 7.7 8 75
6 V1K6A03T PDF DXF 11.45 10 12 25 80
8 V1K8A03T PDF DXF 11.45 10 12 25 90
18 V1K18A03T PDF DXF 10.25 10.31 12 29 110
25 V1K25A03T PDF DXF 11.45 10 12 29 110
3 V1K3A03T PDF DXF 11.45 10 12 25 75
2 V1K2A00T PDF DXF 8.9 5.5 7.7 8 75
12 V1K12A03T PDF DXF 11.45 10 12 25 95
3 V1K3A01T PDF DXF 9 5.5 10.05 11 75
200 V1K200A01T PDF DXF 16.50 18.31 15.50 76 265
362 V1K362A03T PDF DXF 22.15 20.62 28.50 109 300
420 V1K420A03T PDF DXF 22.15 20.62 28.50 156 450
110 V1K110A01T PDF DXF 16.50 18.00 15.00 68 245
750 V1K750A03T PDF DXF 36.00 28.21 36.86 307 770
600 V1K600A03T PDF DXF 36.00 28.21 36.86 297 515
250 V1K250A03T PDF DXF 19.18 15.62 19.50 99 290
305 V1K305A03T PDF DXF 22.15 20.62 28.50 109 325
160 V1K2A00EXT PDF DXF 8.90 5.50 7.30 8 75
80 V1K80A00T PDF DXF 12 8 9 23 255
