HGL Ratings Table

Ratings table for the HGL product category

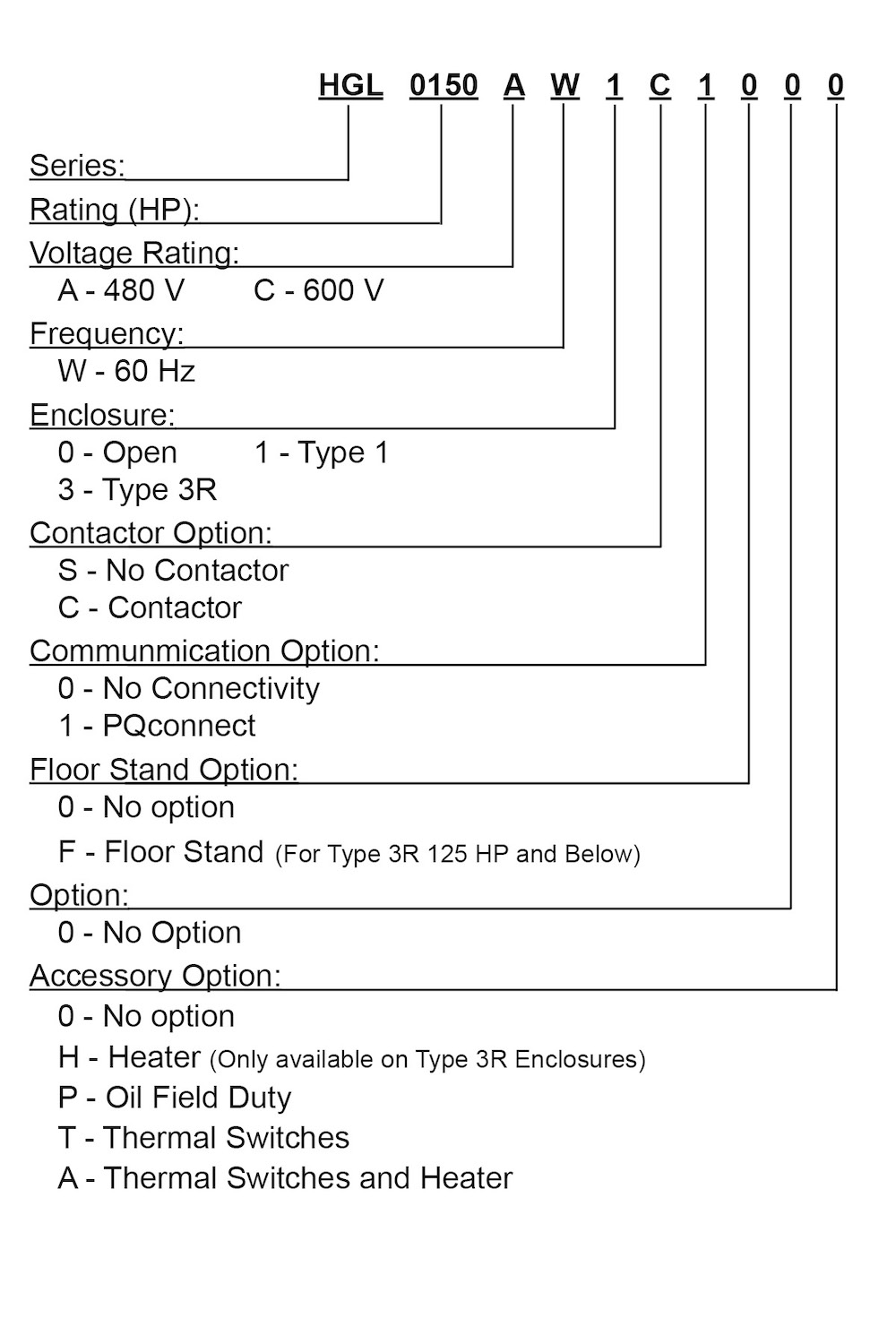

Part Number Structure

Rated Voltage

Enclosure Type

Connectivity

Isolation Contactor

Horsepower (HP) SKU (Part Number) Drawing Schematic Amps Height (in) Width (in) Depth (in) Weight (lbs) Watts Loss
300 HGL0300AW3S0000 PDF DXF PDF DXF 361 53.9 45.4 21.7 615 1476
300 HGL0300AW0C1000 PDF DXF PDF DXF 361 68.5 17.2 15 492 1464
300 HGL0300AW3C1000 PDF DXF PDF DXF 361 53.86 45.4 21.73 623 1486
250 HGL0250AW3C0000 PDF DXF PDF DXF 302 53.9 45.4 21.7 555 1235
250 HGL0250AW3S0000 PDF DXF PDF DXF 302 53.9 45.4 21.7 550 1235
250 HGL0250AW1S0000 PDF DXF PDF DXF 302 72.3 20 20 535 1235
250 HGL0250AW0C1000 PDF DXF PDF DXF 302 68.5 17 13.75 397 1227
200 HGL0200AW1S0000 PDF DXF PDF DXF 240 72.3 20 20 496 921
200 HGL0200AW3S0000 PDF DXF PDF DXF 240 52.58 39.5 17.73 470 921
200 HGL0200AW3C1000 PDF DXF PDF DXF 240 52.58 39.45 17.73 478 921
200 HGL0200AW0C2000 PDF DXF PDF DXF 240 68.5 17 13.75 358 907
200 HGL0200AW1C2000 PDF DXF PDF DXF 240 70 20 20 500 921
150 HGL0150AW1C0000 PDF DXF PDF DXF 180 56.3 17.66 16.5 360 1066
150 HGL0150AW1C1000 PDF DXF PDF DXF 180 56.25 17.66 16.5 361 1076
150 HGL0150AW0C0000 PDF DXF PDF DXF 180 56 17 13.25 265 1051
150 HGL0150AW0S0000 PDF DXF PDF DXF 180 56 17 13.25 258 92
125 HGL0125AW1C0000 PDF DXF PDF DXF 156 56.3 17.66 16.5 320 884
125 HGL0125AW3S0000 PDF DXF PDF DXF 156 38.5 39.5 13.5 290 884
125 HGL0125AW1C2000 PDF DXF PDF DXF 156 56.15 17.66 16.33 320 894
100 HGL0100AW3S0000 PDF DXF PDF DXF 124 38.6 39.5 13.5 270 771
100 HGL0100AW0C1000 PDF DXF PDF DXF 124 56 17 11.5 207 770
100 HGL0100AW0S0000 PDF DXF PDF DXF 124 56 17 11.5 200 760
75 HGL0075AW0C1000 PDF DXF PDF DXF 96 30.75 17.24 12 148 586
75 HGL0075AW3C1000 PDF DXF PDF DXF 96 38.6 39.5 13.5 251 594
75 HGL0075AW0C2000 PDF DXF PDF DXF 96 30.75 17 12 148 79
60 HGL0060AW1S0000 PDF DXF PDF DXF 77 31.7 17.8 12.54 200 590
60 HGL0060AW3C1000 PDF DXF PDF DXF 77 38.6 39.5 13.5 244 600
60 HGL0060AW1C1000 PDF DXF PDF DXF 77 31.65 17.8 12.54 206 600
50 HGL0050AW3C0000 PDF DXF PDF DXF 65 38.6 39.5 13.5 231 525
50 HGL0050AW3S0000 PDF DXF PDF DXF 65 38.6 39.5 13.5 229 525
50 HGL0050AW3C2000 PDF DXF PDF DXF 65 37.58 39.15 13.73 231 69
50 HGL0050AW0C1000 PDF DXF PDF DXF 65 30.75 17.24 11.6 138 528
50 HGL0050AW0S0000 PDF DXF PDF DXF 65 30.75 17.2 11.6 130 518
40 HGL0040AW1C0000 PDF DXF PDF DXF 52 31.65 17.8 12.54 190 454
40 HGL0040AW3S0000 PDF DXF PDF DXF 52 38.6 39.5 13.5 220 454
40 HGL0040AW1C1000 PDF DXF PDF DXF 52 31.65 17.8 12.54 191 464
30 HGL0030AW3C0000 PDF DXF PDF DXF 40 38.6 39.5 13.5 205 338
25 HGL0025AW3C2000 PDF DXF PDF DXF 34 33.24 33 13.73 131 250
20 HGL0020AW0C2000 PDF DXF PDF DXF 27 19.75 17 10.14 67 53
300 HGL0300AW1S0000 PDF DXF PDF DXF 361 72.3 20 20 630 1476
300 HGL0300AW3C0000 PDF DXF PDF DXF 361 53.9 45.4 21.7 620 1476
300 HGL0300AW1C1000 PDF DXF PDF DXF 361 72.25 20 20 643 1486
250 HGL0250AW1C0000 PDF DXF PDF DXF 302 72.3 20 20 545 1235
250 HGL0250AW0S0000 PDF DXF PDF DXF 302 68.5 17 13.75 350 1217
250 HGL0250AW1C2000 PDF DXF PDF DXF 302 70 20 20 545 1245
200 HGL0200AW1C0000 PDF DXF PDF DXF 240 72.3 20 20 500 921
200 HGL0200AW1C1000 PDF DXF PDF DXF 240 72.25 20 20 501 921
150 HGL0150AW1S0000 PDF DXF PDF DXF 180 56.3 17.66 16.5 353 1066
150 HGL0150AW1C2000 PDF DXF PDF DXF 180 56.15 17.66 16.33 360 1076
150 HGL0150AW3C2000 PDF DXF PDF DXF 180 52.58 39.07 17.73 405 92
125 HGL0125AW3C1000 PDF DXF PDF DXF 156 38.6 39.5 13.5 294 894
125 HGL0125AW3C2000 PDF DXF PDF DXF 156 37.58 39.15 13.73 291 1000
100 HGL0100AW3C0000 PDF DXF PDF DXF 124 38.6 39.5 13.5 271 771
100 HGL0100AW3C2000 PDF DXF PDF DXF 124 37.58 39.15 13.73 271 750
100 HGL0100AW1C0000 PDF DXF PDF DXF 124 56.3 17.66 16.5 300 771
100 HGL0100AW1S0000 PDF DXF PDF DXF 124 56.3 17.66 16.5 295 771
100 HGL0100AW1C1000 PDF DXF PDF DXF 124 56.25 17.66 16.5 301 781
100 HGL0100AW0C2000 PDF DXF PDF DXF 124 56 17 11.5 207 750
75 HGL0075AW1C0000 PDF DXF PDF DXF 96 31.7 17.8 12.54 210 584
75 HGL0075AW3C0000 PDF DXF PDF DXF 96 38.6 39.5 13.5 248 584
60 HGL0060AW1C0000 PDF DXF PDF DXF 77 31.7 17.8 12.54 205 590
60 HGL0060AW0S0000 PDF DXF PDF DXF 77 30.75 17.24 11.52 135 582
60 HGL0060AW0C2000 PDF DXF PDF DXF 77 30.75 17 11.5 143 74
60 HGL0060AW0C1000 PDF DXF PDF DXF 77 30.75 17.24 11.52 143 592
50 HGL0050AW1S0000 PDF DXF PDF DXF 65 31.65 17.8 12.54 195 525
50 HGL0050AW3C1000 PDF DXF PDF DXF 65 38.6 39.5 13.5 234 535
50 HGL0050AW1C0000 PDF DXF PDF DXF 65 31.65 17.8 12.54 200 525
40 HGL0040AW3C0000 PDF DXF PDF DXF 52 38.6 39.5 13.5 221 454
40 HGL0040AW1C2000 PDF DXF PDF DXF 52 31.55 17.5 12.54 190 464
40 HGL0040AW0C1000 PDF DXF PDF DXF 52 30.75 17.24 11.6 128 457
40 HGL0040AW0S0000 PDF DXF PDF DXF 52 30.75 17.2 11.6 120 447
40 HGL0040AW0C2000 PDF DXF PDF DXF 52 30.75 17 11.5 128 65
30 HGL0030AW3C2000 PDF DXF PDF DXF 40 33.24 33 13.73 145 49
20 HGL0020AW3C1000 PDF DXF PDF DXF 27 32.7 33.39 13.74 130 248
30 HGL0030AW0C0000 PDF DXF PDF DXF 40 30.75 17.2 11.6 85 333
30 HGL0030AW0C2000 PDF DXF PDF DXF 40 30.75 17 11.38 88 49
20 HGL0020AW1S0000 PDF DXF PDF DXF 27 20.65 17.62 12.52 86 238
20 HGL0020AW3C0000 PDF DXF PDF DXF 27 32.7 33.39 13.74 126 238
20 HGL0020AW1C2000 PDF DXF PDF DXF 27 20.52 17.62 12.52 90 248
20 HGL0020AW1C0000 PDF DXF PDF DXF 27 20.65 17.62 12.52 90 238
20 HGL0020AW1C1000 PDF DXF PDF DXF 27 20.65 17.62 12.52 92 248
20 HGL0020AW0S0000 PDF DXF PDF DXF 27 19.75 17.2 10.4 61 234
20 HGL0020AW0C1000 PDF DXF PDF DXF 27 19.75 17.24 10.4 67 244
20 HGL0020AW0C0000 PDF DXF PDF DXF 27 19.75 17.2 10.4 65 234
300 HGL0300AW1C2000 PDF DXF PDF DXF 361 70 20 20 640 1486
300 HGL0300AW3C2000 PDF DXF PDF DXF 361 53.86 45.14 21.73 620 107
300 HGL0300AW1C0000 PDF DXF PDF DXF 361 72.3 20 20 640 1476
300 HGL0300AW0C0000 PDF DXF PDF DXF 361 68.5 17.2 15 490 479
250 HGL0250AW1C1000 PDF DXF PDF DXF 302 72.25 20 20 546 1245
250 HGL0250AW3C2000 PDF DXF PDF DXF 302 53.86 45.14 21.73 555 102
200 HGL0200AW3C000P PDF DXF PDF DXF 240 52.58 39.48 17.73 475 921
200 HGL0200AW3C0000 PDF DXF PDF DXF 240 52.58 39.5 17.73 475 921
200 HGL0200AW0C1000 PDF DXF PDF DXF 240 68.5 17 13.75 352 907
200 HGL0200AW0S0000 PDF DXF PDF DXF 240 68.5 17 13.75 345 907
200 HGL0200AW0C0000 PDF DXF PDF DXF 240 68.5 17 13.75 350 907
150 HGL0150AW0C1000 PDF DXF PDF DXF 180 56 17 13.25 267 1061
150 HGL0150AW0C2000 PDF DXF PDF DXF 180 56 17 13.19 267 92
125 HGL0125AW1S0000 PDF DXF PDF DXF 156 56.3 17.66 16.5 315 884
125 HGL0125AW3C0000 PDF DXF PDF DXF 156 38.6 39.5 13.5 291 884
125 HGL0125AW1C1000 PDF DXF PDF DXF 156 56.25 17.66 16.5 321 894
125 HGL0125AW0C0000 PDF DXF PDF DXF 156 56 17 11.5 225 871
125 HGL0125AW0C2000 PDF DXF PDF DXF 156 56 17 13.04 227 1000
100 HGL0100AW1C2000 PDF DXF PDF DXF 124 56.15 17.66 16.33 300 781
75 HGL0075AW1S0000 PDF DXF PDF DXF 96 31.7 17.8 12.54 205 584
60 HGL0060AW3S0000 PDF DXF PDF DXF 77 38.6 39.5 13.5 239 590
75 HGL0075AW1C2000 PDF DXF PDF DXF 96 31.55 17.5 12.54 210 594
60 HGL0060AW3C0000 PDF DXF PDF DXF 77 38.6 39.5 13.5 241 590
60 HGL0060AW0C0000 PDF DXF PDF DXF 77 30.75 17.24 11.52 140 582
60 HGL0060AW1C2000 PDF DXF PDF DXF 77 31.55 17.5 12.54 205 600
50 HGL0050AW1C2000 PDF DXF PDF DXF 65 31.55 17.5 12.54 200 535
50 HGL0050AW1C1000 PDF DXF PDF DXF 65 31.65 17.8 12.54 201 535
50 HGL0050AW0C2000 PDF DXF PDF DXF 65 30.75 17 11.5 138 69
30 HGL0030AW1C0000 PDF DXF PDF DXF 40 31.65 17.8 12.54 150 338
30 HGL0030AW3S0000 PDF DXF PDF DXF 40 38.6 39.5 13.5 195 338
30 HGL0030AW3C1000 PDF DXF PDF DXF 40 38.6 39.5 13.5 208 348
30 HGL0030AW0S0000 PDF DXF PDF DXF 40 30.75 17.2 11.6 81 333
25 HGL0025AW3C1000 PDF DXF PDF DXF 34 32.7 33.39 13.74 134 438
25 HGL0025AW1C2000 PDF DXF PDF DXF 34 20.52 17.62 12.52 88 438
25 HGL0025AW0C1000 PDF DXF PDF DXF 34 30.75 17.24 11.5 88 431
25 HGL0025AW0C2000 PDF DXF PDF DXF 34 19.75 17 10.65 70 310
25 HGL0025AW1C0000 34 31.65 17.74 12.54 140 428
300 HGL0300AW0S0000 PDF DXF PDF DXF 361 65.5 17.24 15 477 479
300 HGL0300AW0C2000 PDF DXF PDF DXF 361 68.5 17.24 15.5 492 107
250 HGL0250AW3C1000 PDF DXF PDF DXF 302 53.86 45.4 21.73 558 1245
250 HGL0250AW0C2000 PDF DXF PDF DXF 302 68.5 17 13.75 397 102
250 HGL0250AW0C0000 PDF DXF PDF DXF 302 68.5 17 13.75 395 1217
200 HGL0200AW3C2000 PDF DXF PDF DXF 240 52.58 39.07 17.73 475 921
150 HGL0150AW3S0000 PDF DXF PDF DXF 180 52.58 39.5 17.73 400 1066
150 HGL0150AW3C1000 PDF DXF PDF DXF 180 52.58 39.45 17.73 408 1076
150 HGL0150AW3C0000 PDF DXF PDF DXF 180 52.58 39.5 17.73 405 1066
125 HGL0125AW0S0000 PDF DXF PDF DXF 156 56 17 11.5 220 871
125 HGL0125AW0C1000 PDF DXF PDF DXF 156 56 17 11.5 227 9000
100 HGL0100AW3C1000 PDF DXF PDF DXF 124 38.6 39.5 13.5 274 781
100 HGL0100AW0C0000 PDF DXF PDF DXF 124 56 17 11.5 205 760
75 HGL0075AW3S0000 PDF DXF PDF DXF 96 38.6 39.5 13.5 246 584
75 HGL0075AW1C1000 PDF DXF PDF DXF 96 31.65 17.8 12.54 213 594
75 HGL0075AW3C2000 PDF DXF PDF DXF 96 37.58 39.15 13.73 248 79
75 HGL0075AW0S0000 PDF DXF PDF DXF 96 30.75 17.24 12 140 576
75 HGL0075AW0C0000 PDF DXF PDF DXF 96 30.75 17.2 12 145 576
60 HGL0060AW3C2000 PDF DXF PDF DXF 77 37.58 39.15 13.73 241 74
50 HGL0050AW0C0000 PDF DXF PDF DXF 65 30.75 17.2 11.6 135 518
40 HGL0040AW1S0000 PDF DXF PDF DXF 52 31.65 17.8 12.54 185 454
40 HGL0040AW3C1000 PDF DXF PDF DXF 52 38.6 39.5 13.5 223 464
40 HGL0040AW3C2000 PDF DXF PDF DXF 52 37.58 39.15 13.73 221 65
40 HGL0040AW0C0000 PDF DXF PDF DXF 52 30.75 17.2 11.6 125 447
30 HGL0030AW1S0000 PDF DXF PDF DXF 40 31.65 17.8 12.54 145 338
30 HGL0030AW0C1000 PDF DXF PDF DXF 40 30.75 17.24 11.6 88 343
30 HGL0030AW1C1000 PDF DXF PDF DXF 40 31.65 17.8 12.54 151 348
30 HGL0030AW1C2000 PDF DXF PDF DXF 40 31.55 17.5 12.54 150 348
25 HGL0025AW0C0000 PDF DXF PDF DXF 34 30.75 17.2 11.5 85 421
20 HGL0020AW3S0000 PDF DXF PDF DXF 27 32.7 33.39 13.74 125 238
25 HGL0025AW1C1000 34 31.65 17.74 12.54 205 438
20 HGL0020AW3C2000 PDF DXF PDF DXF 27 33.24 33 13.73 126 53
900 HGL0900AW1S0000 PDF DXF PDF DXF 1080 63.51 72 26.14 2000 3300
800 HGL0800AW1C1000 PDF DXF PDF DXF 960 62.57 52 25.74 1872 2482
800 HGL0800AW1C2000 PDF DXF PDF DXF 960 62.57 52 26.46 1870 3300
700 HGL0700AW3C0000 PDF DXF PDF DXF 840 65.77 57.4 27.2 1395 2258
700 HGL0700AW3C1000 PDF DXF PDF DXF 840 65.77 57.4 27.2 1398 2268
700 HGL0700AW3C2000 PDF DXF PDF DXF 840 80.22 72.06 30 2598 2900
700 HGL0700AW1C2000 PDF DXF PDF DXF 840 62.57 52 26.46 1570 2268
600 HGL0600AW1S0000 PDF DXF PDF DXF 720 62.57 52 25.74 1236 2018
600 HGL0600AW3C0000 PDF DXF PDF DXF 720 65.8 57.4 26.1 1295 2018
600 HGL0600AW1C1000 PDF DXF PDF DXF 720 62.57 52 25.74 1252 2028
500 HGL0500AW1S0000 PDF DXF PDF DXF 590 62.57 52 25.74 1015 2083
450 HGL0450AW3S0000 PDF DXF PDF DXF 515 65.8 57.4 25.1 995 1869
450 HGL0450AW3C1000 PDF DXF PDF DXF 515 65.77 57.4 25.1 1007 1879
450 HGL0450AW1S0000 PDF DXF PDF DXF 515 62.57 52 25.74 1000 1869
400 HGL0400AW1C0000 PDF DXF PDF DXF 477 72.3 20 20 800 1571
400 HGL0400AW3C0000 PDF DXF PDF DXF 477 65.8 57.4 27.2 995 1571
400 HGL0400AW0C1000 PDF DXF PDF DXF 477 81.5 18.25 15 552 1558
350 HGL0350AW0S0000 PDF DXF PDF DXF 414 81.5 18.23 15 515 1411
350 HGL0350AW1C2000 PDF DXF PDF DXF 414 70 20 20 650 1442
900 HGL0900AW3C1000 PDF DXF PDF DXF 1080 80.32 72.08 29.97 2163 3300
900 HGL0900AW1C0000 PDF DXF PDF DXF 1080 63.51 72 26.14 2020 3300
800 HGL0800AW3C0000 PDF DXF PDF DXF 960 65.8 57.4 27.2 1721 2472
800 HGL0800AW3C1000 PDF DXF PDF DXF 960 65.77 57.4 27.2 1608 2482
700 HGL0700AW3S0000 PDF DXF PDF DXF 840 65.8 57.4 27.2 1375 2258
700 HGL0700AW1C0000 PDF DXF PDF DXF 840 62.57 52 25.74 1500 2258
700 HGL0700AW1C1000 PDF DXF PDF DXF 840 62.57 52 25.74 1502 2268
600 HGL0600AW3C1000 PDF DXF PDF DXF 720 65.77 57.4 26.1 1298 2028
600 HGL0600AW1C0000 PDF DXF PDF DXF 3720 62.57 52 25.74 1250 2018
500 HGL0500AW3C1000 PDF DXF PDF DXF 590 65.77 57.4 25.1 1022 2093
500 HGL0500AW3S0000 PDF DXF PDF DXF 590 65.8 57.4 25.1 1000 2083
500 HGL0500AW3C2000 PDF DXF PDF DXF 590 65.77 57.13 26.32 1019 3100
500 HGL0500AW1C0000 PDF DXF PDF DXF 590 62.57 52 25.74 1025 2083
500 HGL0500AW3C0000 PDF DXF PDF DXF 590 65.8 57.4 25.1 1019 2083
450 HGL0450AW3C0000 PDF DXF PDF DXF 515 65.8 57.4 25.1 1004 1869
400 HGL0400AW1C1000 PDF DXF PDF DXF 477 72.25 20 20 803 1581
350 HGL0350AW3C2000 PDF DXF PDF DXF 414 53.86 45.14 21.73 673 111
350 HGL0350AW1S0000 PDF DXF PDF DXF 414 72.3 20 20 640 1432
350 HGL0350AW3C0000 PDF DXF PDF DXF 414 53.9 45.4 21.7 670 1432
1000 HGL1000AW3C100T PDF DXF PDF DXF 1200 80.08 72.06 29.89 1919
800 HGL0800AW1S0000 PDF DXF PDF DXF 960 62.57 52 25.74 1965 2472
800 HGL0800AW3C2000 PDF DXF PDF DXF 960 80.22 72.06 30 1600 3000
700 HGL0700AW1S0000 PDF DXF PDF DXF 840 62.57 52 25.74 1486 2258
600 HGL0600AW3S0000 PDF DXF PDF DXF 720 65.8 57.4 26.1 1275 2018
600 HGL0600AW1C2000 PDF DXF PDF DXF 720 62.57 52 24.38 1250 2028
600 HGL0600AW3C2000 PDF DXF PDF DXF 720 65.77 57.13 26.32 1244 2700
450 HGL0450AW1C2000 PDF DXF PDF DXF 515 62.57 52 24.38 1010 1879
450 HGL0450AW1C1000 PDF DXF PDF DXF 515 62.57 52 25.74 1012 1879
400 HGL0400AW3S0000 PDF DXF PDF DXF 477 65.8 57.4 27.2 985 1571
400 HGL0400AW3C2000 PDF DXF PDF DXF 477 65.77 57.13 26.32 995 2600
400 HGL0400AW1S0000 PDF DXF PDF DXF 477 72.3 20 20 794 1571
400 HGL0400AW0C2000 PDF DXF PDF DXF 477 45 46.19 24 700 2600
400 HGL0400AW1C2000 PDF DXF PDF DXF 477 70 20 20 800 1581
350 HGL0350AW3S0000 PDF DXF PDF DXF 414 53.9 45.4 21.7 655 1432
350 HGL0350AW1C1000 PDF DXF PDF DXF 414 72.25 20 20 651 1442
350 HGL0350AW1C0000 PDF DXF PDF DXF 414 72.3 20 20 650 1432
350 HGL0350AW0C1000 PDF DXF PDF DXF 414 81.5 18.4 15 537 1421
350 HGL0350AW0C2000 PDF DXF PDF DXF 414 81.5 18.5 15 540 111
350 HGL0350AW0C0000 PDF DXF PDF DXF 414 81.5 18.4 15 535 1411
900 HGL0900AW3C0000 PDF DXF PDF DXF 1080 80.32 72.08 29.97 2160 3300
900 HGL0900AW3S0000 PDF DXF PDF DXF 1080 80.32 72.08 29.97 2144 3300
800 HGL0800AW3S0000 PDF DXF PDF DXF 960 65.8 57.4 27.2 1705 2472
900 HGL0900AW1C1000 PDF DXF PDF DXF 1080 63.51 72 26.14 2025 3300
800 HGL0800AW1C0000 PDF DXF PDF DXF 960 62.57 52 25.74 1985 2472
500 HGL0500AW1C1000 PDF DXF PDF DXF 590 62.57 52 25.74 1028 2093
500 HGL0500AW1C2000 PDF DXF PDF DXF 590 62.57 52 24.38 1025 2093
450 HGL0450AW1C0000 PDF DXF PDF DXF 515 62.57 52 25.74 1010 1869
450 HGL0450AW3C2000 PDF DXF PDF DXF 515 65.77 57.13 26.32 1004 771
400 HGL0400AW3C1000 PDF DXF PDF DXF 477 65.77 57.4 27.2 998 1581
400 HGL0400AW0C0000 PDF DXF PDF DXF 477 81.5 18.25 15 550 1548
400 HGL0400AW0S0000 PDF DXF PDF DXF 477 81.5 18.25 15 530 1548
350 HGL0350AW3C1000 PDF DXF PDF DXF 414 53.86 45.4 21.73 673 1442
