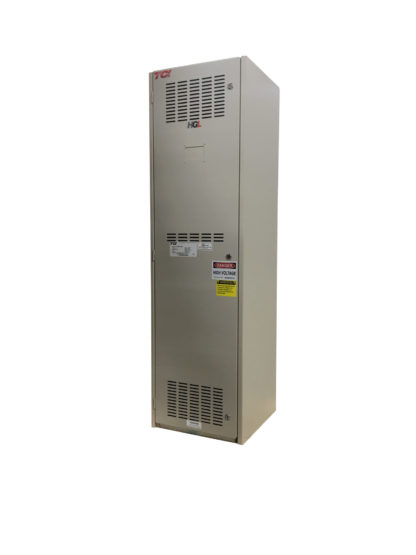

HGL0250AW1S0000

HGL, 480V, 250HP, 3 Phase, 60 Hz, Type 1, Low C, Passive Harmonic Filter, Standard Option

SKU: HGL0250AW1S0000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF)

Additional information

Specifications

Rated Voltage

480
Hertz (Hz)

60
Horsepower (HP)

250.0
Phase

3
Amps

302
Enclosure Type

UL Type 1
Watts Loss

1235.0
Connectivity

None
Isolation Contactor

None
Dimensions
  • Height: 71.64 in
  • Width: 20.0 in
  • Depth: 20.0 in
Weight 535.0 lbs
