HGP Ratings Table

Ratings table for the HGP product category

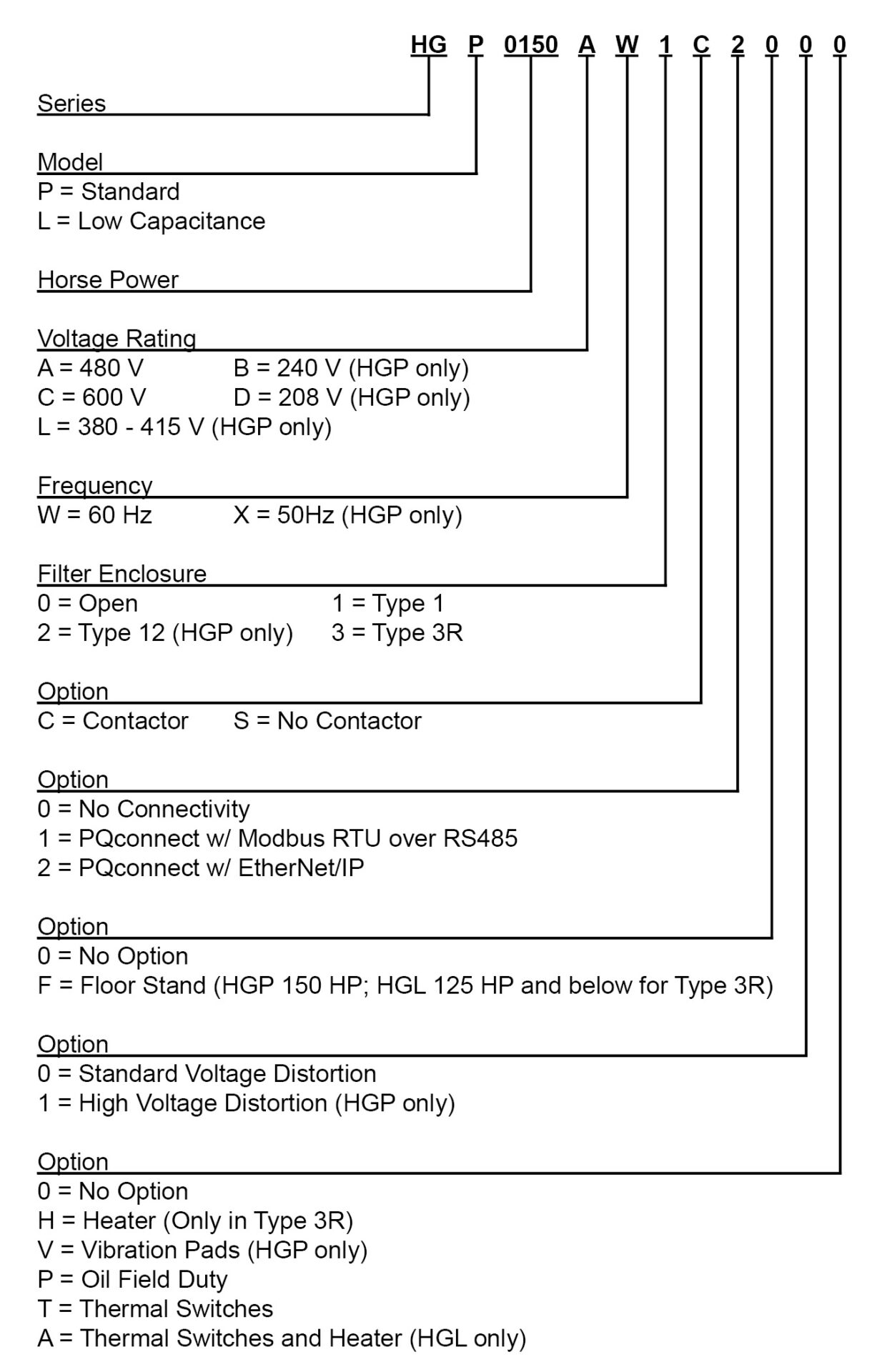

Part Number Structure

Rated Voltage

Enclosure Type

Connectivity

Isolation Contactor

Horsepower (HP) SKU (Part Number) Drawing Schematic Max Amps Height (in) Width (in) Depth (in) Weight (lbs) Watts Loss
20 HGP0020AW1C100T PDF DXF PDF DXF 27 20.7 17.62 12.52 90 275
100 HGP0100AW3C0010 PDF DXF PDF DXF 124 38.6 39.5 13.5 271 750
300 HGP0300AW3C1010 PDF DXF PDF DXF 361 53.86 45.4 21.73 623 2100
HGP0600AW0C0000 45 46 24 2700
50 HGP0050AW1C100T PDF DXF PDF DXF 65 31.65 17.6 12.5 153 550
450 HGP0450AW0C0000 45 45 24 2800
1250 HGP1250AW3C1000 PDF DXF PDF DXF 1500 80.5 81.5 30 3100 5100
1000 HGP1000AW3S0000 PDF DXF PDF DXF 1200 80.3 72.1 30 3032 3100
1000 HGP1000AW1C2000 PDF DXF PDF DXF 1200 63.51 72 26.12 2025 3000
800 HGP0800AW1S0000 PDF DXF PDF DXF 960 62.57 52 26.46 1850 3000
800 HGP0800AW3S0000 PDF DXF PDF DXF 960 65.8 57.4 27.2 1390 3000
800 HGP0800AW3C1000 PDF DXF PDF DXF 960 80.22 72.06 30 1600 3000
900 HGP0900AW3C1000 PDF DXF PDF DXF 1080 80.08 72.06 29.92 1919 3300
700 HGP0700AW1S0000 PDF DXF PDF DXF 840 62.57 52 25.7 1486 2900
700 HGP0700AW3C0000 PDF DXF PDF DXF 840 65.8 57.4 25.1 1600 2900
700 HGP0700AW3S0000 PDF DXF PDF DXF 840 65.8 57.4 25.1 1584 2900
700 HGP0700AW1C1000 PDF DXF PDF DXF 840 62.57 52 26.46 1570 2900
600 HGP0600AW1C0000 PDF DXF PDF DXF 720 62.57 52 25.7 1250 2700
600 HGP0600AW3C0000 PDF DXF PDF DXF 720 65.77 57.13 26.32 1244 2700
600 HGP0600AW3C1000 PDF DXF PDF DXF 720 65.77 57.13 26.32 1244 2700
600 HGP0600AW3C2000 PDF DXF PDF DXF 720 65.77 57.13 26.32 1244 2700
500 HGP0500AW1C0000 PDF DXF PDF DXF 590 62.57 52 25.7 1025 3100
500 HGP0500AW1C1000 PDF DXF PDF DXF 590 62.57 52 24.38 1025 3100
450 HGP0450AW1C0000 PDF DXF PDF DXF 515 62.57 52 25.7 1010 2800
450 HGP0450AW0S0000 515 45 45 24 800 2800
400 HGP0400AW1C1000 PDF DXF PDF DXF 477 70 20 20 800 2600
350 HGP0350AW1S0000 PDF DXF PDF DXF 414 70 20 20 640 2200
350 HGP0350AW3C1000 PDF DXF PDF DXF 414 53.86 45.4 21.73 673 2200
350 HGP0350AW3C0000 PDF DXF PDF DXF 414 53.86 45.4 21.73 670 2200
350 HGP0350AW1C2000 PDF DXF PDF DXF 414 70 20 20 650 2200
300 HGP0300AW3C1000 PDF DXF PDF DXF 361 53.86 45.4 21.73 623 2100
300 HGP0300AW1C2000 PDF DXF PDF DXF 361 70 20 20 640 2100
200 HGP0200AW3C0000 PDF DXF PDF DXF 240 52.58 39.5 17.73 475 1600
250 HGP0250AW0S0000 PDF DXF PDF DXF 302 67 17 13.75 350 1800
200 HGP0200AW3S0000 PDF DXF PDF DXF 240 52.58 39.5 17.73 470 1600
250 HGP0250AW0C0000 PDF DXF PDF DXF 302 68.5 17 13.75 395 1800
150 HGP0150AW3C0000 PDF DXF PDF DXF 180 52.58 39.5 17.73 405 1200
150 HGP0150AW3C1000 PDF DXF PDF DXF 180 52.58 39.07 17.73 405 1200
125 HGP0125AW3C1000 PDF DXF PDF DXF 156 38.6 39.5 13.5 291 1000
125 HGP0125AW1C1000 PDF DXF PDF DXF 156 56.15 17.66 16.33 320 1000
100 HGP0100AW0C0000 PDF DXF PDF DXF 124 56 17 11.5 205 750
100 HGP0100AW0S0000 PDF DXF PDF DXF 124 56 17 11.5 200 750
100 HGP0100AW3C2000 PDF DXF PDF DXF 124 37.58 39.15 13.73 271 750
75 HGP0075AW0S0000 PDF DXF PDF DXF 96 30.75 17 12.1 140 650
75 HGP0075AW3S0000 PDF DXF PDF DXF 96 38.6 39.5 13.5 246 650
75 HGP0075AW3C1000 PDF DXF PDF DXF 96 38.6 39.5 13.5 248 650
60 HGP0060AW3C1000 PDF DXF PDF DXF 77 38.6 39.5 13.5 241 675
60 HGP0060AW3C2000 PDF DXF PDF DXF 77 37.58 39.15 13.73 241 675
60 HGP0060AW0S0000 PDF DXF PDF DXF 77 30.75 17 11.5 135 675
60 HGP0060AW0C1000 PDF DXF PDF DXF 77 30.75 17 11.5 143 675
50 HGP0050AW0C1000 PDF DXF PDF DXF 65 30.75 17.24 11.5 115 550
50 HGP0050AW3C0000 PDF DXF PDF DXF 65 38.6 39.5 13.5 231 550
50 HGP0050AW0C2000 PDF DXF PDF DXF 65 30.75 17 11.5 138 560
40 HGP0040AW1C2000 PDF DXF PDF DXF 52 31.55 17.5 12.54 190 500
30 HGP0030AW3C0000 PDF DXF PDF DXF 40 32.7 33 13.73 145 300
25 HGP0025AW1S0000 PDF DXF PDF DXF 34 20.7 17.62 12.52 88 250
25 HGP0025AW3C1000 PDF DXF PDF DXF 34 32.7 33.4 13.7 131 250
25 HGP0025AW0C1000 PDF DXF PDF DXF 34 19.75 17.24 10.23 70 310
25 HGP0025AW1C2000 PDF DXF PDF DXF 34 20.52 17.62 12.52 88 250
20 HGP0020AW0S0000 PDF DXF PDF DXF 27 19.75 17 9.97 61 275
20 HGP0020AW1C0000 PDF DXF PDF DXF 27 20.7 17.62 12.52 90 275
20 HGP0020AW1C1000 PDF DXF PDF DXF 27 20.7 17.62 12.52 90 275
20 HGP0020AW3S0000 PDF DXF PDF DXF 27 32.7 33.4 13.7 125 275
15 HGP0015AW0S0000 PDF DXF PDF DXF 21 19.75 17 9.84 51 250
15 HGP0015AW3S0000 PDF DXF PDF DXF 21 32.7 33 13.73 125 250
15 HGP0015AW1C2000 PDF DXF PDF DXF 21 20.52 17.62 12.52 80 250
10 HGP0010AW1S0000 PDF DXF PDF DXF 14 20.52 17.62 12.52 66 175
10 HGP0010AW1C1000 PDF DXF PDF DXF 14 20.52 17.62 12.52 70 175
10 HGP0010AW3C1000 PDF DXF PDF DXF 14 33.24 33 13.73 113 175
10 HGP0010AW3C2000 PDF DXF PDF DXF 14 33.24 33 13.73 113 175
10 HGP0010AW0C1000 PDF DXF PDF DXF 14 19.75 17 9.79 48 175
10 HGP0010AW0C2000 PDF DXF PDF DXF 14 19.75 17 9.79 48 185
5 HGP0005AW1C0000 PDF DXF PDF DXF 7.6 20.52 17.62 12.52 65 150
7.5 HGP0008AW3S0000 PDF DXF PDF DXF 11 32.7 33 13.73 105 150
5 HGP0005AW0C0000 PDF DXF PDF DXF 7.6 19.75 17 9.79 40 150
1250 HGP1250AW3S0000 PDF DXF PDF DXF 1500 80.5 81.5 30 3080 5100
1250 HGP1250AW3C2000 PDF DXF PDF DXF 1500 80.5 81.5 30 3100 5100
900 HGP0900AW1C0000 PDF DXF PDF DXF 1080 62.57 72 26.46 2020 3300
800 HGP0800AW1C2000 PDF DXF PDF DXF 960 62.57 52 26.46 1870 3000
1000 HGP1000AW3C2000 PDF DXF PDF DXF 1200 80.32 72 29.97 3051 3600
1250 HGP1250AW1C2000 PDF DXF PDF DXF 1500 78.5 72 27.19 2435 3300
700 HGP0700AW3C2000 PDF DXF PDF DXF 840 80.22 72.06 30 2598 2900
600 HGP0600AW0C2000 PDF DXF PDF DXF 720 45 46.5 24 1140 2710
600 HGP0600AW1C2000 PDF DXF PDF DXF 720 62.57 52 24.38 1250 2700
500 HGP0500AW3S0000 PDF DXF PDF DXF 590 65.77 57.13 26.32 1000 3100
500 HGP0500AW1C2000 PDF DXF PDF DXF 590 62.57 52 24.38 1025 3100
500 HGP0500AW0C0000 PDF DXF PDF DXF 590 45 46.25 24 875 3100
450 HGP0450AW3C0000 PDF DXF PDF DXF 515 65.77 57.13 26.32 1004 2800
450 HGP0450AW3S0000 PDF DXF PDF DXF 515 65.77 57.13 26.32 995 2800
450 HGP0450AW0C1000 PDF DXF PDF DXF 515 45 46.2 24 850 2175
450 HGP0450AW1C2000 PDF DXF PDF DXF 515 62.57 52 24.38 1010 2800
450 HGP0450AW3C2000 PDF DXF PDF DXF 515 65.77 57.13 26.32 1004 2800
400 HGP0400AW1S0000 PDF DXF PDF DXF 477 70 20 20 790 2600
400 HGP0400AW3C0000 PDF DXF PDF DXF 477 65.77 57.13 26.32 995 2600
400 HGP0400AW1C2000 PDF DXF PDF DXF 477 70 20 20 800 2600
400 HGP0400AW1C0000 PDF DXF PDF DXF 477 70 20 20 800 2600
400 HGP0400AW0C1000 PDF DXF PDF DXF 477 45 46.2 24 700 2600
400 HGP0400AW0C2000 PDF DXF PDF DXF 477 45 46.19 24 700 2610
350 HGP0350AW1C0000 PDF DXF PDF DXF 414 70 20 20 650 2200
350 HGP0350AW0C2000 PDF DXF PDF DXF 414 81.5 18.5 15 540 2210
300 HGP0300AW0C0000 PDF DXF PDF DXF 361 68.5 17.24 15 490 2100
300 HGP0300AW1C1000 PDF DXF PDF DXF 361 70 20 20 640 2100
250 HGP0250AW3C2000 PDF DXF PDF DXF 302 53.86 45.14 21.73 555 1800
300 HGP0300AW3C2000 PDF DXF PDF DXF 361 53.86 45.14 21.73 620 2100
250 HGP0250AW1C0000 PDF DXF PDF DXF 302 70 20 20 545 1800
250 HGP0250AW1C1000 PDF DXF PDF DXF 302 70 20 20 545 1800
250 HGP0250AW3C1000 PDF DXF PDF DXF 302 53.86 45.14 21.73 555 1800
250 HGP0250AW0C2000 PDF DXF PDF DXF 302 68.5 17 13.75 397 1810
250 HGP0250AW1C2000 PDF DXF PDF DXF 302 70 20 20 545 1800
250 HGP0250AW0C1000 PDF DXF PDF DXF 302 68.5 17 13.75 397 1800
250 HGP0250AW0C000T 302 68.5 17 13.75 395 1800
200 HGP0200AW3C1000 PDF DXF PDF DXF 240 52.58 39.07 17.73 475 1600
200 HGP0200AW0C2000 PDF DXF PDF DXF 240 68.5 17 13.75 358 1610
150 HGP0150AW0S0000 PDF DXF PDF DXF 180 56 17 13.19 258 1200
150 HGP0150AW3S0000 PDF DXF PDF DXF 180 52.58 39.5 17.73 400 1200
150 HGP0150AW1C2000 PDF DXF PDF DXF 180 56.15 17.66 16.33 360 1200
150 HGP0150AW3C2000 PDF DXF PDF DXF 180 52.58 39.07 17.73 405 1200
150 HGP0150AW0C0000 PDF DXF PDF DXF 180 56 17 13.19 265 1200
150 HGP0150AW0C1000 PDF DXF PDF DXF 180 56 17 13.19 267 1200
125 HGP0125AW0S0000 PDF DXF PDF DXF 156 56 17 13.04 220 1000
125 HGP0125AW1C0000 PDF DXF PDF DXF 156 56.15 17.66 16.33 320 1000
125 HGP0125AW1S0000 PDF DXF PDF DXF 156 56.15 17.66 16.33 315 1000
100 HGP0100AW3C1000 PDF DXF PDF DXF 124 38.6 39.5 13.5 274 750
100 HGP0100AW3C0000 PDF DXF PDF DXF 124 38.6 39.5 13.5 271 750
100 HGP0100AW0C1000 PDF DXF PDF DXF 124 56 17 11.5 207 750
100 HGP0100AW1C2000 PDF DXF PDF DXF 124 56.15 17.66 16.33 300 750
75 HGP0075AW3C0000 PDF DXF PDF DXF 96 38.6 39.5 13.5 248 650
75 HGP0075AW0C1000 PDF DXF PDF DXF 96 30.75 17.25 12.1 148 650
60 HGP0060AW1C1000 PDF DXF PDF DXF 77 31.7 17.8 12.5 206 675
60 HGP0060AW1C2000 PDF DXF PDF DXF 77 31.55 17.5 12.54 205 675
50 HGP0050AW3S0000 PDF DXF PDF DXF 65 38.6 39.5 13.5 229 550
50 HGP0050AW1C2000 PDF DXF PDF DXF 65 31.55 17.5 12.54 200 550
40 HGP0040AW3C0000 PDF DXF PDF DXF 52 38.6 39.5 13.5 221 500
40 HGP0040AW3S0000 PDF DXF PDF DXF 52 38.6 39.5 13.5 220 500
40 HGP0040AW3C2000 PDF DXF PDF DXF 52 37.58 39.15 13.73 221 500
40 HGP0040AW1C0000 PDF DXF PDF DXF 52 31.55 17.5 12.54 190 500
30 HGP0030AW0S0000 PDF DXF PDF DXF 40 30.75 17 11.38 81 300
30 HGP0030AW1S0000 PDF DXF PDF DXF 40 31.55 17.5 12.54 145 300
30 HGP0030AW3S0000 PDF DXF PDF DXF 40 32.7 33 13.73 144 300
30 HGP0030AW1C2000 PDF DXF PDF DXF 40 31.55 17.5 12.54 150 300
30 HGP0030AW0C0000 PDF DXF PDF DXF 40 30.75 17 11.38 85 300
25 HGP0025AW0S0000 PDF DXF PDF DXF 34 19.75 17 10.23 63 250
20 HGP0020AW3C1000 PDF DXF PDF DXF 27 32.7 33.4 13.7 126 275
25 HGP0025AW3C2000 PDF DXF PDF DXF 34 33.24 33 13.73 131 250
20 HGP0020AW1S0000 PDF DXF PDF DXF 27 20.7 17.62 12.52 86 275
15 HGP0015AW0C0000 PDF DXF PDF DXF 21 19.75 17 9.84 55 250
15 HGP0015AW3C0000 PDF DXF PDF DXF 21 32.7 33 13.73 126 250
15 HGP0015AW3C2000 PDF DXF PDF DXF 21 33.24 33 13.73 126 250
10 HGP0010AW1C2000 PDF DXF PDF DXF 14 20.52 17.62 12.52 70 175
7.5 HGP0008AW1C0000 PDF DXF PDF DXF 11 20.52 17.62 12.52 70 150
7.5 HGP0008AW1S0000 PDF DXF PDF DXF 11 20.52 17.62 12.52 66 150
7.5 HGP0008AW3C0000 PDF DXF PDF DXF 11 32.7 33 13.73 106 150
5 HGP0005AW1S0000 PDF DXF PDF DXF 7.6 20.52 17.62 12.52 61 150
1250 HGP1250AW3C0000 PDF DXF PDF DXF 1500 80.5 81.5 30 3500 5100
1000 HGP1000AW1C1000 PDF DXF PDF DXF 1200 63.5 72 26.1 2025 3000
1000 HGP1000AW1S0000 PDF DXF PDF DXF 1200 63.51 72 26.1 2000 3100
1000 HGP1000AW3C0000 PDF DXF PDF DXF 1200 80.32 72.08 29.97 3048 3100
1250 HGP1250AW1C1000 PDF DXF PDF DXF 1500 78.5 72 27.19 2435 3300
1000 HGP1000AW3C1000 PDF DXF PDF DXF 1200 80.3 72.1 30 3051 3600
900 HGP0900AW1S0000 PDF DXF PDF DXF 1080 62.57 72 26.46 2000 3300
900 HGP0900AW3S0000 PDF DXF PDF DXF 1080 80.22 72.06 30 3032 3300
900 HGP0900AW1C1000 PDF DXF PDF DXF 1080 63.5 72 26.46 2025 3300
900 HGP0900AW1C2000 PDF DXF PDF DXF 1080 62.57 72 26.46 2020 3300
800 HGP0800AW1C0000 PDF DXF PDF DXF 960 62.57 52 26.46 1870 3000
700 HGP0700AW3C1000 PDF DXF PDF DXF 840 80.22 72.06 30 2598 2900
700 HGP0700AW1C2000 PDF DXF PDF DXF 840 62.57 52 26.46 1570 2900
800 HGP0800AW3C2000 PDF DXF PDF DXF 960 80.22 72.06 30 1600 3000
600 HGP0600AW1S0000 PDF DXF PDF DXF 720 62.57 52 25.7 1236 2700
600 HGP0600AW0C1000 PDF DXF PDF DXF 720 45 46.5 24 1140 1975
500 HGP0500AW1S0000 PDF DXF PDF DXF 590 62.57 52 25.7 1011 3100
450 HGP0450AW1C1000 PDF DXF PDF DXF 515 62.57 52 24.38 1010 2800
450 HGP0450AW0C2000 PDF DXF PDF DXF 515 45 46.19 24 850 2810
400 HGP0400AW0S0000 PDF DXF PDF DXF 477 40 41.21 20.53 680 2600
400 HGP0400AW3C1000 PDF DXF PDF DXF 477 65.77 57.13 26.32 995 2600
400 HGP0400AW3S0000 PDF DXF PDF DXF 477 65.77 57.13 26.32 985 2600
350 HGP0350AW3S0000 PDF DXF PDF DXF 414 53.86 45.4 21.73 655 2200
300 HGP0300AW0C1000 PDF DXF PDF DXF 361 68.5 17.24 15 492 2100
200 HGP0200AW1C2000 PDF DXF PDF DXF 240 70 20 20 500 1600
200 HGP0200AW1C0000 PDF DXF PDF DXF 240 70 20 20 500 1600
200 HGP0200AW0C1000 PDF DXF PDF DXF 240 68.5 17 13.75 352 1600
200 HGP0200AW1C1000 PDF DXF PDF DXF 240 70 20 20 500 1600
200 HGP0200AW0S0000 PDF DXF PDF DXF 240 67 17 13.75 350 1600
150 HGP0150AW1C1000 PDF DXF PDF DXF 180 56.15 17.66 16.33 360 1200
125 HGP0125AW3C0000 PDF DXF PDF DXF 156 38.6 39.5 13.5 291 1000
125 HGP0125AW3S0000 PDF DXF PDF DXF 156 38.6 39.5 13.5 289 1000
125 HGP0125AW1C2000 PDF DXF PDF DXF 156 56.15 17.66 16.33 320 1000
150 HGP0150AW0C2000 PDF DXF PDF DXF 180 56 17 13.19 267 1210
125 HGP0125AW0C0000 PDF DXF PDF DXF 156 56 17 13.04 225 1000
125 HGP0125AW0C1000 PDF DXF PDF DXF 156 56 17 13.04 227 1000
100 HGP0100AW1C0000 PDF DXF PDF DXF 124 56.15 17.66 16.33 300 750
100 HGP0100AW1C1000 PDF DXF PDF DXF 124 56.15 17.66 16.33 300 750
100 HGP0100AW3S0000 PDF DXF PDF DXF 124 38.6 39.5 13.5 269 750
100 HGP0100AW0C2000 PDF DXF PDF DXF 124 56 17 11.5 207 760
60 HGP0060AW1C0000 PDF DXF PDF DXF 77 31.55 17.5 12.54 205 675
60 HGP0060AW0C0000 PDF DXF PDF DXF 77 30.75 17 11.5 140 675
50 HGP0050AW3C2000 PDF DXF PDF DXF 65 37.58 39.15 13.73 231 550
50 HGP0050AW0C0000 PDF DXF PDF DXF 65 30.75 17 11.5 114 550
50 HGP0050AW0S0000 PDF DXF PDF DXF 65 30.75 17 11.5 109 550
50 HGP0050AW1S0000 PDF DXF PDF DXF 65 31.7 17.6 12.5 147 550
40 HGP0040AW0C1000 PDF DXF PDF DXF 52 30.75 17.25 11.5 128 500
30 HGP0030AW1C0000 PDF DXF PDF DXF 40 31.55 17.5 12.54 150 300
30 HGP0030AW0C1000 PDF DXF PDF DXF 40 30.75 17 11.38 88 300
30 HGP0030AW0C2000 PDF DXF PDF DXF 40 30.75 17 11.38 88 310
25 HGP0025AW3S0000 PDF DXF PDF DXF 34 32.7 33.4 13.7 130 250
20 HGP0020AW3C2000 PDF DXF PDF DXF 27 32.7 33.39 13.74 130 275
20 HGP0020AW0C0000 PDF DXF PDF DXF 27 19.75 17 9.97 65 275
20 HGP0020AW3C0000 PDF DXF PDF DXF 27 32.7 33.4 13.7 126 275
20 HGP0020AW1C2000 PDF DXF PDF DXF 27 20.52 17.62 12.52 90 275
10 HGP0010AW1C0000 PDF DXF PDF DXF 14 20.52 17.62 12.52 70 175
15 HGP0015AW1C0000 PDF DXF PDF DXF 21 20.7 17.62 12.52 80 250
15 HGP0015AW0C2000 PDF DXF PDF DXF 21 19.75 17 10.14 58 260
10 HGP0010AW0S0000 PDF DXF PDF DXF 14 19.75 17 9.79 41 175
7.5 HGP0008AW1C1000 PDF DXF PDF DXF 11 20.52 17.62 12.52 70 150
7.5 HGP0008AW0C2000 PDF DXF PDF DXF 11 19.75 17 9.79 48 160
7.5 HGP0008AW1C2000 PDF DXF PDF DXF 11 20.52 17.62 12.52 70 150
7.5 HGP0008AW0C0000 PDF DXF PDF DXF 11 19.75 17 9.79 45 150
5 HGP0005AW3C1000 PDF DXF PDF DXF 7.6 33.24 33 13.73 101 150
7.5 HGP0008AW0C1000 PDF DXF PDF DXF 11 19.75 17 9.79 48 150
5 HGP0005AW1C2000 PDF DXF PDF DXF 7.6 20.52 17.62 12.52 65 150
5 HGP0005AW1C1000 PDF DXF PDF DXF 7.6 20.52 17.62 12.52 65 150
5 HGP0005AW0S0000 PDF DXF PDF DXF 7.6 19.75 17 9.79 36 150
1250 HGP1250AW1S0000 PDF DXF PDF DXF 1500 78.5 72 27.19 2415 5100
1000 HGP1000AW1C0000 PDF DXF PDF DXF 1200 63.5 72 26.1 2020 3100
1250 HGP1250AW1C0000 PDF DXF PDF DXF 1500 78.5 72 27.19 2435 5100
900 HGP0900AW3C2000 PDF DXF PDF DXF 1080 80.22 72.06 30 3048 3300
800 HGP0800AW3C0000 PDF DXF PDF DXF 960 65.8 57.42 27.2 1600 3000
900 HGP0900AW3C0000 PDF DXF PDF DXF 1080 80.22 72.06 30 3048 3300
800 HGP0800AW1C1000 PDF DXF PDF DXF 960 62.57 52 26.46 1675 3000
700 HGP0700AW1C0000 PDF DXF PDF DXF 840 62.57 52 26.46 1500 2900
600 HGP0600AW0S0000 PDF DXF PDF DXF 720 45 46.19 24.41 950 1975
600 HGP0600AW3S0000 PDF DXF PDF DXF 720 65.77 57.13 26.32 1224 2700
600 HGP0600AW1C1000 PDF DXF PDF DXF 720 62.57 52 24.38 1250 2700
500 HGP0500AW3C0000 PDF DXF PDF DXF 590 65.77 57.13 26.32 1019 3100
500 HGP0500AW3C1000 PDF DXF PDF DXF 590 65.77 57.13 26.32 1019 3100
500 HGP0500AW3C2000 PDF DXF PDF DXF 590 65.77 57.13 26.32 1019 3100
500 HGP0500AW0S0000 PDF DXF PDF DXF 590 45 45 24 840 3100
500 HGP0500AW0C1000 PDF DXF PDF DXF 590 45 46.3 24 885 2500
500 HGP0500AW0C2000 PDF DXF PDF DXF 590 45 46.25 24 885 3110
450 HGP0450AW1S0000 PDF DXF PDF DXF 515 62.57 52 25.74 1000 2800
450 HGP0450AW3C1000 PDF DXF PDF DXF 515 65.77 57.13 26.32 1004 2800
400 HGP0400AW0C0000 PDF DXF PDF DXF 477 45 46.19 24 690 2600
400 HGP0400AW3C2000 PDF DXF PDF DXF 477 65.77 57.13 26.32 995 2600
350 HGP0350AW1C1000 PDF DXF PDF DXF 414 70 20 20 650 2200
350 HGP0350AW3C2000 PDF DXF PDF DXF 414 53.86 45.14 21.73 673 2200
350 HGP0350AW0C0000 PDF DXF PDF DXF 414 81.5 18.5 15 535 2200
350 HGP0350AW0C1000 PDF DXF PDF DXF 414 81.5 18.5 15 540 2200
350 HGP0350AW0S0000 PDF DXF PDF DXF 414 81.5 18.5 15 515 2200
300 HGP0300AW1C0000 PDF DXF PDF DXF 361 70 20 20 640 2100
300 HGP0300AW1S0000 PDF DXF PDF DXF 361 70 20 20 630 2100
300 HGP0300AW3C0000 PDF DXF PDF DXF 361 53.86 45.4 21.73 620 2100
300 HGP0300AW3S0000 PDF DXF PDF DXF 361 53.86 45.4 21.73 615 2100
300 HGP0300AW0S0000 PDF DXF PDF DXF 361 68.5 17.31 15 477 2100
300 HGP0300AW0C2000 PDF DXF PDF DXF 361 68.5 17.24 15.5 492 2110
250 HGP0250AW3S0000 PDF DXF PDF DXF 302 53.86 45.4 21.73 550 1800
200 HGP0200AW1S0000 PDF DXF PDF DXF 240 70 20 20 496 1600
250 HGP0250AW1S0000 PDF DXF PDF DXF 302 70 20 20 535 1800
250 HGP0250AW3C0000 PDF DXF PDF DXF 302 53.86 45.4 21.73 555 1800
200 HGP0200AW3C2000 PDF DXF PDF DXF 240 52.58 39.07 17.73 475 1600
150 HGP0150AW1C0000 PDF DXF PDF DXF 180 56.15 17.66 16.33 360 1200
150 HGP0150AW1S0000 PDF DXF PDF DXF 180 56.15 17.66 16.33 353 1200
200 HGP0200AW0C0000 PDF DXF PDF DXF 240 68.5 17 13.75 350 1600
125 HGP0125AW0C2000 PDF DXF PDF DXF 156 56 17 13.04 227 1010
125 HGP0125AW3C2000 PDF DXF PDF DXF 156 37.58 39.15 13.73 291 1000
100 HGP0100AW1S0000 PDF DXF PDF DXF 124 56.15 17.66 16.33 295 750
75 HGP0075AW3C2000 PDF DXF PDF DXF 96 37.58 39.15 13.73 248 650
75 HGP0075AW1S0000 PDF DXF PDF DXF 96 31.7 17.8 12.54 205 650
75 HGP0075AW1C1000 PDF DXF PDF DXF 96 31.7 17.8 12.54 210 650
75 HGP0075AW1C0000 PDF DXF PDF DXF 96 31.7 17.8 12.54 210 650
75 HGP0075AW0C2000 PDF DXF PDF DXF 96 30.75 17 12 148 660
75 HGP0075AW1C2000 PDF DXF PDF DXF 96 31.55 17.5 12.54 210 650
75 HGP0075AW0C0000 PDF DXF PDF DXF 96 30.75 17 12.1 145 650
60 HGP0060AW3C0000 PDF DXF PDF DXF 77 38.6 39.5 13.5 241 675
60 HGP0060AW3S0000 PDF DXF PDF DXF 77 37.58 39.5 13.73 239 675
60 HGP0060AW1S0000 PDF DXF PDF DXF 77 31.55 17.5 12.54 200 675
60 HGP0060AW0C2000 PDF DXF PDF DXF 77 30.75 17 11.5 143 685
50 HGP0050AW1C1000 PDF DXF PDF DXF 65 31.65 17.6 12.5 153 550
50 HGP0050AW1C0000 PDF DXF PDF DXF 65 31.7 17.6 12.5 152 550
40 HGP0040AW0S0000 PDF DXF PDF DXF 52 30.75 17 11.5 120 500
40 HGP0040AW1S0000 PDF DXF PDF DXF 52 31.55 17.5 12.54 185 500
40 HGP0040AW3C1000 PDF DXF PDF DXF 52 38.6 39.5 13.5 221 500
40 HGP0040AW1C1000 PDF DXF PDF DXF 52 31.55 17.5 12.54 190 500
40 HGP0040AW0C0000 PDF DXF PDF DXF 52 30.75 17 11.5 125 500
30 HGP0030AW3C2000 PDF DXF PDF DXF 40 33.24 33 13.73 145 300
40 HGP0040AW0C2000 PDF DXF PDF DXF 52 30.75 17 11.5 128 510
30 HGP0030AW1C1000 PDF DXF PDF DXF 40 31.55 17.5 12.54 150 300
30 HGP0030AW3C1000 PDF DXF PDF DXF 40 32.7 33.4 13.73 148 300
25 HGP0025AW0C0000 PDF DXF PDF DXF 34 19.75 17 10.23 67 310
25 HGP0025AW1C0000 PDF DXF PDF DXF 34 20.7 17.62 12.52 92 250
25 HGP0025AW3C0000 PDF DXF PDF DXF 34 32.7 33.4 13.7 131 250
25 HGP0025AW1C1000 PDF DXF PDF DXF 34 20.7 17.62 12.52 88 250
25 HGP0025AW0C2000 PDF DXF PDF DXF 34 19.75 17 10.65 70 260
20 HGP0020AW0C2000 PDF DXF PDF DXF 27 19.75 17 10.14 67 285
20 HGP0020AW0C1000 PDF DXF PDF DXF 27 19.75 17 9.97 67 275
15 HGP0015AW1S0000 PDF DXF PDF DXF 21 20.7 17.62 12.52 76 250
15 HGP0015AW0C1000 PDF DXF PDF DXF 21 19.75 17.24 9.84 58 250
15 HGP0015AW1C1000 PDF DXF PDF DXF 21 20.7 17.62 12.52 80 250
15 HGP0015AW3C1000 PDF DXF PDF DXF 21 33.24 33 13.73 126 250
10 HGP0010AW3C0000 PDF DXF PDF DXF 14 32.7 33 13.73 113 175
10 HGP0010AW3S0000 PDF DXF PDF DXF 14 32.7 33 13.73 112 175
10 HGP0010AW0C0000 PDF DXF PDF DXF 14 19.75 17 9.79 45 175
7.5 HGP0008AW0S0000 PDF DXF PDF DXF 11 19.75 17 9.79 41 150
7.5 HGP0008AW3C1000 PDF DXF PDF DXF 11 33.24 33 13.73 106 150
7.5 HGP0008AW3C2000 PDF DXF PDF DXF 11 33.24 33 13.73 106 150
5 HGP0005AW3C0000 PDF DXF PDF DXF 7.6 32.7 33 13.73 101 150
5 HGP0005AW3S0000 PDF DXF PDF DXF 7.6 32.7 33 13.73 100 150
5 HGP0005AW0C2000 PDF DXF PDF DXF 7.6 19.75 17 9.79 43 160
5 HGP0005AW3C2000 PDF DXF PDF DXF 7.6 32.7 33.39 13.74 101 150
5 HGP0005AW0C1000 PDF DXF PDF DXF 7.6 19.75 17 9.79 43 150
