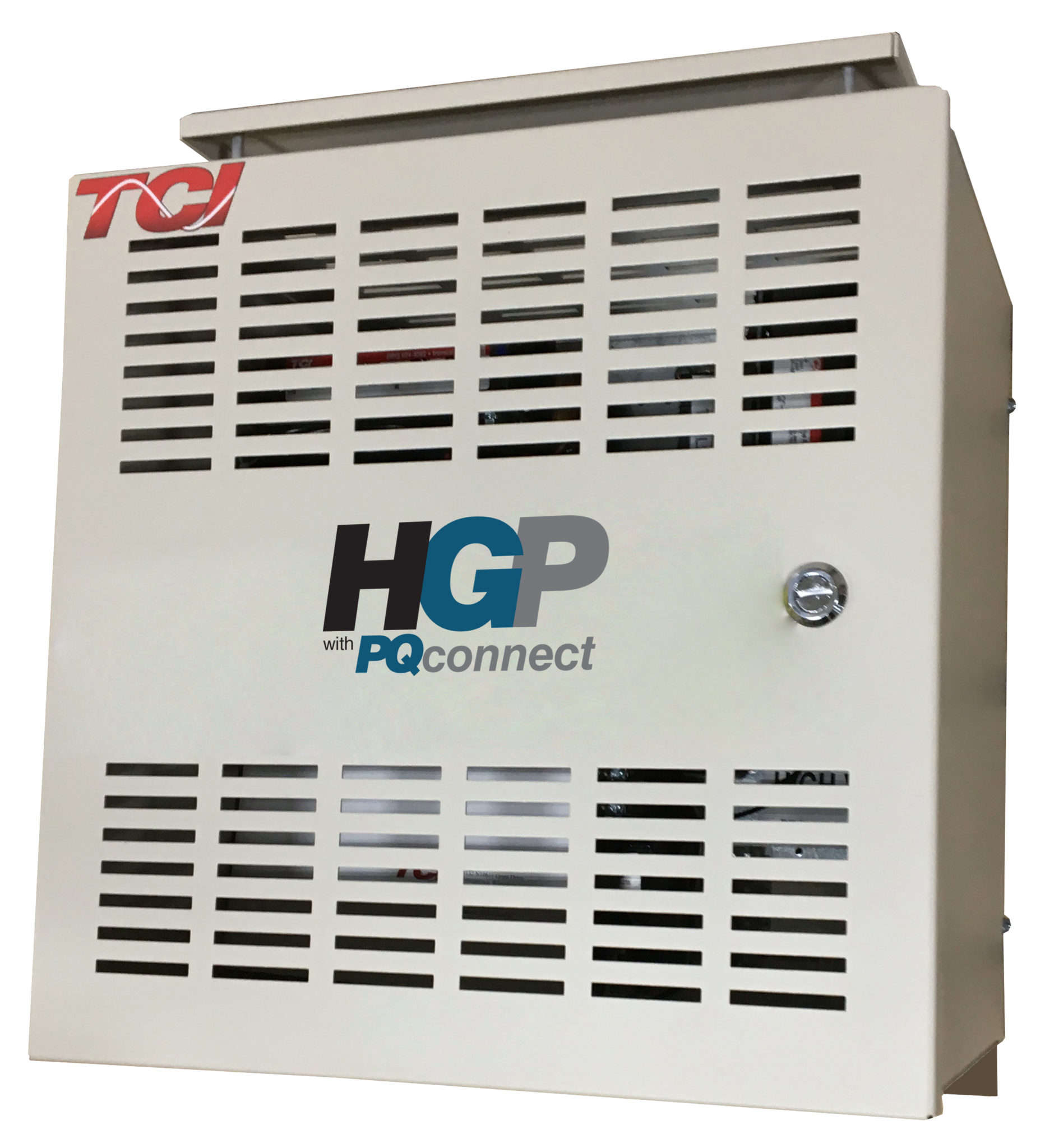

HGP0025AW1C1000

HGP, 480V, 25HP, 3 Phase, 60 Hz, Type 1, Passive Harmonic Filter, Contactor, PQconnect Option

SKU: HGP0025AW1C1000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF)

Additional information

Specifications

Rated Voltage

480
Horsepower (HP)

25.0
Amps

34
kVAR

8
Enclosure Type

UL Type 1
Watts Loss

250.0
Phase

3
Hertz (Hz)

60
Isolation Contactor

Contactor
Connectivity

PQconnect w/ Modbus RTU
Temp Rise

0
Model

Standard
Dimensions
  • Height: 20.7 in
  • Width: 17.62 in
  • Depth: 12.52 in
Weight 88.0 lbs
