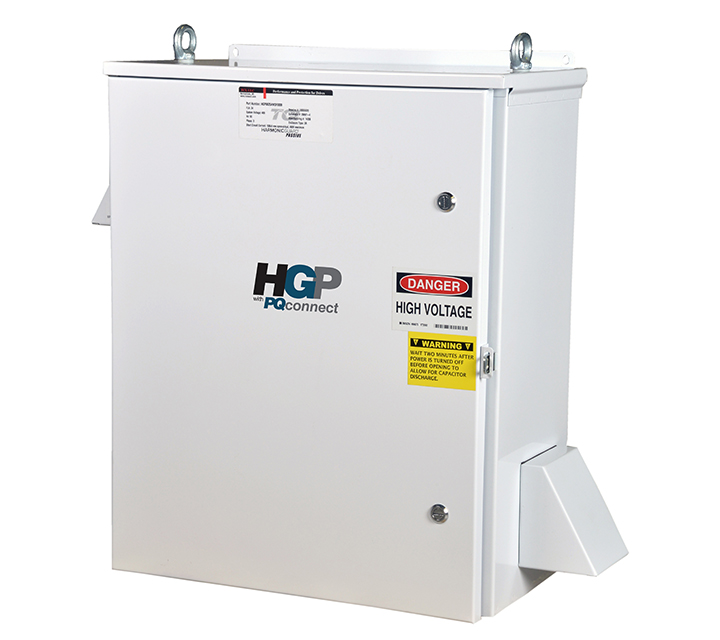

HGP0100AW3C1000

HGP, 480V, 100HP, 3 Phase, 60 Hz, Type 3R, Passive Harmonic Filter, Contactor, PQconnect Option

SKU: HGP0100AW3C1000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF)

Additional information

Specifications

Rated Voltage 480
Horsepower (HP) 100.0
Amps 124
Enclosure Type UL Type 3R
Watts Loss 750.0
Phase 3
Hertz (Hz) 60
Isolation Contactor Contactor
Connectivity PQconnect w/ Modbus RTU
Model Standard
Country of Origin US
Dimensions
  • Height: 38.6 in
  • Width: 39.5 in
  • Depth: 13.5 in
Weight 274.0 lbs
