Designed with ECMs in Mind.
As part of our HSD product line, the HSE Kit offers harmonic mitigation in compliance with IEEE-519 while also providing maximum flexibility of enclosure panel construction. The HSE is specifically designed with Electrically Commutated Motors (ECMs) in mind. High quality components and a robust design allow this passive filter to deliver best in class performance under the harshest conditions and in the most challenging applications.

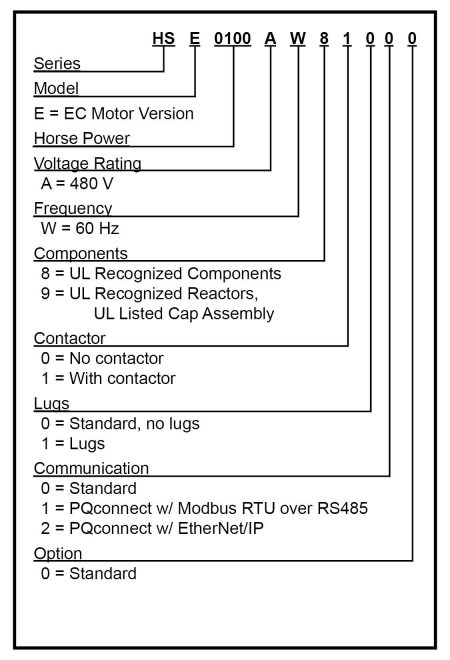

HSE kits come standard with the required line reactor, tuning reactor, capacitors, and/or capacitor brackets, and Contactor. These are denoted by the (8) selection of kits. For a capacitor assembly, please reference the (9) kit construction.
HSE Kit Component Drawings (8)
Each HSE (8) kit package contains necessary line reactor, tuning reactor, loose capacitors, capacitor brackets, and contactor. All components are UL Recognized.
HSE Kit Component Drawings (9)
Each HSE (9) kit package contains necessary line reactor, tuning reactor, and preassembled capacitor banks. All reactors are UL Recognized. All capacitor banks are UL listed.
Kit Documentation
PQconnect Information
HSE 480 V (8) Kits
| HP | HGP CP Kit | PQconnect Option | Line Reactor | Tuning Reactor | Capacitor 1 | Bracket 1 | Capacitor 2 | Bracket 2 | Contactor | ||||||||||||||||||||||
| Part Number | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | |||||||||
| 5 | HSE0005AW90000 | PKPQ5 | PKPQ5 | KDRF1FE | 1 | KDRF1FE | KDRF1FE | KTR007A65HE | 1 | KTR007A65HE | KTR007A65HE | 29338 | 3 | 29338 | 29338 | 32272 | 1 | 32272 | 32272 | ||||||||||||
| 7.5 | HSE0008AW90000 | PKPQ5 | PKPQ5 | KDRF2FE | 1 | KDRF2FE | KDRF2FE | KTR01A65HE | 1 | KTR01A65HE | KTR01A65HE | 29370 | 6 | 29370 | 29370 | 32272 | 1 | 32272 | 32272 | ||||||||||||
| 10 | HSE0010AW90000 | PKPQ5 | PKPQ5 | KDRH1FE | 1 | KDRH1FE | KDRH1FE | KTR013A65HE | 1 | KTR013A65HE | KTR013A65HE | 29340 | 3 | 29340 | 29340 | 32272 | 1 | 32272 | 32272 | ||||||||||||
| 15 | HSE0015AW90000 | PKPQ5 | PKPQ5 | KDRG2FE | 1 | KDRG2FE | KDRG2FE | KTR021A65HE | 1 | KTR021A65HE | KTR021A65HE | 32608 | 1 | 32608 | 32608 | KCAPBKT1D | 1 | KCAPBKT1D | KCAPBKT1D | 32272 | 1 | 32272 | 32272 | ||||||||
| 20 | HSE0020AW90000 | PKPQ5 | PKPQ5 | KDRG3FE | 1 | KDRG3FE | KDRG3FE | KTR026A65HE | 1 | KTR026A65HE | KTR026A65HE | 32162 | 1 | 32162 | 32162 | KCAPBKT1D | 1 | KCAPBKT1D | KCAPBKT1D | 32272 | 1 | 32272 | 32272 | ||||||||
| 25 | HSE0025AW90000 | PKPQ5 | PKPQ5 | KDRJ1FE | 1 | KDRJ1FE | KDRJ1FE | KTR035A65HE | 1 | KTR035A65HE | KTR035A65HE | 32163 | 1 | 32163 | 32163 | KCAPBKT1D | 1 | KCAPBKT1D | KCAPBKT1D | 32272 | 1 | 32272 | 32272 | ||||||||
| 30 | HSE0030AW90000 | PKPQ5 | PKPQ5 | KDRJ4FE | 1 | KDRJ4FE | KDRJ4FE | KTR041A65HE | 1 | KTR041A65HE | KTR041A65HE | 32608 | 2 | 32608 | 32608 | KCAPBKT2E | 1 | KCAPBKT2E | KCAPBKT2E | 32272 | 1 | 32272 | 32272 | ||||||||
| 40 | HSE0040AW90000 | PKPQ5 | PKPQ5 | KDRJ3FEX45 | 1 | KDRJ3FEX45 | KDRJ3FEX45 | KTR052A65HE | 1 | KTR052A65HE | KDRJ3FEX45 | 32162 | 2 | 32162 | 32162 | KCAPBKT2E | 1 | KCAPBKT2E | KCAPBKT2E | 32272 | 1 | 32272 | 32272 | ||||||||
| 50 | HSE0050AW90000 | PKPQ5 | PKPQ5 | KDRJ2FEX45 | 1 | KDRJ2FEX45 | KDRJ2FEX45 | KTR069A65HE | 1 | KTR069A65HE | KTR069A65HE | 32163 | 2 | 32163 | 32163 | KCAPBKT2E | 1 | KCAPBKT2E | KCAPBKT2E | 32272 | 1 | 32272 | 32272 | ||||||||
| 60 | HSE0060AW90000 | PKPQ5 | PKPQ5 | KDRS3FE | 1 | KDRS3FE | KDRS3FE | KTR8A65HE | 1 | KTR8A65HE | KTR8A65HE | 32449 | 1 | 32449 | 32449 | KCAPBKT1D | 1 | KCAPBKT1D | KCAPBKT1D | 32272 | 1 | 32272 | 32272 | ||||||||
| 75 | HSE0075AW90000 | PKPQ5 | PKPQ5 | KDRS2FE | 1 | KDRS2FE | KDRS2FE | KTR10A65HE | 1 | KTR10A65HE | KTR10A65HE | 32450 | 1 | 32450 | 32450 | KCAPBKT1B | 1 | KCAPBKT1B | KCAPBKT1B | 32272 | 1 | 32272 | 32272 | ||||||||
| 100 | HSE0100AW90000 | PKPQ5 | PKPQ5 | KDRS1SFE | 1 | KDRS1SFE | KDRS1SFE | KTR14A65HE | 1 | KTR14A65HE | KTR14A65HE | 32449 | 1 | 32449 | 32449 | KCAPBKT2E | 1 | KCAPBKT2E | KCAPBKT2E | 32448 | 1 | 32448 | 32448 | 32272 | 1 | 32272 | 32272 | ||||
| 125 | HSE0125AW90000 | PKPQ5 | PKPQ5 | KDRX2FE | 1 | KDRX2FE | KDRX2FE | KTR17A65HE | 1 | KTR17A65HE | KTR17A65HE | 32451 | 1 | 32451 | 32451 | KCAPBKT1B | 1 | KCAPBKT1B | KCAPBKT1B | 32608 | 1 | 32608 | 32608 | KCAPBKT1D | 1 | KCAPBKT1D | KCAPBKT1D | 32272 | 1 | 32272 | 32272 |
HSE 480 V (9) Kits
| HP | HGP CP Kit | PQconnect Option | KPCUL Caps | Line Reactor | Tuning Reactor | Contactor | |||||||||||||
| Part Number | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | ||||||
| 5 | HSE0005AW90000 | PKPQ5 | PKPQ5 | KPCUL00.7A65 | 1 | KPCUL007A65 | KPCUL007A65 | KDRF1FE | 1 | KDRF1FE | KDRF1FE | KTR007A65HE | 1 | KTR007A65HE | KTR007A65HE | 32272 | 1 | 32272 | 32272 |
| 7.5 | HSE0008AW90000 | PKPQ5 | PKPQ5 | KPCUL001A65 | 1 | KPCUL001A65 | KPCUL001A65 | KDRF2FE | 1 | KDRF2FE | KDRF2FE | KTR01A65HE | 1 | KTR01A65HE | KTR01A65HE | 32272 | 1 | 32272 | 32272 |
| 10 | HSE0010AW90000 | PKPQ5 | PKPQ5 | KPCUL01.3A65 | 1 | KPCUL013A65 | KPCUL013A65 | KDRH1FE | 1 | KDRF2FE | KDRF2FE | KTR013A65HE | 1 | KTR013A65HE | KTR013A65HE | 32272 | 1 | 32272 | 32272 |
| 15 | HSE0015AW90000 | PKPQ5 | PKPQ5 | KPCUL02.1A65 | 1 | 109491DG | 109491DG | KDRG2FE | 1 | KDRG2FE | KDRG2FE | KTR021A65HE | 1 | KTR021A65HE | KTR021A65HE | 32272 | 1 | 32272 | 32272 |
| 20 | HSE0020AW90000 | PKPQ5 | PKPQ5 | KPCUL02.6A65 | 1 | 109491DG | 109491DG | KDRG3FE | 1 | KDRG3FE | KDRG3FE | KTR026A65HE | 1 | KTR026A65HE | KTR026A65HE | 32272 | 1 | 32272 | 32272 |
| 25 | HSE0025AW90000 | PKPQ5 | PKPQ5 | KPCUL03.5A65 | 1 | 109491DG | 109491DG | KDRJ1FE | 1 | KDRJ1FE | KDRJ1FE | KTR035A65HE | 1 | KTR035A65HE | KTR035A65HE | 32272 | 1 | 32272 | 32272 |
| 30 | HSE0030AW90000 | PKPQ5 | PKPQ5 | KPCUL04.1A65 | 1 | 109598DG | 109598DG | KDRJ4FE | 1 | KDRJ4FE | KDRJ4FE | KTR041A65HE | 1 | KTR041A65HE | KTR041A65HE | 32272 | 1 | 32272 | 32272 |
| 40 | HSE0040AW90000 | PKPQ5 | PKPQ5 | KPCUL05.2A65 | 1 | 109598DG | 109598DG | KDRJ3FEX45 | 1 | KDRJ3FEX45 | KDRJ3FEX45 | KTR052A65HE | 1 | KTR052A65HE | KTR052A65HE | 32272 | 1 | 32272 | 32272 |
| 50 | HSE0050AW90000 | PKPQ5 | PKPQ5 | KPCUL06.9A65 | 1 | 109598DG | 109598DG | KDRJ2FEX45 | 1 | KDRJ2FEX45 | KDRJ2FEX45 | KTR069A65HE | 1 | KTR069A65HE | KTR069A65HE | 32272 | 1 | 32272 | 32272 |
| 60 | HSE0060AW90000 | PKPQ5 | PKPQ5 | KPCUL08.4A65 | 1 | 109491DG | 109491DG | KDRS3FE | 1 | KDRS3FE | KDRS3FE | KTR8A65HE | 1 | KTR8A65HE | KTR8A65HE | 32272 | 1 | 32272 | 32272 |
| 75 | HSE0075AW90000 | PKPQ5 | PKPQ5 | KPCUL010A65 | 1 | 109491DG | 109491DG | KDRS2FE | 1 | KDRS2FE | KDRS2FE | KTR10A65HE | 1 | KTR10A65HE | KTR10A65HE | 32273 | 1 | 32273 | 32273 |
| 100 | HSE0100AW90000 | PKPQ5 | PKPQ5 | KPCUL014A65 | 1 | 109598DG | 109598DG | KDRS1SFE | 1 | KDRS1SFE | KDRS1SFE | KTR14A65HE | 1 | KTR14A65HE | KTR14A65HE | 32273 | 1 | 32273 | 32273 |
| 125 | HSE0125AW90000 | PKPQ5 | PKPQ5 | KPCUL017A65 | 1 | 109598DG | 109598DG | KDRX2FE | 1 | KDRX2FE | KDRX2FE | KTR17A65HE | 1 | KTR17A65HE | KTR17A65HE | 32273 | 1 | 32273 | 32273 |
