Ratings table for the MSD product category
Enclosure Type

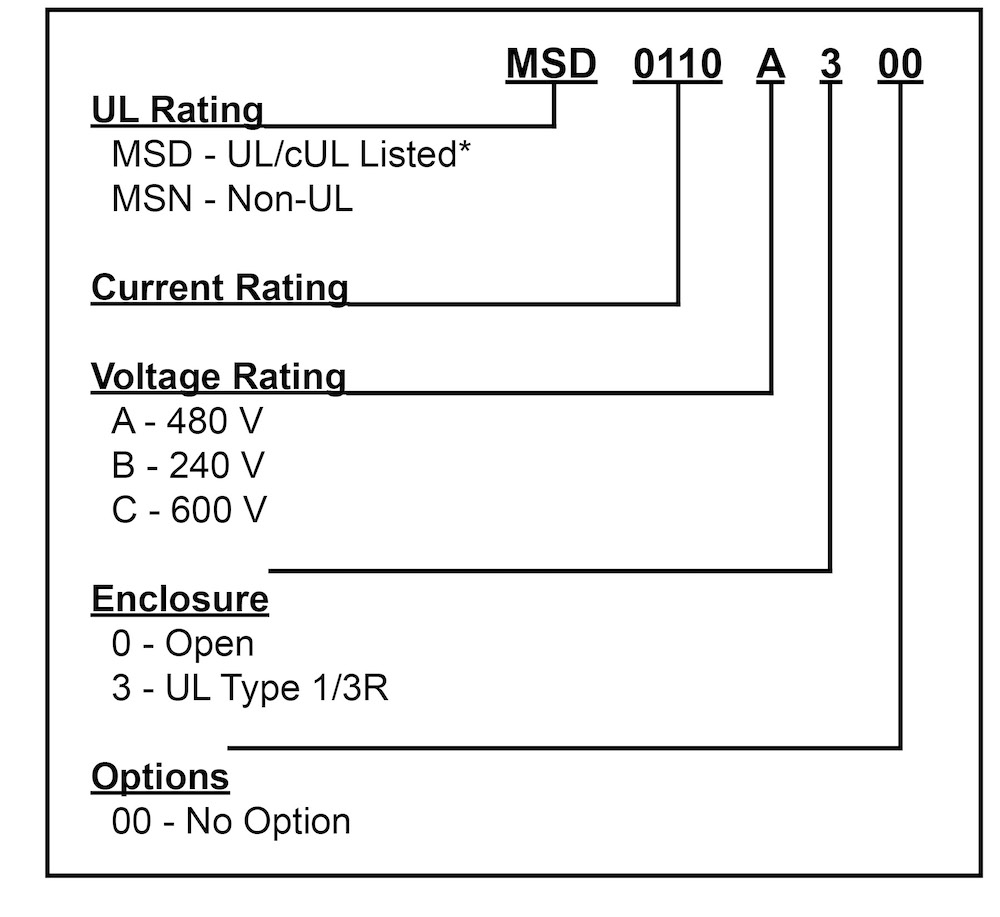

| Horsepower (HP) | SKU (Part Number) | Drawing | Schematic | Amps | Height (in) | Width (in) | Depth (in) | Weight (lbs) | Watts Loss |
|---|---|---|---|---|---|---|---|---|---|
| 800.0 | MSN0960A300 | PDF DXF | PDF DXF | 960 | 64.0 | 24.6 | 44.0 | 875.0 | 2195.0 |
| 500.0 | MSN0600A300 | PDF DXF | PDF DXF | 600 | 64.0 | 24.6 | 44.0 | 713.0 | 1715.0 |
| 450.0 | MSN0540A300 | PDF DXF | PDF DXF | 540 | 64.0 | 24.6 | 44.0 | 687.0 | 1610.0 |
| 400.0 | MSD0480A000 | PDF DXF | PDF DXF | 480 | 25.0 | 22.0 | 15.3 | 580.0 | 1460.0 |
| 300.0 | MSD0362A000 | PDF DXF | PDF DXF | 362 | 25.0 | 22.0 | 15.3 | 370.0 | 1180.0 |
| 350.0 | MSD0420A000 | PDF DXF | PDF DXF | 420 | 25.0 | 22.0 | 15.3 | 475.0 | 1210.0 |
| 250.0 | MSD0305A000 | PDF DXF | PDF DXF | 305 | 25.0 | 22.0 | 15.3 | 360.0 | 1290.0 |
| 200.0 | MSD0250A000 | PDF DXF | PDF DXF | 250 | 25.0 | 22.0 | 15.3 | 350.0 | 1153.0 |
| 125.0 | MSD0160A000 | PDF DXF | PDF DXF | 160 | 13.2 | 16.0 | 16.0 | 150.0 | 683.0 |
| 150.0 | MSD0200A000 | PDF DXF | PDF DXF | 200 | 25.0 | 22.0 | 15.3 | 330.0 | 1025.0 |
| 125.0 | MSD0160A300 | PDF DXF | PDF DXF | 160 | 36.0 | 28.4 | 36.9 | 340.0 | 683.0 |
| 150.0 | MSD0200A300 | PDF DXF | PDF DXF | 200 | 36.0 | 28.4 | 36.9 | 425.0 | 1025.0 |
| 100.0 | MSD0130A000 | PDF DXF | PDF DXF | 130 | 14.8 | 14.3 | 13.1 | 130.0 | 827.0 |
| 100.0 | MSD0130A300 | PDF DXF | PDF DXF | 130 | 22.1 | 20.4 | 28.5 | 187.0 | 827.0 |
| 75.0 | MSD0110A300 | PDF DXF | PDF DXF | 110 | 22.1 | 20.4 | 28.5 | 177.0 | 769.0 |
| 75.0 | MSD0110A000 | PDF DXF | PDF DXF | 110 | 14.8 | 14.3 | 13.1 | 120.0 | 769.0 |
| 50.0 | MSD0065A300 | PDF DXF | PDF DXF | 65 | 22.1 | 20.4 | 28.5 | 144.0 | 374.0 |
| 60.0 | MSD0080A300 | PDF DXF | PDF DXF | 80 | 22.1 | 20.4 | 28.5 | 162.0 | 546.0 |
| 60.0 | MSD0080A000 | PDF DXF | PDF DXF | 80 | 14.8 | 14.3 | 13.1 | 120.0 | 546.0 |
| 40.0 | MSD0055A300 | PDF DXF | PDF DXF | 55 | 19.1 | 15.5 | 19.5 | 105.0 | 350.0 |
| 40.0 | MSD0055A000 | PDF DXF | PDF DXF | 55 | 13.3 | 10.5 | 10.4 | 90.0 | 350.0 |
| 50.0 | MSD0065A000 | PDF DXF | PDF DXF | 65 | 13.25 | 10.5 | 10.54 | 100.0 | 374.0 |
| 30.0 | MSD0045A300 | PDF DXF | PDF DXF | 45 | 19.1 | 15.5 | 19.5 | 90.0 | 304.0 |
| 30.0 | MSD0045A000 | PDF DXF | PDF DXF | 45 | 10.3 | 10.8 | 10.0 | 65.0 | 304.0 |
| 25.0 | MSD0035A300 | PDF DXF | PDF DXF | 35 | 19.1 | 15.5 | 19.5 | 75.0 | 303.0 |
| 20.0 | MSD0030A300 | PDF DXF | PDF DXF | 30 | 19.1 | 15.5 | 19.5 | 75.0 | 244.0 |
| 20.0 | MSD0030A000 | PDF DXF | PDF DXF | 30 | 9.1 | 10.8 | 9.9 | 50.0 | 244.0 |
| 25.0 | MSD0035A000 | PDF DXF | PDF DXF | 35 | 9.1 | 10.8 | 9.9 | 50.0 | 303.0 |
| 15.0 | MSD0023A300 | PDF DXF | PDF DXF | 23 | 19.1 | 15.5 | 19.5 | 75.0 | 210.0 |
| 15.0 | MSD0023A000 | PDF DXF | PDF DXF | 23 | 9.1 | 10.8 | 9.9 | 50.0 | 210.0 |
| 10.0 | MSD0016A300 | PDF DXF | PDF DXF | 16 | 19.1 | 15.5 | 19.5 | 58.0 | 145.0 |
| 10.0 | MSD0016A000 | PDF DXF | PDF DXF | 16 | 9.1 | 10.8 | 6.2 | 41.0 | 145.0 |
| 7.5 | MSD0012A000 | PDF DXF | PDF DXF | 12 | 9.1 | 10.8 | 6.2 | 41.0 | 116.0 |
| 5.0 | MSD0009A300 | PDF DXF | PDF DXF | 9 | 19.1 | 15.5 | 19.5 | 57.0 | 102.0 |
| 7.5 | MSD0012A300 | PDF DXF | PDF DXF | 12 | 19.1 | 15.5 | 19.5 | 58.0 | 116.0 |
| 5.0 | MSD0009A000 | PDF DXF | PDF DXF | 9 | 9.1 | 10.8 | 6.2 | 40.0 | 102.0 |
| 600.0 | MSN0750A300 | PDF DXF | PDF DXF | 750 | 64.0 | 24.6 | 44.0 | 805.0 | 1805.0 |
| 400.0 | MSD0480A300 | PDF DXF | PDF DXF | 480 | 36.0 | 28.4 | 36.9 | 630.0 | 1460.0 |
| 350.0 | MSD0420A300 | PDF DXF | PDF DXF | 420 | 36.0 | 28.4 | 36.9 | 575.0 | 1210.0 |
| 300.0 | MSD0362A300 | PDF DXF | PDF DXF | 362 | 36.0 | 28.4 | 36.9 | 470.0 | 1180.0 |
| 700.0 | MSN0850A300 | PDF DXF | PDF DXF | 850 | 64.0 | 24.6 | 44.0 | 875.0 | 2065.0 |
| 250.0 | MSD0305A300 | PDF DXF | PDF DXF | 305 | 36.0 | 28.4 | 36.9 | 460.0 | 1290.0 |
| 200.0 | MSD0250A300 | PDF DXF | PDF DXF | 250 | 36.0 | 28.4 | 36.9 | 450.0 | 1153.0 |
