Ratings table for the KDR product category

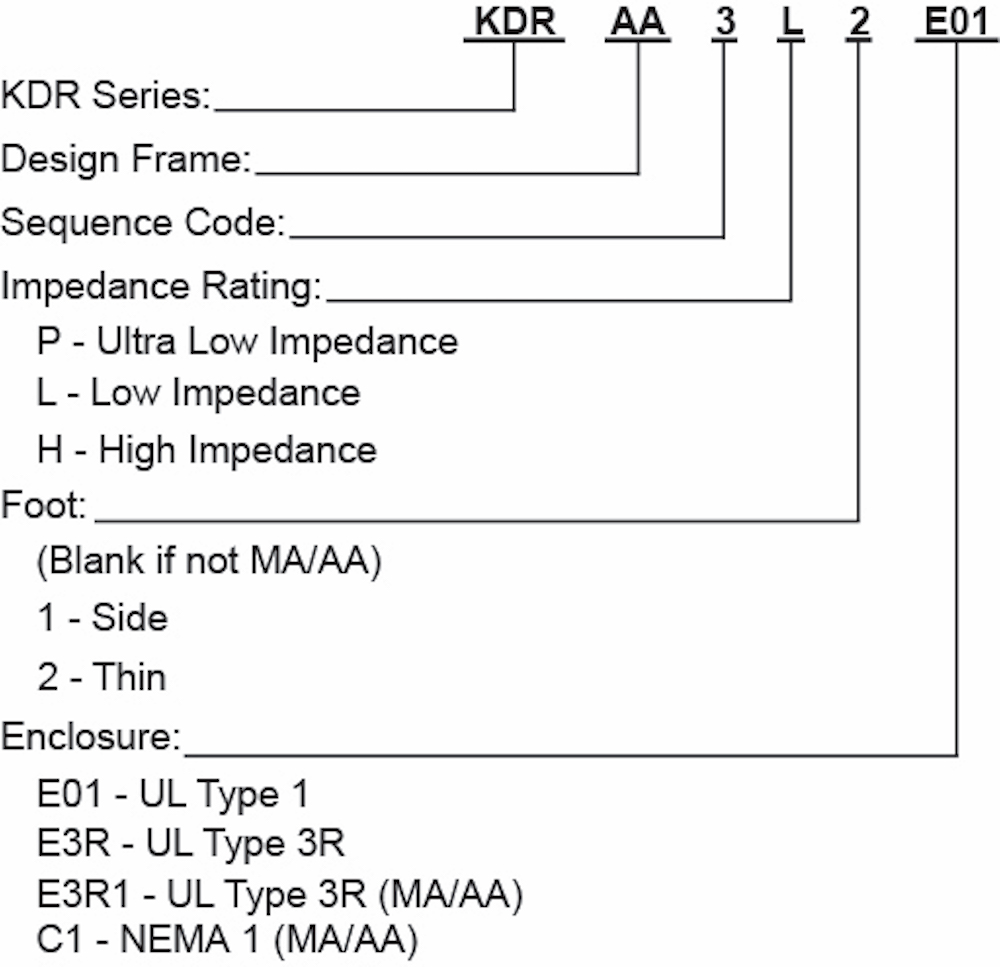

Enclosure Type
Model
| Horsepower (HP) | SKU (Part Number) | Drawing | Lug Kit | Amps | Height (in) | Width (in) | Depth (in) | Weight (lbs) | Watts Loss | Temp Rise |
|---|---|---|---|---|---|---|---|---|---|---|
| 1100 | KDRY1L | PDF DXF | 1350 | 20 | 21 | 19.3 | 475 | 1371 | 155 | |
| 1250 | KDRY2L | PDF DXF | 1500 | 20 | 21 | 19.3 | 500 | 1558 | 155 | |
| 800 | KDRX2L | PDF DXF | 965 | 18.5 | 18 | 13 | 280 | 997 | 155 | |
| 1000 | KDRX1L | PDF DXF | 1216 | 18.5 | 18.5 | 14.5 | 290 | 1246 | 155 | |
| 700 | KDRS1L | PDF DXF | 840 | 11.38 | 15 | 12 | 158 | 660 | 155 | |
| 1 | KDRMA5L1 | PDF DXF | 2.3 | 3.63 | 4.45 | 1.78 | 1.2 | 25.2 | 135 | |
| 900 | KDRX3L | PDF DXF | 1100 | 18 | 17.50 | 12.50 | 260 | 1121 | 155 | |
| 3 | KDRMA8L1 | PDF DXF | 5 | 3.63 | 4.45 | 1.78 | 1.4 | 30.6 | 135 | |
| 1.5 | KDRMA6L1 | PDF DXF | 3.3 | 3.63 | 4.45 | 1.78 | 1.4 | 26.4 | 135 | |
| 2 | KDRMA7L1 | PDF DXF | 4.2 | 3.63 | 4.45 | 1.78 | 1.4 | 23.5 | 135 | |
| 0.75 | KDRMA4L1 | PDF DXF | 1.9 | 3.63 | 4.45 | 1.78 | 1.3 | 12.1 | 135 | |
| 0.33 | KDRMA2L1 | PDF DXF | 1 | 3.63 | 4.45 | 1.78 | 1.3 | 6.2 | 135 | |
| 0.25 | KDRMA1L1 | PDF DXF | 0.8 | 3.63 | 4.45 | 1.78 | 1.3 | 5 | 135 | |
| 600 | KDRL3L | PDF DXF | 750 | 12.8 | 15.5 | 11 | 105 | 510 | 155 | |
| 250 | KDRG1L | PDF DXF | 340 | 9 | 11.5 | 8.5 | 65 | 337 | 155 | |
| 60 | KDRF4L | PDF DXF | 77 | 7 | 9 | 6 | 25 | 347 | 135 | |
| 75 | KDRF3L | PDF DXF | 110 | 7 | 9 | 7 | 30 | 337 | 135 | |
| 7.5 | KDRAA4L2 | PDF DXF | 11.6 | 4.44 | 4.25 | 2.64 | 3.2 | 64 | 135 | |
| 5 | KDRAA3L2 | PDF DXF | 8.2 | 4.44 | 4.25 | 2.64 | 3 | 45 | 135 | |
| 0.5 | KDRMA3L1 | PDF DXF | 1.6 | 3.63 | 4.45 | 1.78 | 1.3 | 9.7 | 135 | |
| 125 | KDRH2L | PDF DXF | 165 | 10 | 11 | 7 | 35 | 390 | 155 | |
| 300 | KDRG2L | PDF DXF | 370 | 9 | 11.5 | 8.5 | 65 | 381 | 155 | |
| 50 | KDRF2L | PDF DXF | 65 | 7 | 9 | 6 | 25 | 114 | 135 | |
| 40 | KDRC1L | PDF DXF | 55 | 5.8 | 7 | 4.2 | 15 | 114 | 135 | |
| 20 | KDRB1L | PDF DXF | 30 | 5 | 6 | 4 | 8 | 79 | 135 | |
| 200 | KDRG3L | PDF DXF | 240 | 10.00 | 12 | 8 | 60 | 155 | ||
| 30 | KDRD2L | PDF DXF | 45 | 6 | 7 | 4 | 10 | 105 | 135 | |
| 10 | KDRAA5L2 | PDF DXF | 14 | 4.44 | 4.25 | 2.64 | 3.3 | 77.7 | 135 | |
| 500 | KDRL2L | PDF DXF | 610 | 11.38 | 14.8 | 9.3 | 110 | 518 | 155 | |
| 450 | KDRL1L | PDF DXF | 575 | 11.38 | 14.8 | 9.3 | 110 | 509 | 155 | |
| 350 | KDRJ2L | PDF DXF | 450 | 10 | 11.3 | 9.5 | 70 | 465 | 155 | |
| 400 | KDRJ1L | PDF DXF | 520 | 10 | 11.3 | 9.5 | 70 | 470 | 155 | |
| 100 | KDRH3L | PDF DXF | 150 | 10 | 11 | 7 | 35 | 392 | 155 | |
| 150 | KDRH1L | PDF DXF | 185 | 10 | 11 | 7 | 35 | 380 | 155 | |
| 25 | KDRD1L | PDF DXF | 37 | 6 | 7 | 4 | 10 | 96 | 135 | |
| 15 | KDRB2L | PDF DXF | 25 | 5 | 6 | 4 | 8 | 65 | 135 | |
| 4 | KDRAA6L2 | PDF DXF | 7 | 4.44 | 4.25 | 2.64 | 3 | 255 | 135 |
