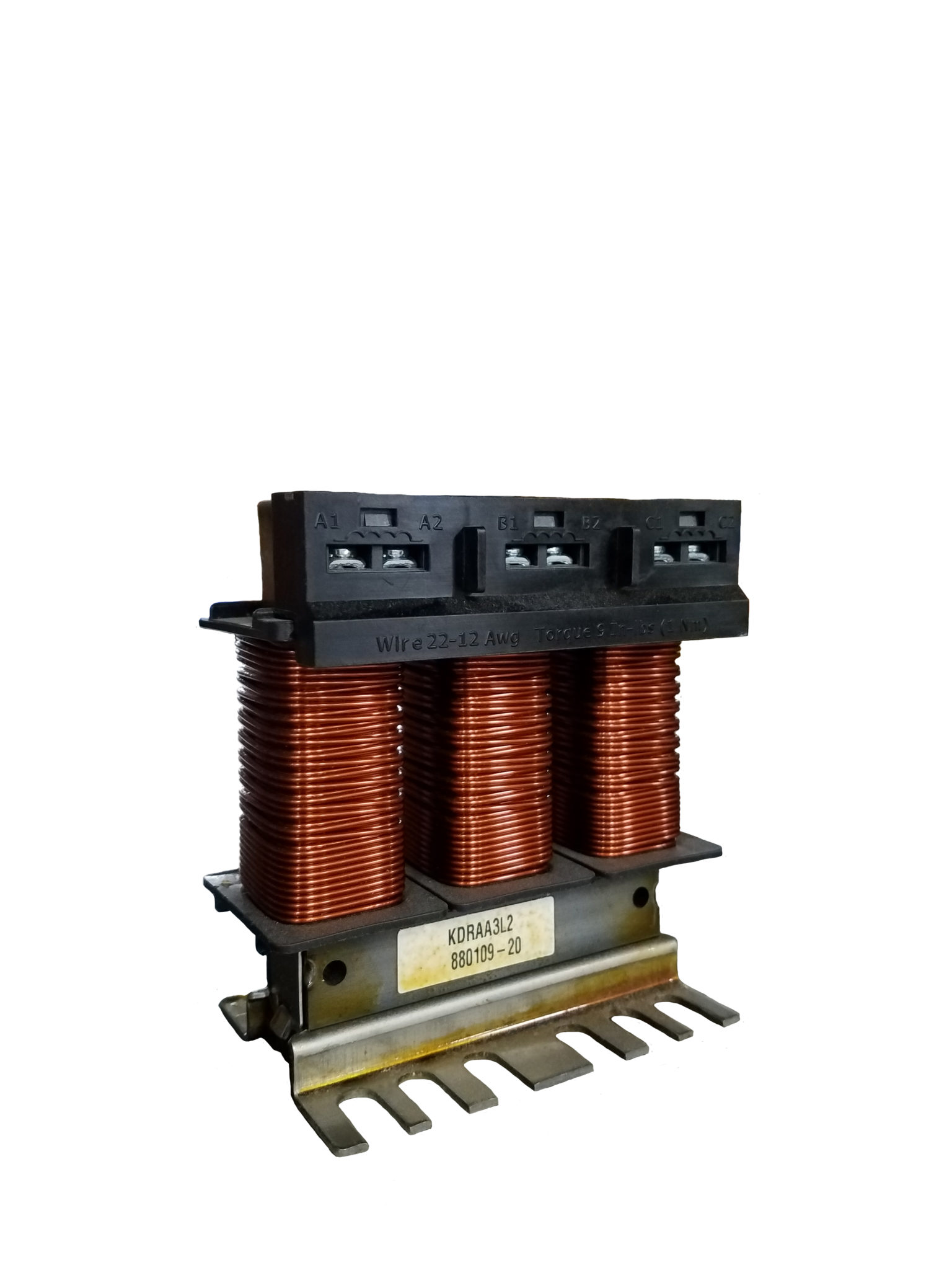

KDRAA3L2

KDR, 480V, 5 HP / 5 1/2 HP, 7.6 Motor Amps, 8.2 Max Amps, Narrow Foot, 3 Phase, Open, Line Inductor, 3% Impedance. UL Listed.

SKU: KDRAA3L2 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Impedance Value

3% Low Z
Rated Voltage

480
Horsepower (HP)

5.0
Amps

8.2
Impedance %

3%
DIN Rail Option

None
UL

UL Listed
kVAR

0
Enclosure Type

Open
Watts Loss

45.0
Phase

3
Hertz (Hz)

50/60
Country of Origin

US
Temp Rise

135
Term Type

TB
Model

Input Reactor
Dimensions
  • Height: 4.44 in
  • Width: 4.25 in
  • Depth: 2.64 in
Weight 3.0 lbs
