HGA Ratings Table

Product Change Notification

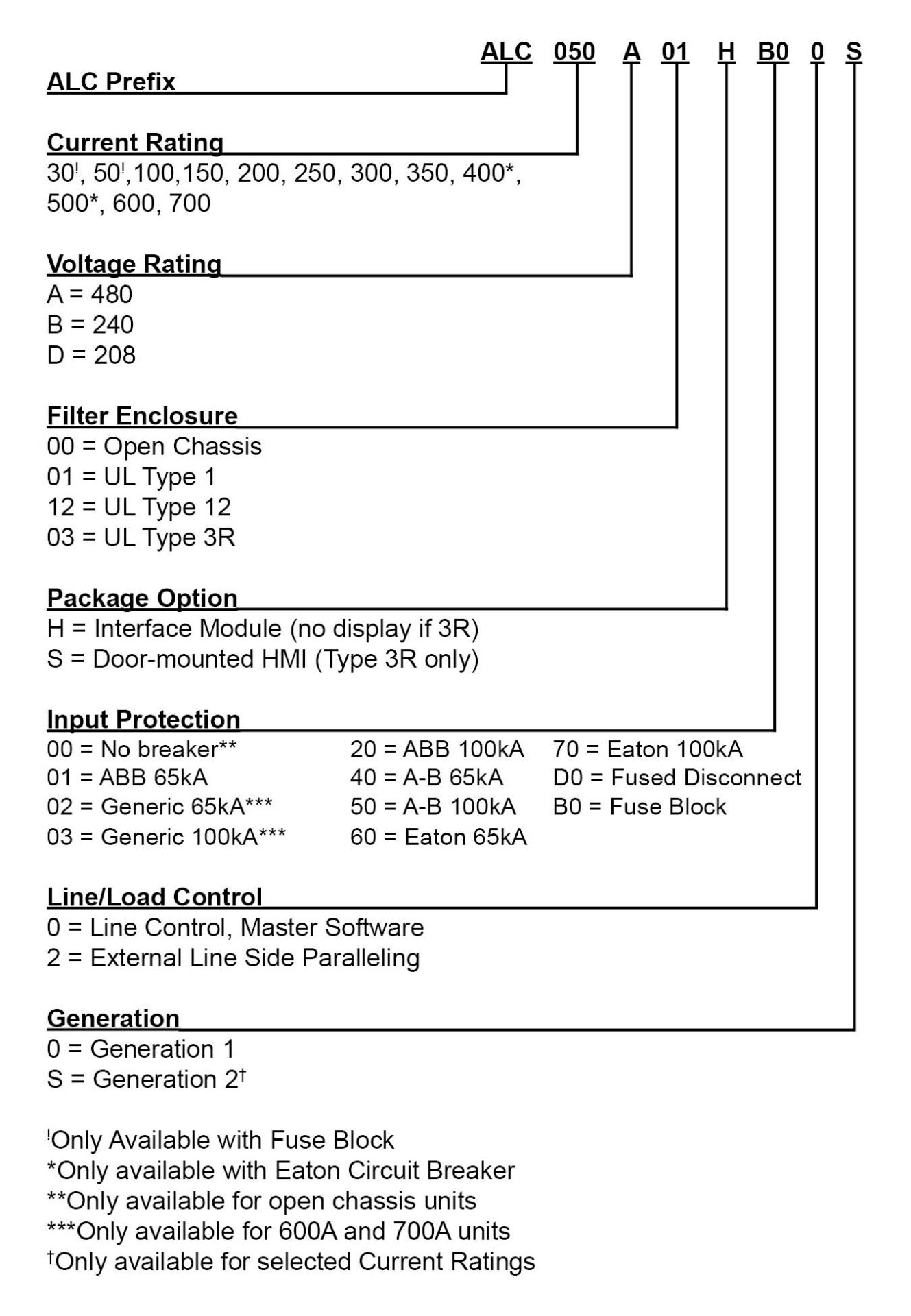

Part Number Structure

Rated Voltage

Enclosure Type

Input Protection

Circuit Breaker Brand

Amps SKU (Part Number) Classification Drawing Schematic Height (in) Width (in) Depth (in) Weight (lbs) Watts Loss
600 ALC600A01H020S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
300 ALC300A01H700S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
200 ALC200A01H7000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
300 ALC300A01H600N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
150 ALC150A01H2000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
200 ALC200A01H6000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
50 ALC50A01H5000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
250 ALC250A01H2000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
100 ALC100A01H5000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
300 ALC300A01H600S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H400S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
300 ALC300A01H400N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
350 ALC350A01H400S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
250 ALC250A01H4000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
350 ALC350A01H010S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
100 ALC100A01H6000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
600 ALC600A01H030S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
400 ALC400A01HD000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
300 ALC300A01H700N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
150 ALC150A01H6000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
600 ALC600A01HD00S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
200 ALC200A01H010N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
250 ALC250A01H5000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
150 ALC150A01H7000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
300 ALC300A01H010S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
150 ALC150A01HD000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
350 ALC350A01H0100 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
250 ALC250A01H0100 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
300 ALC300A01H010N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
200 ALC200A01H5000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
50 ALC050A01HB00S New Part PDF DXF PDF DXF 26.77 16.58 13.74 115.0 1425.0
700 ALC700A01H020S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
100 ALC100A01H4000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
300 ALC300A01H200N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
350 ALC350A01H700S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
250 ALC250A01H6000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
300 ALC300A01H200S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
200 ALC200A01H600N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
500 ALC500A01H6000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
100 ALC100A01H2000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
200 ALC200A01H0100 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H4000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H500N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
350 ALC350A01H2000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H6000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
500 ALC500A01H7000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
400 ALC400A01H7000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
700 ALC700A01H0200 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
200 ALC200A01H200N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01H2000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
100 ALC100A01H0100 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
250 ALC250A01H7000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
50 ALC50A01H7000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
50 ALC50A01H0100 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
150 ALC150A01H4000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
350 ALC350A01H500S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H7000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
700 ALC700A01H0300 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
300 ALC300A01H500S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
200 ALC200A01H700N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
300 ALC300A01HD00S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
100 ALC100A01H7000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
300 ALC300A01H500N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
350 ALC350A01H600S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
300 ALC300A01HD00N Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 8000.0
50 ALC50A01H6000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
700 ALC700A01HD000 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
100 ALC100A01HD000 PDF DXF PDF DXF 61.77 17.61 18.12 254.0 3500.0
350 ALC350A01H200S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
200 ALC200A01H400N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
150 ALC150A01H0100 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
150 ALC150A01H5000 PDF DXF PDF DXF 73.1 17.7 20.13 406.0 5250.0
500 ALC500A01HD000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
700 ALC700A01HD00S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
50 ALC50A01HD000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
600 ALC600A01H0300 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
400 ALC400A01H6000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
50 ALC50A01H2000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
600 ALC600A01HD000 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
700 ALC700A01H030S PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
600 ALC600A01H0200 Legacy Part PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
350 ALC350A01H5000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
350 ALC350A01H4000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10050.0
50 ALC50A01H4000 Legacy Part PDF DXF PDF DXF 61.77 17.61 18.12 254.0 2650.0
200 ALC200A01HD00N Legacy Part PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
200 ALC200A01HD000 PDF DXF PDF DXF 78.33 22.74 22.86 565.0 7000.0
350 ALC350A01HD000 Legacy Part PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10000.0
350 ALC350A01HD00S PDF DXF PDF DXF 78.33 27.73 22.86 835.0 10000.0
250 ALC250A01HD000 PDF DXF PDF DXF 78.33 22.74 22.86 685.0 8750.0
30 ALC030A01HB00S New Part PDF DXF PDF DXF 26.77 16.58 13.74 115.0 855.0
700 ALC700A01HB000 PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 20100.0
600 ALC600A01HB000 PDF DXF PDF DXF 88.54 59.64 22.86 1268.0 16100.0
500 ALC500A01HB000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 17500.0
400 ALC400A01HB000 PDF DXF PDF DXF 88.46 48.64 22.86 1229.0 14000.0
