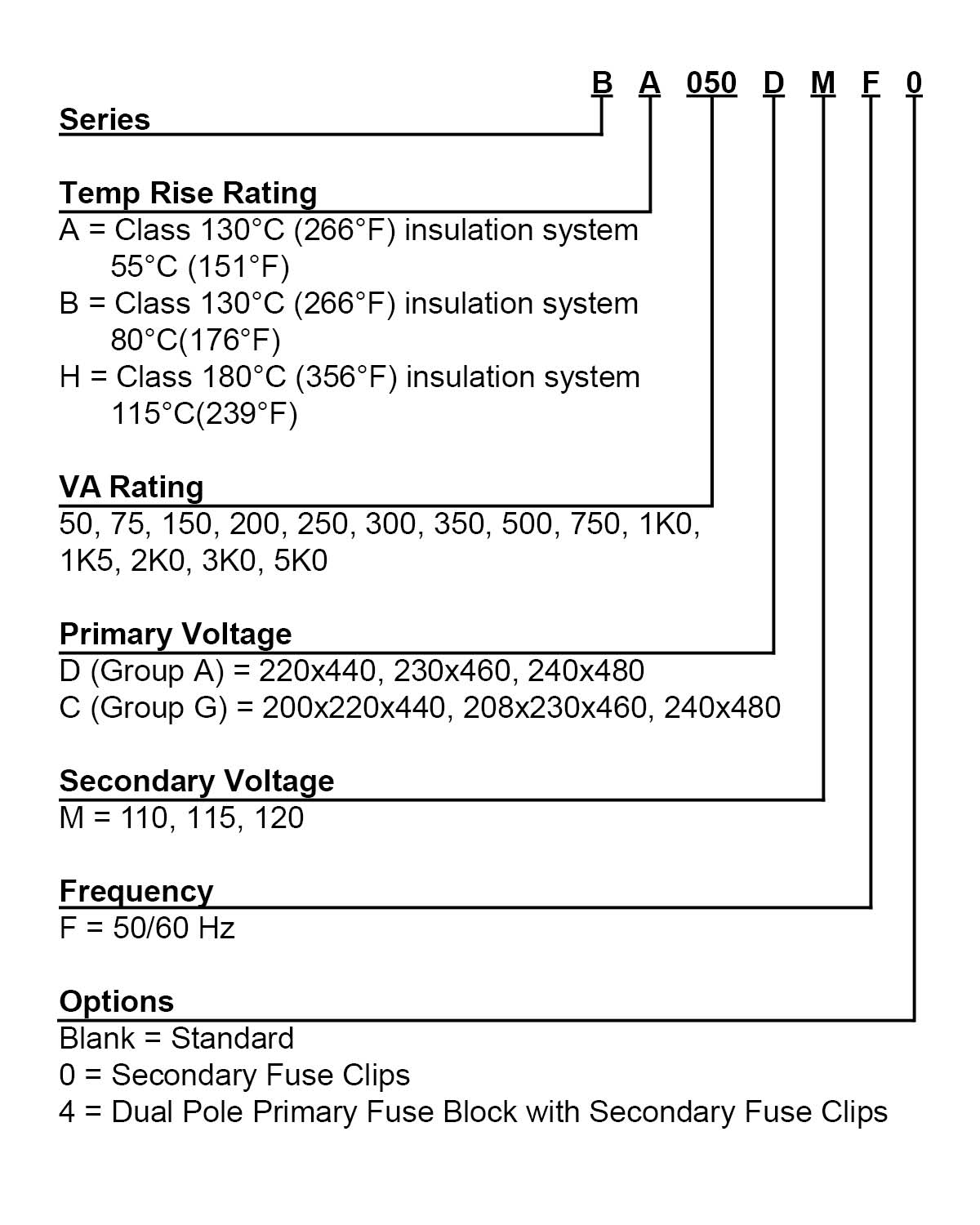

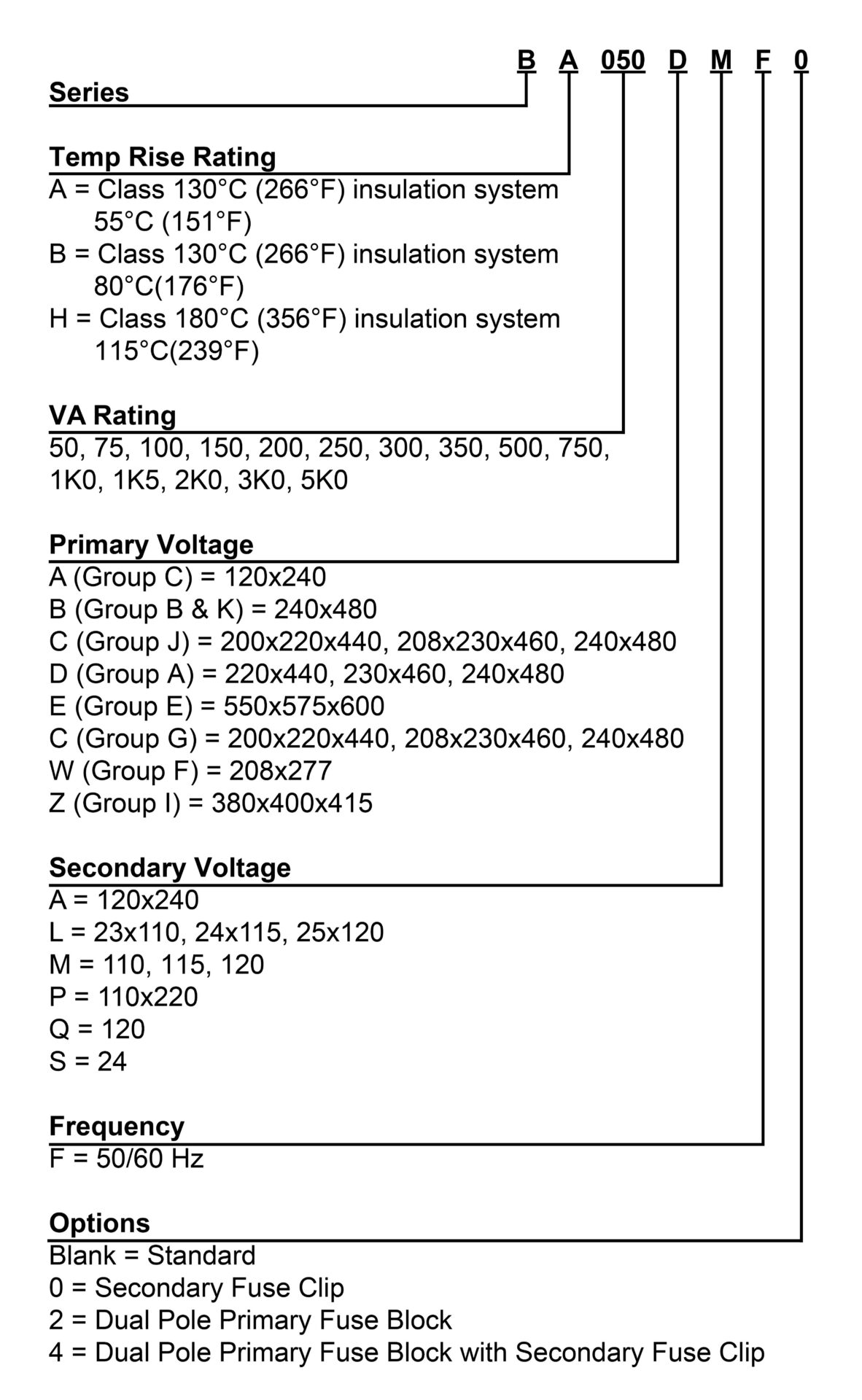

CPT Voltage Groups
| Voltage Group | Primary Voltage | Secondary Voltage |
|---|---|---|
| A | 220×440, 230×460, 240×480 | 110, 115, 120 |
| B | 240x480 | 24 |
| C | 120x240 | 24 |
| E | 550/575/600 | 110, 115, 120 |
| F | 208/277 | 120 |
| G | 200x220x440, 208x230x460, 240×480 | 110x115x120 |
| I | 380x400x415 | 110×220 |
| J | 200/220/440, 208/230/460, 240/480 | 23/110, 24/115, 25/120 |
| K | 240×480 | 120×240 |
Fuse Accessories
| SKU (Part Number) | VA Rating | Height (in) | Width (in) | Depth (in) | Mounting Width | Mounting Depth | Weight (lbs) | Drawing | Schematic |
|---|---|---|---|---|---|---|---|---|---|
| BH2K0ZPF4 | 2000 | 6.9 | 7.0 | 8.4 | 7.0 | 8.4 | 38.0 | PDF DXF | PDF DXF |
| BH1K0WQF4 | 1000 | 6.9 | 7.0 | 6.7 | 7.0 | 6.7 | 29.8 | PDF DXF | PDF DXF |
| BB750ZPF4 | 750 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BB750WQF4 | 750 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BB350EMF4 | 350 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB300BSF4 | 300 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 11.5 | PDF DXF | PDF DXF |
| BB200EMF4 | 200 | 5.3 | 4.5 | 4.3 | 4.5 | 4.3 | 8.5 | PDF DXF | PDF DXF |
| BB250ASF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 10.0 | PDF DXF | PDF DXF |
| BB200BSF4 | 200 | 5.3 | 4.5 | 4.3 | 4.5 | 4.3 | 8.5 | PDF DXF | PDF DXF |
| BB150WQF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 6.7 | PDF DXF | PDF DXF |
| BB150CLF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 6.7 | PDF DXF | PDF DXF |
| BA100ZPF4 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF | |
| BA100CLF4 | 100 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF |
| BA075WQF4 | 75 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BA050ZPF4 | 50 | 4.0 | 3.0 | 3.5 | 3.0 | 3.5 | 2.6 | PDF DXF | PDF DXF |
| BA050WQF4 | 50 | 4.0 | 3.0 | 3.5 | 3.0 | 3.5 | 2.6 | PDF DXF | PDF DXF |
| BA050EMF4 | 50 | 4.0 | 3.0 | 3.5 | 3.0 | 3.5 | 2.6 | PDF DXF | PDF DXF |
| BH2K0BAF4 | 2000 | 6.9 | 7.0 | 8.4 | 7.0 | 8.4 | 38.0 | PDF DXF | PDF DXF |
| BH1K0DMF4 | 1000 | 6.9 | 7.0 | 6.7 | 7.0 | 6.7 | 29.8 | PDF DXF | PDF DXF |
| BB750DMF4 | 750 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BB750BAF4 | 750 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BB350DMF4 | 350 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB250CMF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 11.5 | PDF DXF | PDF DXF |
| BB300DMF4 | 300 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 11.3 | PDF DXF | PDF DXF |
| BB150CMF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 6.7 | PDF DXF | PDF DXF |
| BA100CMF4 | 100 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF |
| BA075DMF4 | 75 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BA100DMF4 | 100 | 3.1 | 3.38 | 3.78 | 3.38 | 3.78 | 4.2 | PDF DXF | PDF DXF |
| BA050DMF4 | 50 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 2.6 | PDF DXF | PDF DXF |
| BH2K0EMF4 | 2000 | 6.9 | 7.0 | 8.4 | 7.0 | 8.4 | 38.0 | PDF DXF | PDF DXF |
| BB500CLF4 | 500 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BB350ZPF4 | 350 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB500ASF4 | 500 | 5.9 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB300ZPF4 | 300 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 11.5 | PDF DXF | PDF DXF |
| BB350BSF4 | 350 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB300ASF4 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 11.5 | PDF DXF | PDF DXF | |
| BB250CLF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB250WQF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 10.0 | PDF DXF | PDF DXF |
| BB200CLF4 | 200 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 10.0 | PDF DXF | PDF DXF |
| BB150ZPF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 6.7 | PDF DXF | PDF DXF |
| BA100BSF4 | 100 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF |
| BA100ASF4 | 100 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF |
| BA075ZPF4 | 75 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BA075CLF4 | 75 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF |
| BA075BSF4 | 75 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BH2K0DMF4 | 2000 | 6.9 | 7.0 | 8.4 | 7.0 | 8.4 | 38 | PDF DXF | PDF DXF |
| BH1K5DMF4 | 1500 | 6.9 | 7.0 | 7.7 | 7.0 | 7.7 | 30 | PDF DXF | PDF DXF |
| BH1K0CMF4 | 1000 | 6.9 | 7.0 | 6.7 | 7.0 | 6.7 | 29.8 | PDF DXF | PDF DXF |
| BB750CMF4 | 750 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BH1K0BAF4 | 1000 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BB500DMF4 | 500 | 4.7 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB500CMF4 | 500 | 5.9 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB300CMF4 | 300 | 4.04 | 4.5 | 4.8 | 4.5 | 4.8 | 11.5 | PDF DXF | PDF DXF |
| BB250DMF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 10 | PDF DXF | PDF DXF |
| BH1K0CLF4 | 1000 | 6.9 | 7.0 | 8.4 | 7.0 | 8.4 | 38.0 | PDF DXF | PDF DXF |
| BB500EMF4 | 500 | 5.9 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB300WQF4 | 300 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 11.5 | PDF DXF | PDF DXF |
| BB350CLF4 | 350 | 5.9 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB250EMF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 10.0 | PDF DXF | PDF DXF |
| BB250ZPF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 10.0 | PDF DXF | PDF DXF |
| BB200ASF4 | 200 | 5.3 | 4.5 | 4.3 | 4.5 | 4.3 | 8.5 | PDF DXF | PDF DXF |
| BB200WQF4 | 200 | 5.3 | 4.5 | 4.3 | 4.5 | 4.3 | 8.5 | PDF DXF | PDF DXF |
| BB150EMF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 6.7 | PDF DXF | PDF DXF |
| BA100EMF4 | 100 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF |
| BH1K5BAF4 | 1500 | 6.9 | 7.0 | 7.7 | 7.0 | 7.7 | 30.0 | PDF DXF | PDF DXF |
| BH1K5CMF4 | 1500 | 5.7 | 7.0 | 7.2 | 7.0 | 7.2 | 30.0 | PDF DXF | PDF DXF |
| BB350CMF4 | 350 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB200DMF4 | 200.0 | 5.3 | 4.5 | 4.3 | 4.5 | 4.3 | 8.5 | PDF DXF | PDF DXF |
| BB200CMF4 | 200 | 5.3 | 4.5 | 4.3 | 4.5 | 4.3 | 8.5 | PDF DXF | PDF DXF |
| BA075CMF4 | 75 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BA050CMF4 | 50 | 4.0 | 3.0 | 3.5 | 3.0 | 3.5 | 2.6 | PDF DXF | PDF DXF |
| BH1K5ZPF4 | 1500 | 6.9 | 7.0 | 7.7 | 7.0 | 7.7 | 30.0 | PDF DXF | PDF DXF |
| BH1K5EMF4 | 1500 | 6.9 | 7.0 | 7.7 | 7.0 | 7.7 | 30.0 | PDF DXF | PDF DXF |
| BH1K0ZPF4 | 1000 | 6.9 | 7.0 | 6.7 | 7.0 | 6.7 | 29.8 | PDF DXF | PDF DXF |
| BH1K0EMF4 | 1000 | 6.9 | 7.0 | 6.7 | 7.0 | 6.7 | 29.8 | PDF DXF | PDF DXF |
| BB750EMF4 | 750 | 5.9 | 5.3 | 7.0 | 5.3 | 7.0 | 28.1 | PDF DXF | PDF DXF |
| BB500WQF4 | 500 | 5.9 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB500ZPF4 | 500 | 5.9 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB500BSF4 | 500 | 5.9 | 5.3 | 5.8 | 5.3 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB350WQF4 | 350 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB300EMF4 | 300 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 11.5 | PDF DXF | PDF DXF |
| BB350ASF4 | 350 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB250BSF4 | 250 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 10.0 | PDF DXF | PDF DXF |
| BB300CLF4 | 300 | 5.3 | 4.5 | 4.8 | 4.5 | 4.8 | 13.6 | PDF DXF | PDF DXF |
| BB200ZPF4 | 200 | 5.3 | 4.5 | 4.3 | 4.5 | 4.3 | 8.5 | PDF DXF | PDF DXF |
| BB150BSF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 6.7 | PDF DXF | PDF DXF |
| BA100WQF4 | 100 | 4.3 | 3.4 | 4.0 | 3.4 | 4.0 | 4.2 | PDF DXF | PDF DXF |
| BB150ASF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 6.7 | PDF DXF | PDF DXF |
| BA075EMF4 | 75 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BA075ASF4 | 75 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BA050CLF4 | 50 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 3.5 | PDF DXF | PDF DXF |
| BA050ASF4 | 50 | 4.0 | 3.0 | 3.5 | 3.0 | 3.5 | PDF DXF | PDF DXF | |
| BA050BSF4 | 50 | 4.0 | 3.0 | 3.5 | 3.0 | 3.5 | 2.6 | PDF DXF | PDF DXF |
| BH2K0CMF4 | 2000 | 6.9 | 7.0 | 8.4 | 7.0 | 8.4 | 38.0 | PDF DXF | PDF DXF |
| BB500BAF4 | 500 | 5.9 | 5.9 | 5.8 | 5.9 | 5.8 | 15.8 | PDF DXF | PDF DXF |
| BB150DMF4 | 150 | 4.7 | 3.8 | 4.5 | 3.8 | 4.5 | 3.1 | PDF DXF | PDF DXF |
