TCI will begin replacing all dry-type Vishay screw terminal capacitors to Vishay dry-type spring clamp capacitors. The rate at which the capacitors will change over is subject to stock availability beginning 04/2/2025. Please see Product Change Notification 21 and Product Change Notification 22 for more information. Updated Capacitors and Brackets can be found in the table below.
Designed for optimized enclosure space.
The HGL Kit offers harmonic mitigation in compliance with IEEE-519 while also providing maximum flexibility of enclosure panel construction. The HGL features the lowest capacitance in the market, eliminating any worry over leading power factor or excess kVARs interfering with your generator/power system.

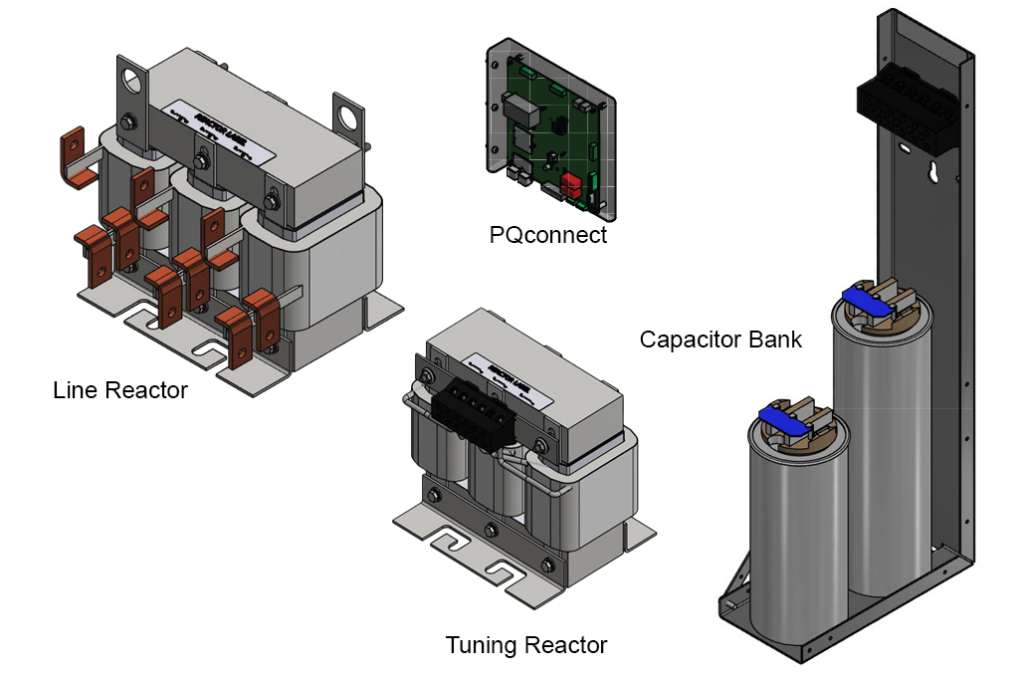

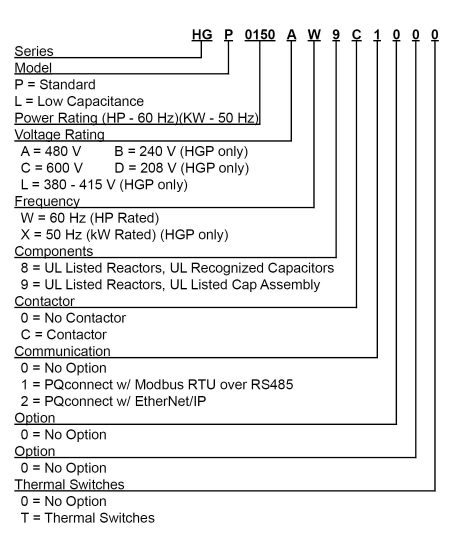

HGL kits come standard with the required line reactor, tuning reactor, capacitors, and/or capacitor brackets. These are denoted by the (8) selection of kits. For a capacitor assembly, please reference the (9) kit construction.
HGL Kit Component Drawings(8)
Contains UL listed line reactors, UL listed tuning reactors, UL recognized capacitors, and capacitor brackets.
HGL Kit Component Drawings(9)
Contains UL listed capacitor banks, UL listed tuning reactors, and UL listed line reactors.
Kit Documentation
PQconnect Information

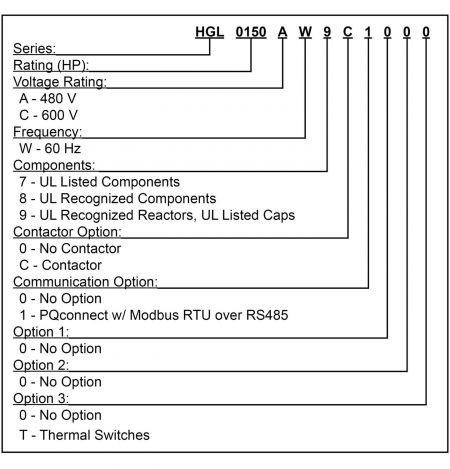

HGL 480 V 60 Hz (8)
| HP | HGL CP Kit | PQconnect Option | Line Reactor | Tuning Reactor | Capacitor 1 | Bracket 1 | Capacitor 2 | Bracket 2 | Bracket 3 | ||||||||||||||||||||||
| Part Number | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | |||||||||
| 5 | HGL0005AW8xxxx | PKPQ5 | PKPQ5 | KDRC4TT | 1 | DXF | KTR007A65HL | 1 | DXF | 29338 | 3 | DXF | |||||||||||||||||||
| 7.5 | HGL0008AW8xxxx | PKPQ5 | PKPQ5 | KDRC6TT | 1 | DXF | KTR010A65HL | 1 | DXF | 29370 | 6 | DXF | |||||||||||||||||||
| 10 | HGL0010AW8xxxx | PKPQ5 | PKPQ5 | KDRE1TT | 1 | DXF | KTR015A65HL | 1 | DXF | 29338 | 3 | DXF | 29339 | 3 | DXF | ||||||||||||||||
| 15 | HGL0015AW8xxxx | PKPQ5 | PKPQ5 | KDRF1TT | 1 | DXF | KTR021A65HL | 1 | DXF | 32608 | 1 | DXF | KCAPBKT1D | 1 | DXF | 29339 | 3 | DXF | |||||||||||||
| 20 | HGL0020AW8xxxx | PKPQ5 | PKPQ5 | KDRF2TT | 1 | DXF | KTR3A65HL | 1 | DXF | 32446 | 1 | DXF | KCAPBKT1D | 1 | DXF | ||||||||||||||||
| 25 | HGL0025AW8xxxx | PKPQ5 | PKPQ5 | KDRF7TT | 1 | DXF | KTR039A65HL | 1 | DXF | 29339 | 3 | DXF | 28654 | 3 | DXF | ||||||||||||||||
| 30 | HGL0030AW8xxxx | PKPQ5 | PKPQ5 | KDRH1TT | 1 | DXF | KTR5A65HL | 1 | DXF | 32447 | 1 | DXF | KCAPBKT1D | 1 | DXF | ||||||||||||||||
| 40 | HGL0040AW8xxxx | PKPQ5 | PKPQ5 | KDRI1TT | 1 | DXF | KTR6A65HL | 1 | DXF | 32448 | 1 | DXF | KCAPBKT1D | 1 | DXF | ||||||||||||||||
| 50 | HGL0050AW8xxxx | PKPQ5 | PKPQ5 | KDRG1TT | 1 | DXF | KTR8A65HL | 1 | DXF | 32449 | 1 | DXF | KCAPBKT1B | 1 | DXF | ||||||||||||||||
| 60 | HGL0060AW8xxxx | PKPQ5 | PKPQ5 | KDRG2TT | 1 | DXF | KTR10A65HL | 1 | DXF | 32813 | 1 | DXF | KCAPBKT1B | 1 | DXF | ||||||||||||||||
| 75 | HGL0075AW8xxxx | PKPQ5 | PKPQ5 | KDRG36TT | 1 | DXF | KTR10A65XHL | 1 | DXF | 32813 | 1 | DXF | KCAPBKT1B | 1 | DXF | ||||||||||||||||
| 100 | HGL0100AW8xxxx | PKPQ5 | PKPQ5 | KDRJ2TT | 1 | DXF | KTR15A65HL | 1 | DXF | 32812 | 1 | DXF | KCAPBKT2B | 1 | DXF | 32813 | 1 | DXF | |||||||||||||
| 125 | HGL0125AW8xxxx | PKPQ5 | PKPQ5 | KDRL1TT | 1 | DXF | KTR20A65HL | 1 | DXF | 32813 | 2 | DXF | KCAPBKT2B | 1 | DXF | ||||||||||||||||
| 150 | HGL0150AW8xxxx | PKPQ5 | PKPQ5 | KDRL7TT | 1 | DXF | KTR25A65HL | 1 | DXF | 32812 | 1 | DXF | KCAPBKT1B | 1 | DXF | 32813 | 2 | DXF | KCAPBKT2B | 1 | DXF | ||||||||||
| 200 | HGL0200AW8xxxx | PKPQ5 | PKPQ5 | KDRS4TT | 1 | DXF | KTR30A65HL | 1 | DXF | 32813 | 3 | DXF | KCAPBKT1B | 1 | DXF | KCAPBKT2B | 1 | DXF | |||||||||||||
| 250 | HGL0250AW8xxxx | PKPQ5 | PKPQ5 | KDRS3TT | 1 | DXF | KTR40A65HL | 1 | DXF | 32813 | 4 | DXF | KCAPBKT4B | 1 | DXF | ||||||||||||||||
| 300 | HGL0300AW8xxxx | PKPQ5 | PKPQ5 | KDRS2STT | 1 | DXF | KTR50A65HL | 1 | DXF | 32813 | 5 | DXF | KCAPBKT1B | 1 | DXF | KCAPBKT4B | 1 | DXF | |||||||||||||
| 350 | HGL0350AW8xxxx | PKPQ5 | PKPQ5 | KDRX2TT | 1 | DXF | KTR55A65HL | 1 | DXF | 32812 | 1 | DXF | KCAPBKT2B | 1 | DXF | 32813 | 5 | DXF | KCAPBKT4B | 1 | DXF | ||||||||||
| 400 | HGL0400AW8xxxx | PKPQ5 | PKPQ5 | KDRX3TT | 1 | DXF | KTR60A65HL | 1 | DXF | 32813 | 6 | DXF | KCAPBKT2B | 1 | DXF | KCAPBKT4B | 1 | DXF | |||||||||||||
| 450 | HGL0450AW8xxxx | PKPQ5 | PKPQ5 | KDRX4TT | 1 | DXF | KTR70A65HL | 1 | DXF | 32813 | 1 | DXF | KCAPBKT1B | 1 | DXF | KCAPBKT2B | 1 | DXF | KCAPBKT4B | 1 | DXF | ||||||||||
| 500 | HGL0500AW8xxxx | PKPQ5 | PKPQ5 | KDRX5TT | 1 | DXF | KTR75A65HL | 1 | DXF | 32812 | 1 | DXF | KCAPBKT4B | 2 | DXF | 32813 | 7 | DXF | |||||||||||||
| 600 | HGL0600AW8xxxx | PKPQ5 | PKPQ5 | KDRX1STT | 1 | DXF | KTR90A65HL | 1 | DXF | 32813 | 9 | DXF | KCAPBKT1B | 1 | DXF | KCAPBKT4B | 2 | DXF | |||||||||||||
| 700 | HGL0700AW8xxxx | PKPQ5 | PKPQ5 | KDRX2STT | 1 | DXF | KTR105A65HL | 1 | DXF | 32812 | 1 | DXF | KCAPBKT1B | 1 | DXF | 32813 | 10 | DXF | KCAPBKT2B | 1 | DXF | KCAPBKT4B | 2 | DXF | |||||||
| 800 | HGL0800AW8xxxx | PKPQ5 | PKPQ5 | KDRX3STT | 1 | DXF | KTR120A65HL | 1 | DXF | 32813 | 12 | DXF | KCAPBKT4B | 3 | DXF | ||||||||||||||||
| 900 | HGL0900AW8xxxx | PKPQ5 | PKPQ5 | KDRY4STT | 1 | DXF | KTR135A65HL | 1 | DXF | 32812 | 1 | DXF | KCAPBKT2B | 1 | DXF | 32813 | 13 | DXF | KCAPBKT4B | 3 | DXF | ||||||||||
HGL 480 V 60Hz (9) Kits
| HP | HGL Kit | PQconnect Option | Line Reactor | Tuning Reactor | KPCUL Capacitor Bank | Contactor | ||||||||||||
| Part Number | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | Qty | DXF | Part Number | DXF | ||||||
| 5 | HGL0005AW9xxxx | PKPQ5 | PKPQ5 | KDRC4TT | 1 | DXF | KTR007A65HL | 1 | DXF | KPCUL00.7A62 | 1 | DXF | 32272 | DXF | ||||
| 7.5 | HGL0008AW9xxxx | PKPQ5 | PKPQ5 | KDRC6TT | 1 | DXF | KTR01A65HL | 1 | DXF | KPCUL001A63 | 1 | DXF | 32272 | DXF | ||||
| 10 | HGL0010AW9xxxx | PKPQ5 | PKPQ5 | KDRE1TT | 1 | DXF | KTR015A65HL | 1 | DXF | KPCUL01.5A63 | 1 | DXF | 32272 | DXF | ||||
| 15 | HGL0015AW9xxxx | PKPQ5 | PKPQ5 | KDRF1TT | 1 | DXF | KTR021A65HL | 1 | DXF | KPCUL02.1A63 | 1 | DXF | 32272 | DXF | ||||
| 20 | HGL0020AW9xxxx | PKPQ5 | PKPQ5 | KDRF2TT | 1 | DXF | KTR3A65HL | 1 | DXF | KPCUL003A63 | 1 | DXF | 32272 | DXF | ||||
| 25 | HGL0025AW9xxxx | PKPQ5 | PKPQ5 | KDRF7TT | 1 | DXF | KTR039A65HL | 1 | DXF | KPCUL004A63 | 1 | DXF | 32272 | DXF | ||||
| 30 | HGL0030AW9xxxx | PKPQ5 | PKPQ5 | KDRH1TT | 1 | DXF | KTR5A65HL | 1 | DXF | KPCUL005A62 | 1 | DXF | 32272 | DXF | ||||
| 40 | HGL0040AW9xxxx | PKPQ5 | PKPQ5 | KDRI1TT | 1 | DXF | KTR6A65HL | 1 | DXF | KPCUL006A62 | 1 | DXF | 32272 | DXF | ||||
| 50 | HGL0050AW9xxxx | PKPQ5 | PKPQ5 | KDRG1TT | 1 | DXF | KTR8A65HL | 1 | DXF | KPCUL008A62 | 1 | DXF | 32272 | DXF | ||||
| 60 | HGL0060AW9xxxx | PKPQ5 | PKPQ5 | KDRG2TT | 1 | DXF | KTR10A65HL | 1 | DXF | KPCUL010A62 | 1 | DXF | 32272 | DXF | ||||
| 75 | HGL0075AW9xxxx | PKPQ5 | PKPQ5 | KDRG36TT | 1 | DXF | KTR10A65XHL | 1 | DXF | KPCUL010A62 | 1 | DXF | 32272 | DXF | ||||
| 100 | HGL0100AW9xxxx | PKPQ5 | PKPQ5 | KDRJ2TT | 1 | DXF | KTR15A65HL | 1 | DXF | KPCUL015A63 | 1 | DXF | 32273 | DXF | ||||
| 125 | HGL0125AW9xxxx | PKPQ5 | PKPQ5 | KDRL1TT | 1 | DXF | KTR20A65HL | 1 | DXF | KPCUL020A63 | 1 | DXF | 32273 | DXF | ||||
| 150 | HGL0150AW9xxxx | PKPQ5 | PKPQ5 | KDRL7TT | 1 | DXF | KTR25A65HL | 1 | DXF | KPCUL025A63 | 1 | DXF | 32274 | DXF | ||||
| 200 | HGL0200AW9xxxx | PKPQ5 | PKPQ5 | KDRS4TT | 1 | DXF | KTR30A65HL | 1 | DXF | KPCUL030A63 | 1 | DXF | 32274 | DXF | ||||
| 250 | HGL0250AW9xxxx | PKPQ5 | PKPQ5 | KDRS3TT | 1 | DXF | KTR40A65HL | 1 | DXF | KPCUL040A63 | 1 | DXF | 32275 | DXF | ||||
| 300 | HGL0300AW9xxxx | PKPQ5 | PKPQ5 | KDRS2STT | 1 | DXF | KTR50A65HL | 1 | DXF | KPCUL050A63 | 1 | DXF | 32275 | DXF | ||||
| 350 | HGL0350AW9xxxx | PKPQ5 | PKPQ5 | KDRX2TT | 1 | DXF | KTR55A65HL | 1 | DXF | KPCUL055A63 | 1 | DXF | 32275 | DXF | ||||
| 400 | HGL0400AW9xxxx | PKPQ5 | PKPQ5 | KDRX3TT | 1 | DXF | KTR60A65HL | 1 | DXF | KPCUL060A63 | 1 | DXF | 32276 | DXF | ||||
| 450 | HGL0450AW9xxxx | PKPQ5 | PKPQ5 | KDRX4TT | 1 | DXF | KTR70A65HL | 1 | DXF | KPCUL070A63 | 1 | DXF | 32277 | DXF | ||||
| 500 | HGL0500AW9xxxx | PKPQ5 | PKPQ5 | KDRX5TT | 1 | DXF | KTR75A65HL | 1 | DXF | KPCUL075A63 | 1 | DXF | 32277 | DXF | ||||
| 600 | HGL0600AW9xxxxx | PKPQ5 | PKPQ5 | KDRX1STT | 1 | DXF | KTR90A65HL | 1 | DXF | KPCUL090A63 | 1 | DXF | 32277 | DXF | ||||
| 700 | HGL0700AW9xxxxx | PKPQ5 | PKPQ5 | KDRX2STT | 1 | DXF | KTR105A65HL | 1 | DXF | KPCUL105A63 | 1 | DXF | 32277 | DXF | ||||
| 800 | HGL0800AW9xxxx | PKPQ5 | PKPQ5 | KDRX3STT | 1 | DXF | KTR120A65HL | 1 | DXF | KPCUL120A63 | 1 | DXF | 32278 | DXF | ||||
| 900 | HGL0900AW9xxxx | PKPQ5 | PKPQ5 | KDRY4STT | 1 | DXF | KTR135A65HL | 1 | DXF | KPCUL135A63 | 1 | DXF | 32278 | DXF | ||||
