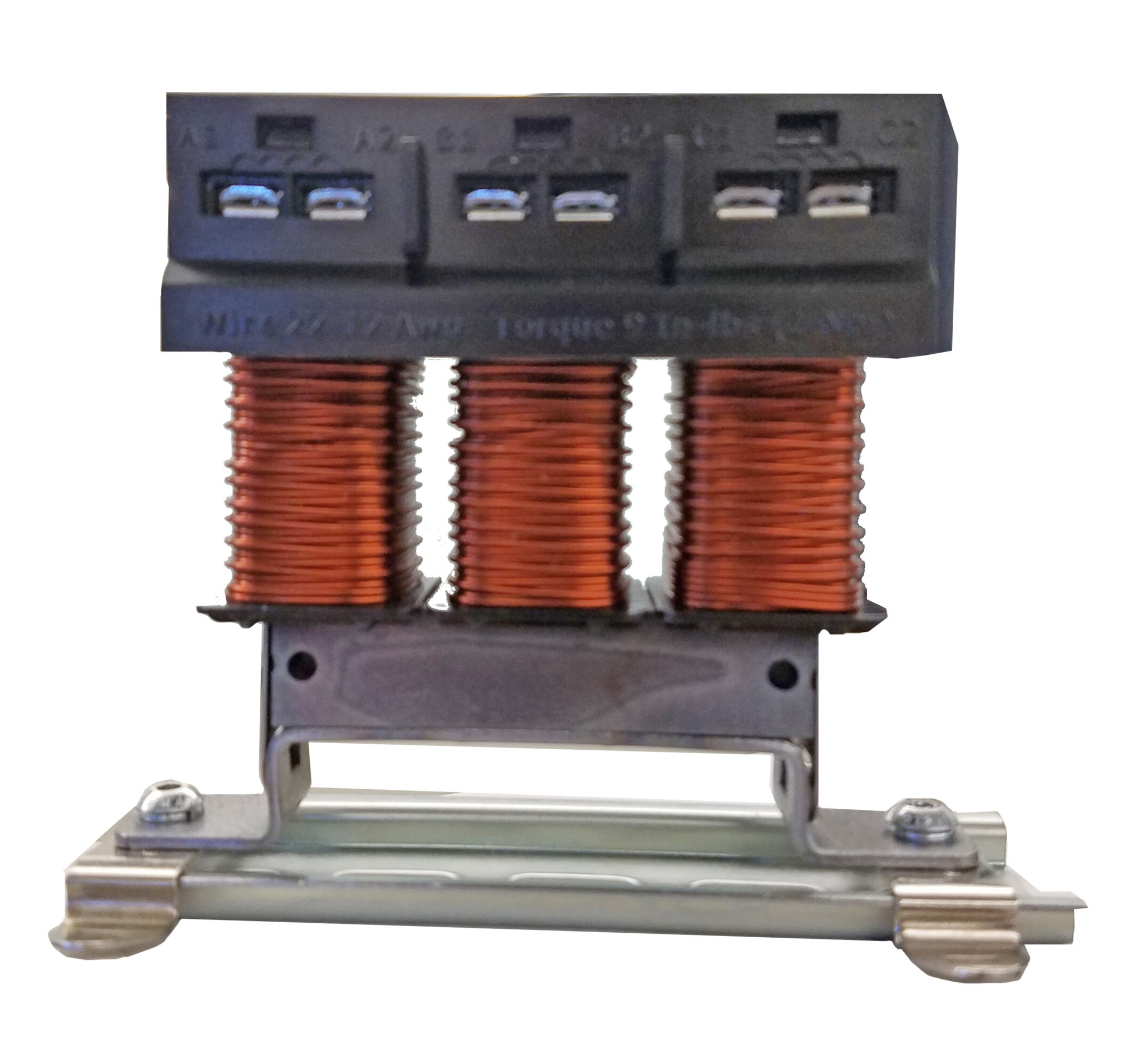

KDRMA7L1DR

KDR, 480V, 2 HP, 3.40 Motor Amps, 4.2 Max Amps, 3 Phase, Open, Line Inductor, 3% Impedance, UL Listed, With Din Rail Clips.

SKU: KDRMA7L1DR Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Impedance Value

3% Low Z
Rated Voltage

480
Horsepower (HP)

2.0
Amps

4.2
Impedance %

3%
DIN Rail Option

Din Rail
UL

UL Listed
kVAR

0
Enclosure Type

Open
Watts Loss

23.5
Phase

3
Hertz (Hz)

50/60
Brand

TCI
Manufacturer

TCI
Temp Rise

135
Model

Input Reactor
Dimensions
  • Height: 3.8 in
  • Width: 4.56 in
  • Depth: 2.0 in
Weight 1.43 lbs
