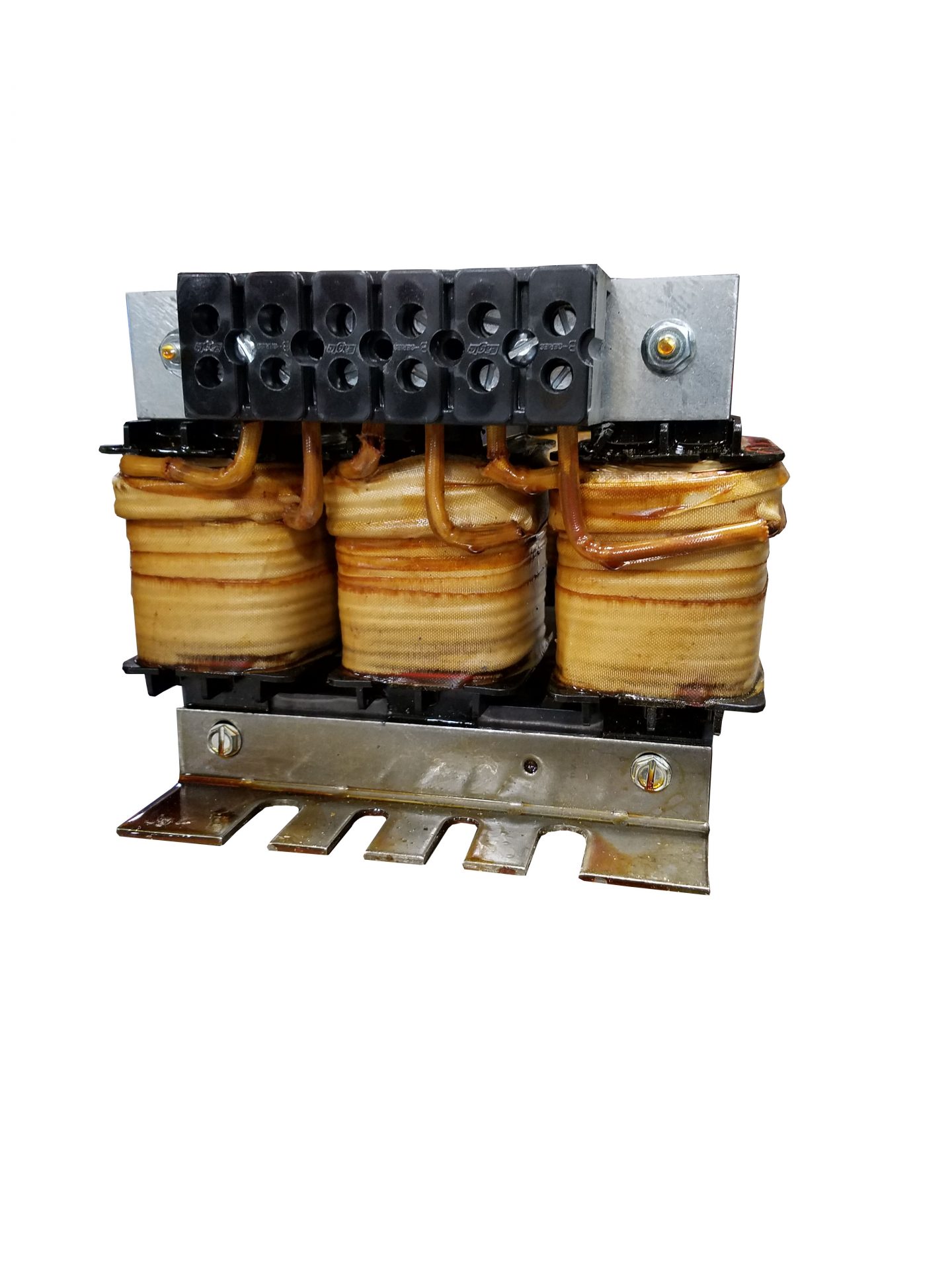

KDRE42HV

KDR, 690V, 32A, 30HP, 3 Phase, Open, Input Line Inductor, High Impedance, UL Recognized

SKU: KDRE42HV Categories: ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF)

Additional information

Specifications

Impedance Value

5% High Z
Rated Voltage

690
Horsepower (HP)

30.0
Amps

32
Impedance %

5%
DIN Rail Option

None
UL

UL Recognized
kVAR

0
Enclosure Type

Open
Watts Loss

140.0
Phase

3
Hertz (Hz)

50/60
Country of Origin

US
RoHS Indicator

Compliant
Temp Rise

135
Term Type

RL
Model

Input Reactor
Mounting Width

7.2
Mounting Depth

5.1
Dimensions
  • Height: 5.6 in
  • Width: 7.2 in
  • Depth: 5.1 in
Weight 16.0 lbs
