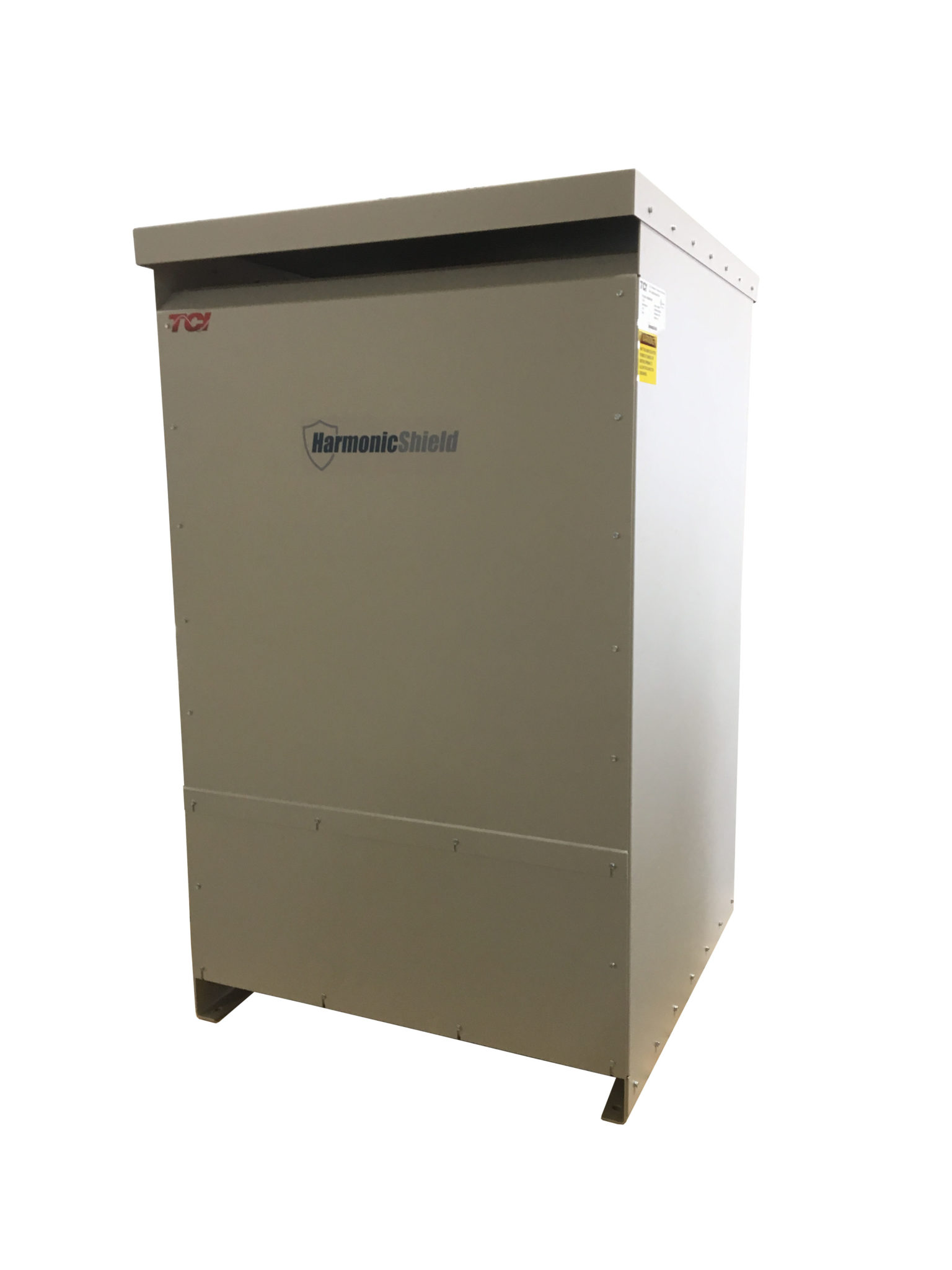

HSD0500AW31000

TCI, HSD, 500HP, 480/3/60,UL Type 3R, Contactor Version.

SKU: HSD0500AW31000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF) Dimensions and Ratings Table (PDF) Lug Kit (PDF) Lug Kit (DXF)

Additional information

Specifications

Rated Voltage

480
Horsepower (HP)

500.0
Amps

637
UL

UL Listed
kVAR

150
Enclosure Type

UL Type 3R
Watts Loss

3100.0
Phase

3
Hertz (Hz)

60
Isolation Contactor

Contactor
Connectivity

None
Lug Options

None
Brand

TCI
Manufacturer

TCI
Temp Rise

0
Model

Standard
Dimensions
  • Height: 60.11 in
  • Width: 36.7 in
  • Depth: 44.55 in
Weight 1140.0 lbs
