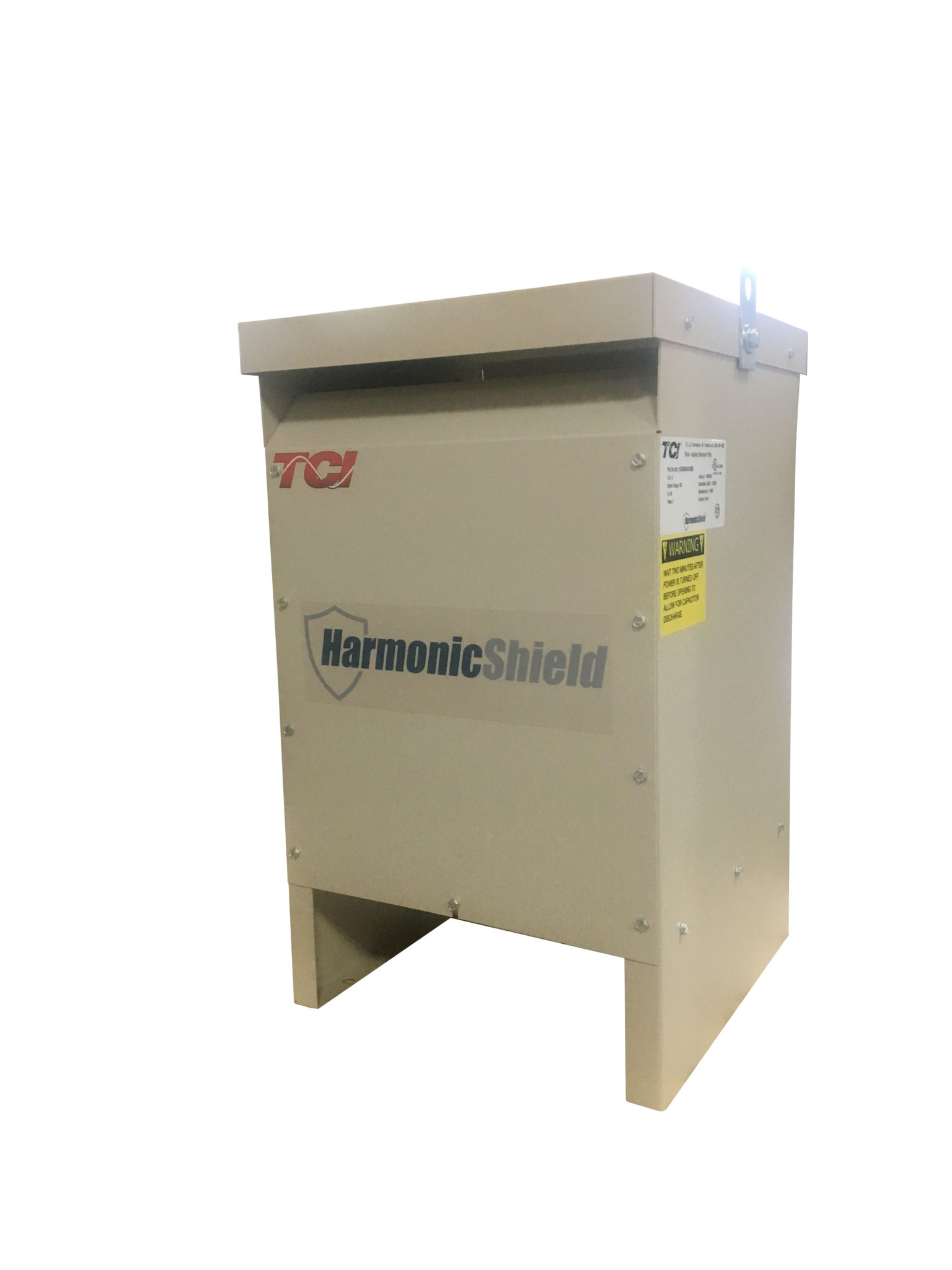

HSD0010AW11010

TCI, HSD, 10HP, 480/3/60,UL Type 1, PQconnect Option, Contactor Version, Standard Version.

SKU: HSD0010AW11010 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF) Dimensions and Ratings Table (PDF)

Additional information

Specifications

Rated Voltage

480
Hertz (Hz)

60
Horsepower (HP)

10
Phase

3
Amps

16
UL

UL Listed
Enclosure Type

UL Type Type1
Watts Loss

175
Isolation Contactor

Contactor
Dimensions
  • Height: 27 in
  • Width: 16.4 in
  • Depth: 16.8 in
Weight 80 lbs
