HGP0450CW3C1000

HGP0450CW3C1000

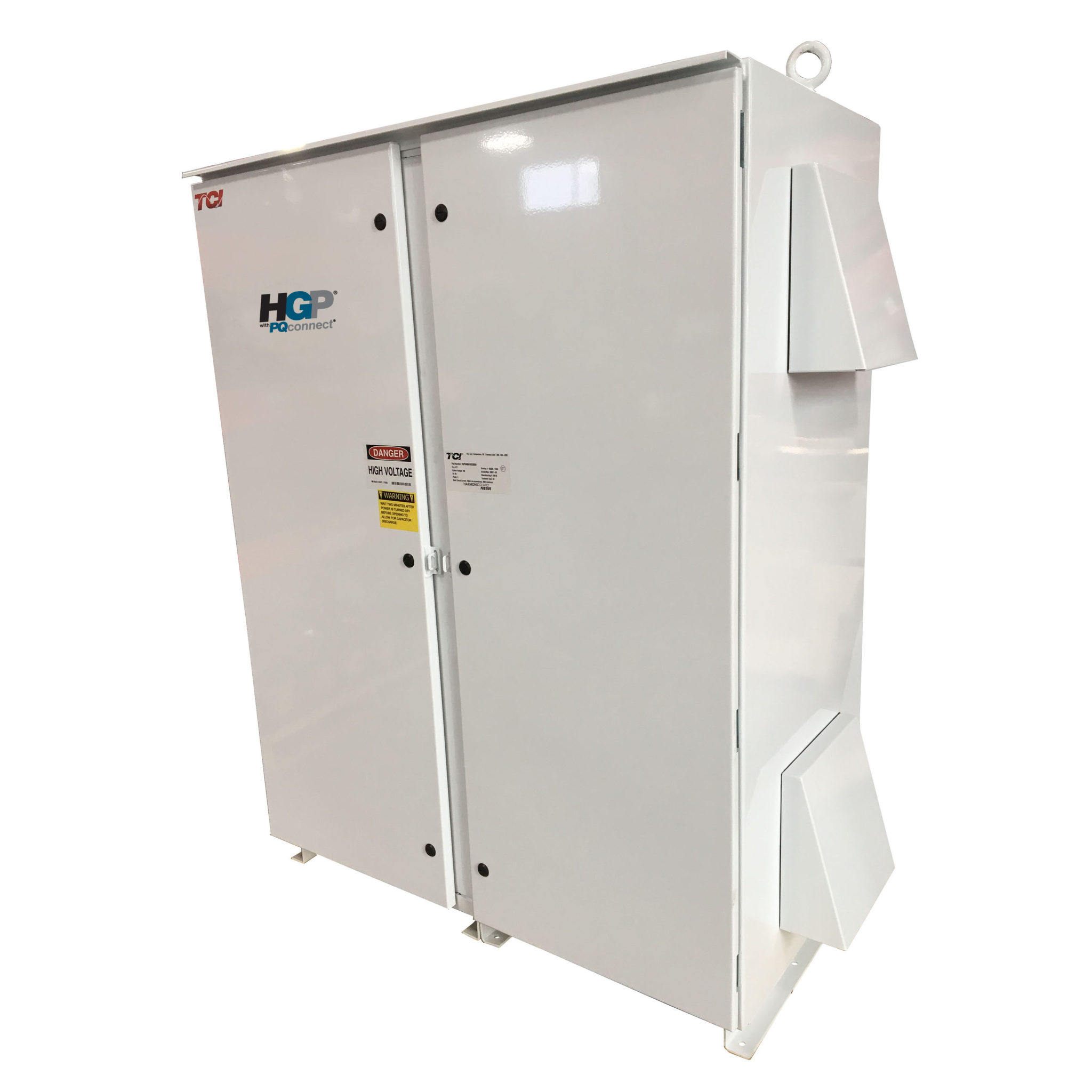

HGP, 600V, 450HP, 3 Phase, 60 Hz, Type 3R, Passive Harmonic Filter, Contactor, PQconnect Option

SKU: HGP0450CW3C1000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF)

Additional information

Specifications

Rated Voltage 600
Horsepower (HP) 450
Amps 412
Enclosure Type UL Type 3R
Watts Loss 2010
Phase 3
Hertz (Hz) 60
Isolation Contactor Contactor
Connectivity PQconnect w/ Modbus RTU
Model Standard
Dimensions
  • Height: 65.69 in
  • Width: 57.42 in
  • Depth: 26.14 in
Weight 986 lbs
