HGP0040CW3C1000

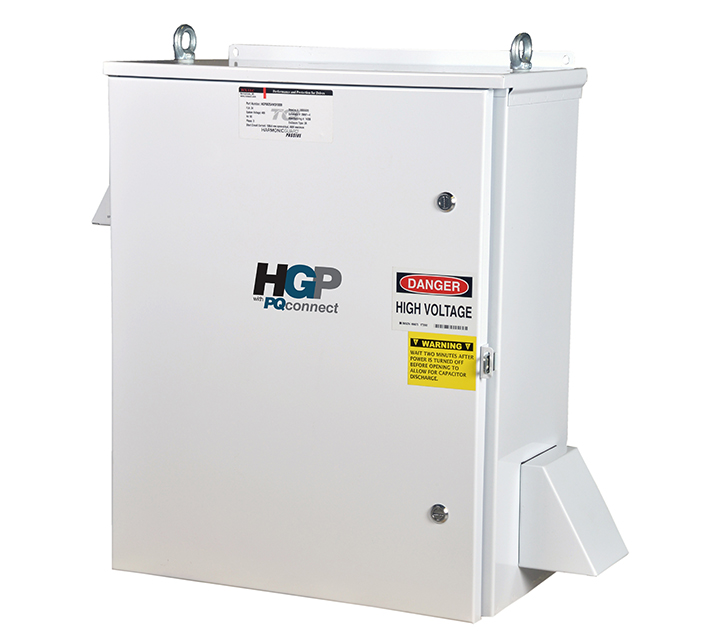

HGP, 600V, 40HP, 3 Phase, 60 Hz, Type 3R Passive Harmonic Filter, Contactor, PQconnect Option

SKU: HGP0040CW3C1000 Categories: , ,

View PDF

Request More Info

Documents

Brochure (PDF) IOM (PDF) Drawing (PDF) Drawing (DXF) Schematic (PDF) Schematic (DXF)

Additional information

Specifications

Rated Voltage

600
Horsepower (HP)

40.0
Amps

41
kVAR

15
Enclosure Type

UL Type 3R
Watts Loss

480.0
Phase

3
Hertz (Hz)

60
RoHS Indicator

Compliant
Isolation Contactor

Contactor
Connectivity

PQconnect w/ Modbus RTU
Temp Rise

0
Model

Standard
Dimensions
  • Height: 38.6 in
  • Width: 39.5 in
  • Depth: 13.5 in
Weight 243.0 lbs
