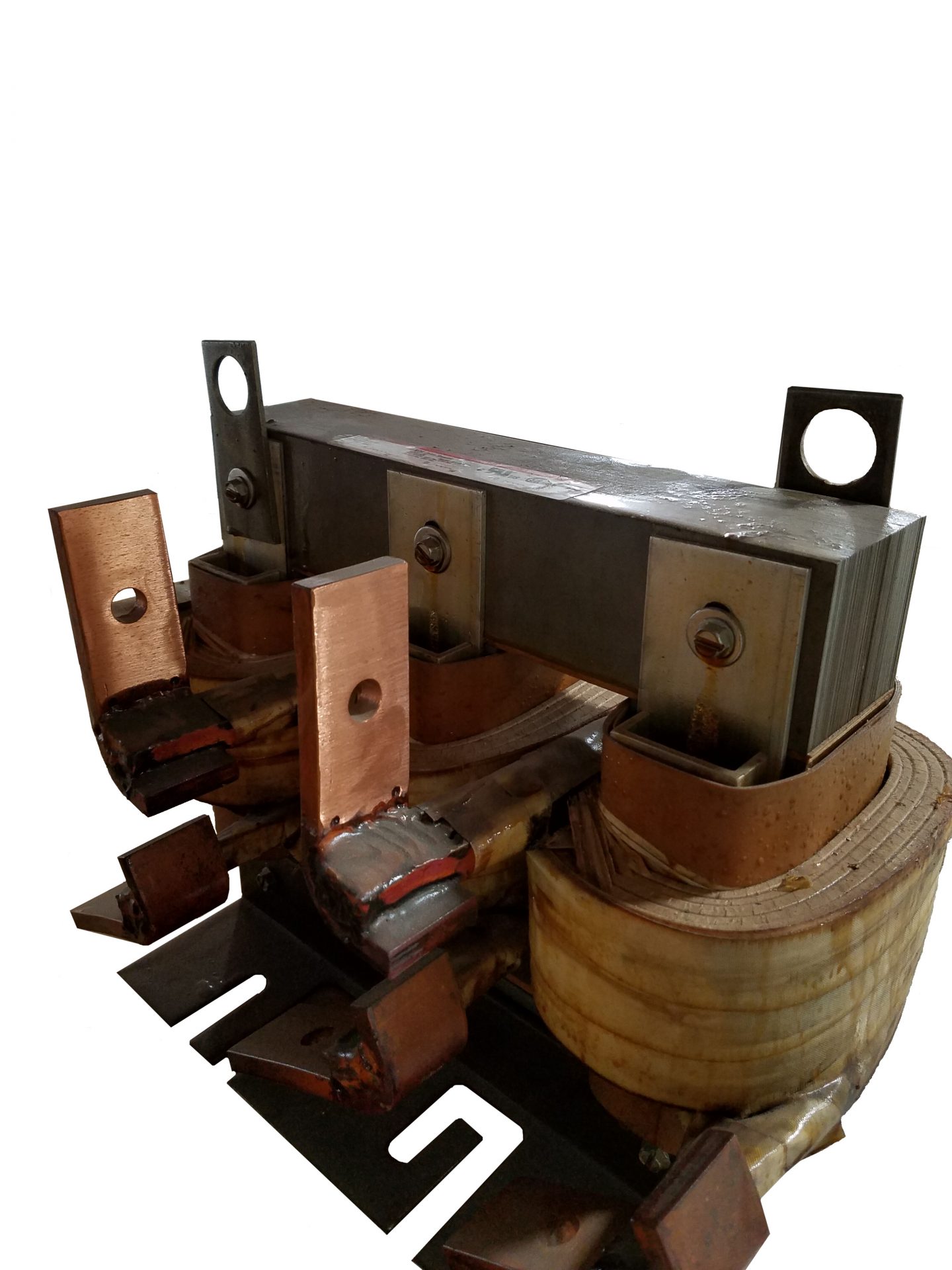

KDRL46HV
KDR, 690V, 260A, 250HP, 3 Phase, Open, Input Line Inductor, High Impedance, UL Recognized
Request More InfoAdditional information
Specifications
| Amps | 260 |
|---|---|
| Country of Origin | US |
| DIN Rail Option | None |
| Enclosure Type | Open |
| Hertz (Hz) | 50/60 |
| Horsepower (HP) | 250 |
| Impedance % | 5% |
| Impedance Value | 5% High Z |
| Model | Input Reactor |
| Mounting Depth | 10.00 |
| Mounting Width | 15 |
| Phase | 3 |
| Rated Voltage | 690 |
| Temp Rise | 155 |
| Term Type | CB |
| UL | UL Recognized |
| Watts Loss | 466 |
| Dimensions |
|
| Weight | 95 lbs |
